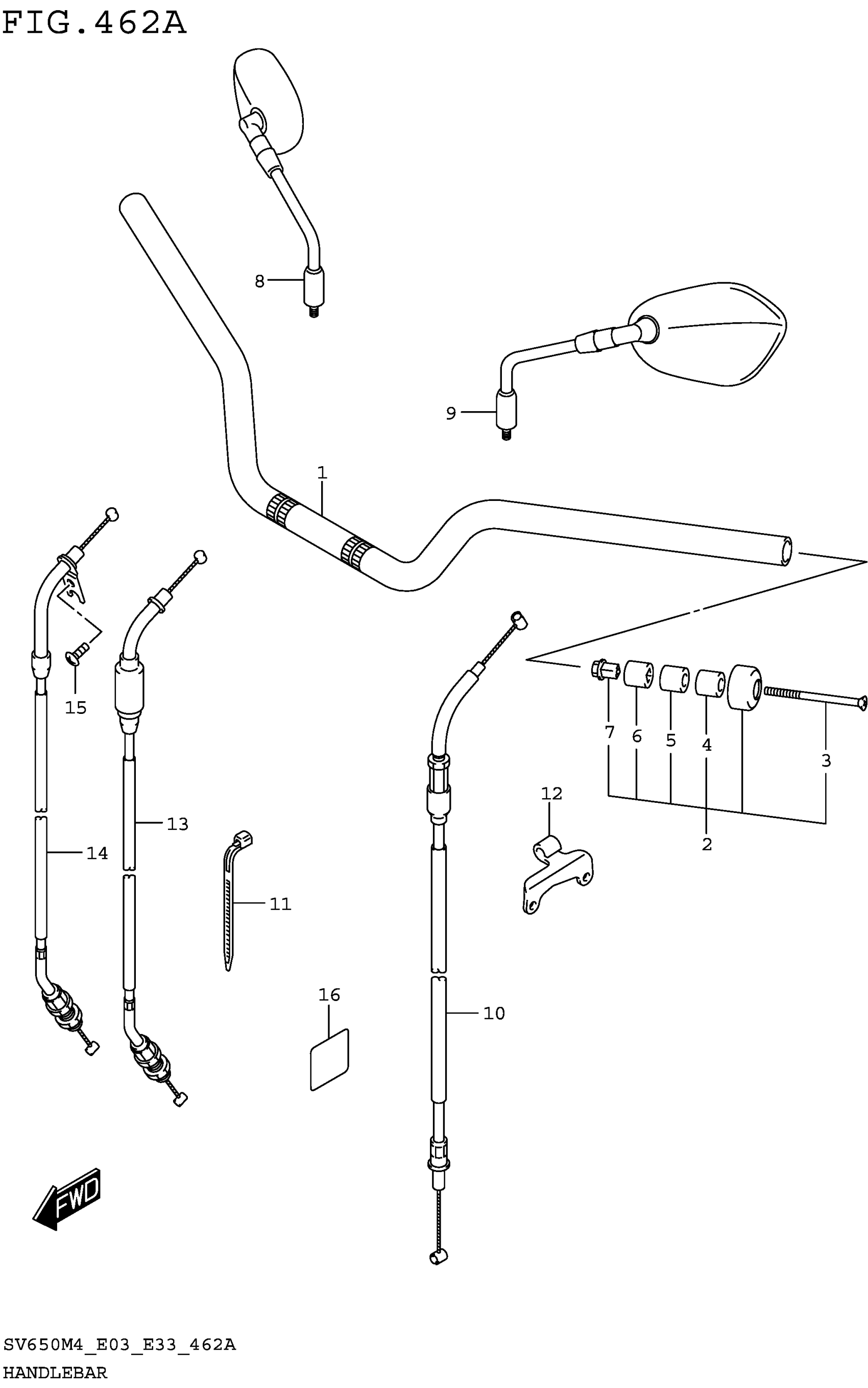

Suzuki SV650AM4(E28) (2024) HANDLEBAR (SV650M4 E03) Diagram

#

Description
Price

1

HANDLEBAR (BLACK)

56111-44H12-YAP

$145.92

2

BALANCER SET,HANDLEBAR

56200-41831

$36.28

3

.SCREW

02122-0670B

$3.72

4

.EXPANDER,HANDLE BALANCER

56272-42F00

$5.45

5

.SPACER (6.5X16X15)

09180-06161

$6.53

6

.EXPANDER,HANDLE BALANCER

56272-10G01

$4.72

7

.NUT,HANDLE BALANCER

56273-10G10

$8.65

8

MIRROR ASSY,REAR VIEW,R

56500-08J12

$116.17

9

MIRROR ASSY,REAR VIEW,L

56600-08J12

$111.82

10

CABLE ASSY,CLUTCH

58200-44H10

$49.37

11

CLAMP (L:165)

09407-18402

$2.19

12

STOPPER,CLUTCH CABLE

58634-44H00

$15.42

13

CABLE ASSY,THROTTLE NO.1

58300-44H20

$41.97

14

CABLE ASSY,THROTTLE NO.2

58300-44H30

$39.57

15

SCREW

02142-0510B

$1.78

16

PROTECTOR (25X25X0.2)

87873-56K50

$9.90

17

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.462B(1-L-7 ) HANDLEBAR (SV650M4 E33) FIG.462C(1-L-8 ) HANDLEBAR (SV650AM4 E28) FIG.462D(1-L-9 ) HANDLEBAR (SV650AM4 E33) FIG.462E(1-L-10) HANDLEBAR (SV650XAM4 E28)
