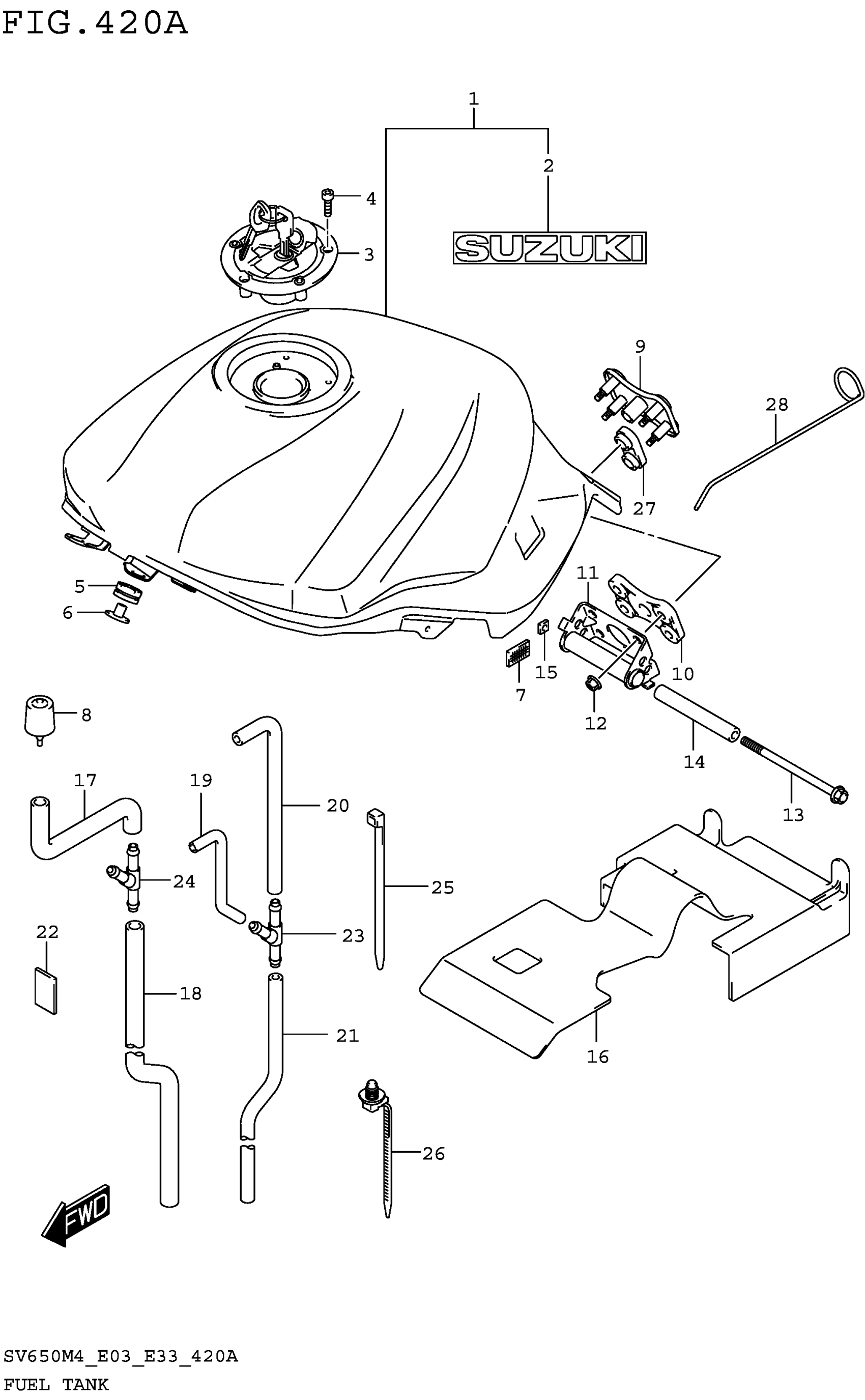

Suzuki SV650AM4(E28) (2024) FUEL TANK (SV650M4 E03) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL (BLACK) | FOR YVB

44100-18K61-YVB

$943.77

1-2

TANK ASSY,FUEL (BLUE) | FOR QT8

44100-18K61-QT8

$943.77

1-3

TANK ASSY,FUEL (GRAY) | FOR BTH

44100-18K61-YUD

$943.77

2-1

.EMBLEM (GRAY) | FOR YVB

68111-47C10-YLF

$15.37

2-2

.EMBLEM,SUZUKI (SILVER) | FOR QT8

68111-47C10-YD8

$22.97

2-3

.EMBLEM,SUZUKI (BLACK) | FOR BTH

68111-47C10-YVB

$14.95

3

CAP SET,FUEL TANK FILLER

44200-17840

$166.45

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

5

CUSHION,FUEL TANK FRONT

44511-18K00

$6.47

6

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

7

FASTENER (33X25X2.6)

44572-13G00

$11.07

8

CUSHION,FUEL TANK RR

44542-29G01

$7.72

9

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

10

CUSHION,FUEL TANK RR LWR

44542-18K00

$17.95

11

BRACKET,FUEL TANK RR

44530-44H00

Unavailable

12

NUT

08319-3106A

$2.03

13

BOLT (6X100)

09103-06060

$2.50

14

SPACER,FUEL TANK

44561-35F00

$13.88

15

NUT

08318-1106A

Unavailable

16

SHEET,HEAT SHIELD RUBBER

44191-18K00

$57.25

17

HOSE,FUEL TANK DRAIN NO.1

44423-18K01

$9.62

18

HOSE,FUEL TANK DRAIN NO.2

44423-18K11

$23.25

19

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$13.72

20

HOSE,FUEL TANK BREATHER NO.2

44424-18K02

$9.62

21

HOSE,FUEL TANK BRTHR NO.2

44424-18K11

$23.73

22

SHIELD,DRAIN HOSE HEAT

44427-18K00

Unavailable

23

3 WAY

09367-06007

$3.46

24

JOINT,DRAIN HOSE

09367-08010

Unavailable

25

CLAMP (L:145)

09407-14407

$3.57

26

CLAMP (L:170)

09407-17403

$4.91

27

CUSHION,FUEL TANK RR UPR

44541-18K00

Unavailable

28

STAY, FUEL TANK | OPT

44560-23H00

$44.95

29

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.420B(1-I-9 ) FUEL TANK (SV650M4 E33) FIG.420C(1-I-10) FUEL TANK (SV650AM4 E28) FIG.420D(1-I-11) FUEL TANK (SV650AM4 E33) FIG.420E(1-I-12) FUEL TANK (SV650XAM4 E28)

SPECIAL NOTE

Unavailable
