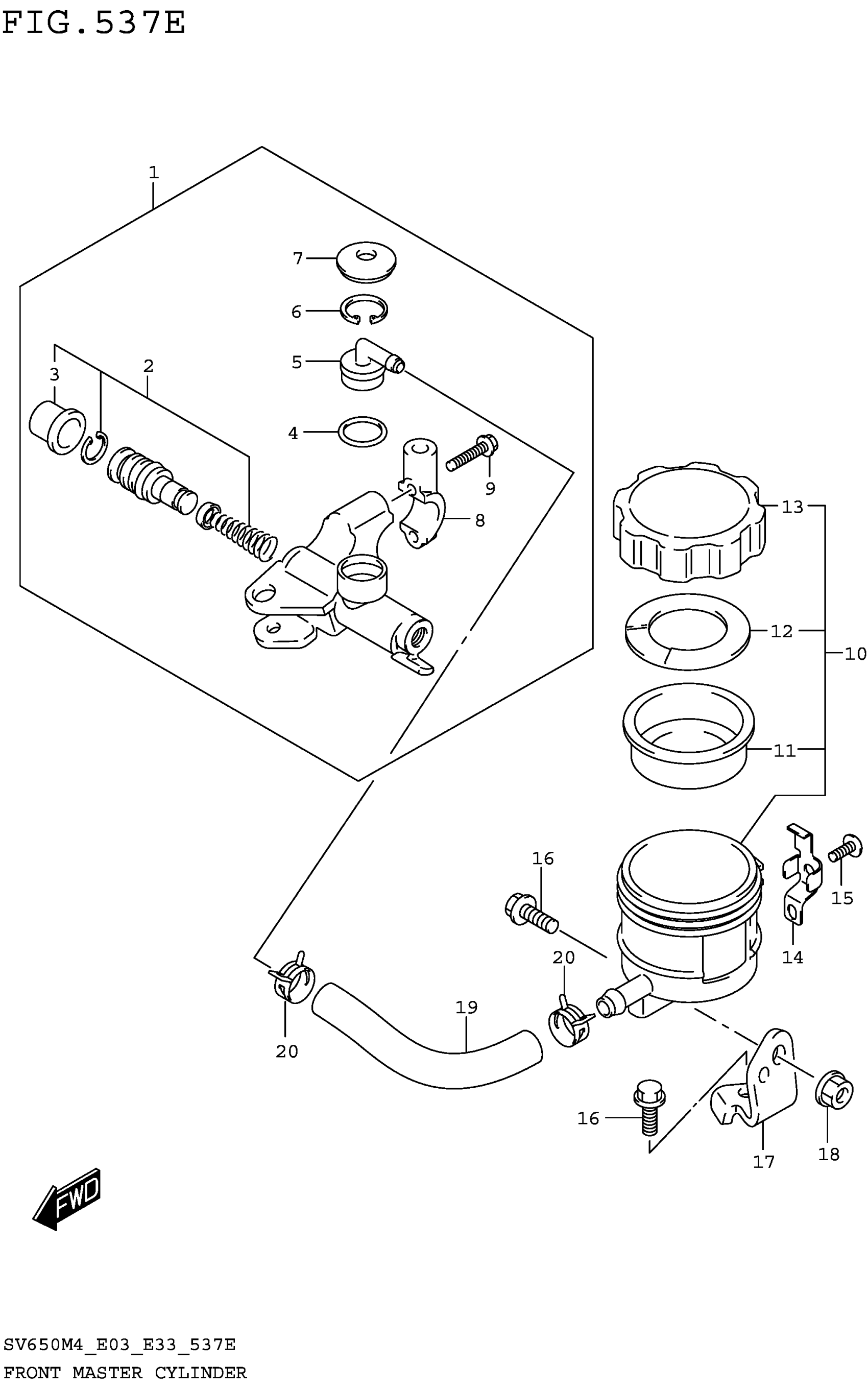

Suzuki SV650AM4(E28) (2024) FRONT MASTER CYLINDER (SV650XAM4 E28) Diagram

Description

Price

CYLINDER ASSY,FRONT MASTER

59600-18G10

$273.65

.PISTON & CUP SET

59600-45870

$52.73

..BOOT

59666-44300

$5.80

.O-RING

69686-34200

$2.93

.CONNECTOR

69672-00B20

$7.01

.CIRCLIP

69674-00B20

$3.97

.COVER,DUST

59673-17C00

$8.65

.HOLDER

59671-32F00

$19.52

.BOLT (6X22)

59675-02FA0

$3.82

TANK ASSY,FR RESERVOIR

59740-47H10

$56.05

.DIAPHRAGM

59667-18441

$10.28

.PLATE,DIAPHRAGM

59668-18441

$4.52

.CAP

59669-47H00

$23.78

PLATE,RESERVOIR TANK CAP

59743-17C00

$9.31

SCREW

02142-0410A

$1.49

BOLT (6X16)

09103-06526

$1.71

BRACKET,FR RESERVOIR TANK

59751-18K00

$13.10

NUT (6X12)

08316-1006A

$2.19

HOSE,FRONT RESERVOIR TANK This part replaces 59731-01H00.

59731-47H00

$16.52

CLAMP,RESERVOIR TANK FR

59735-17C00

$4.93
