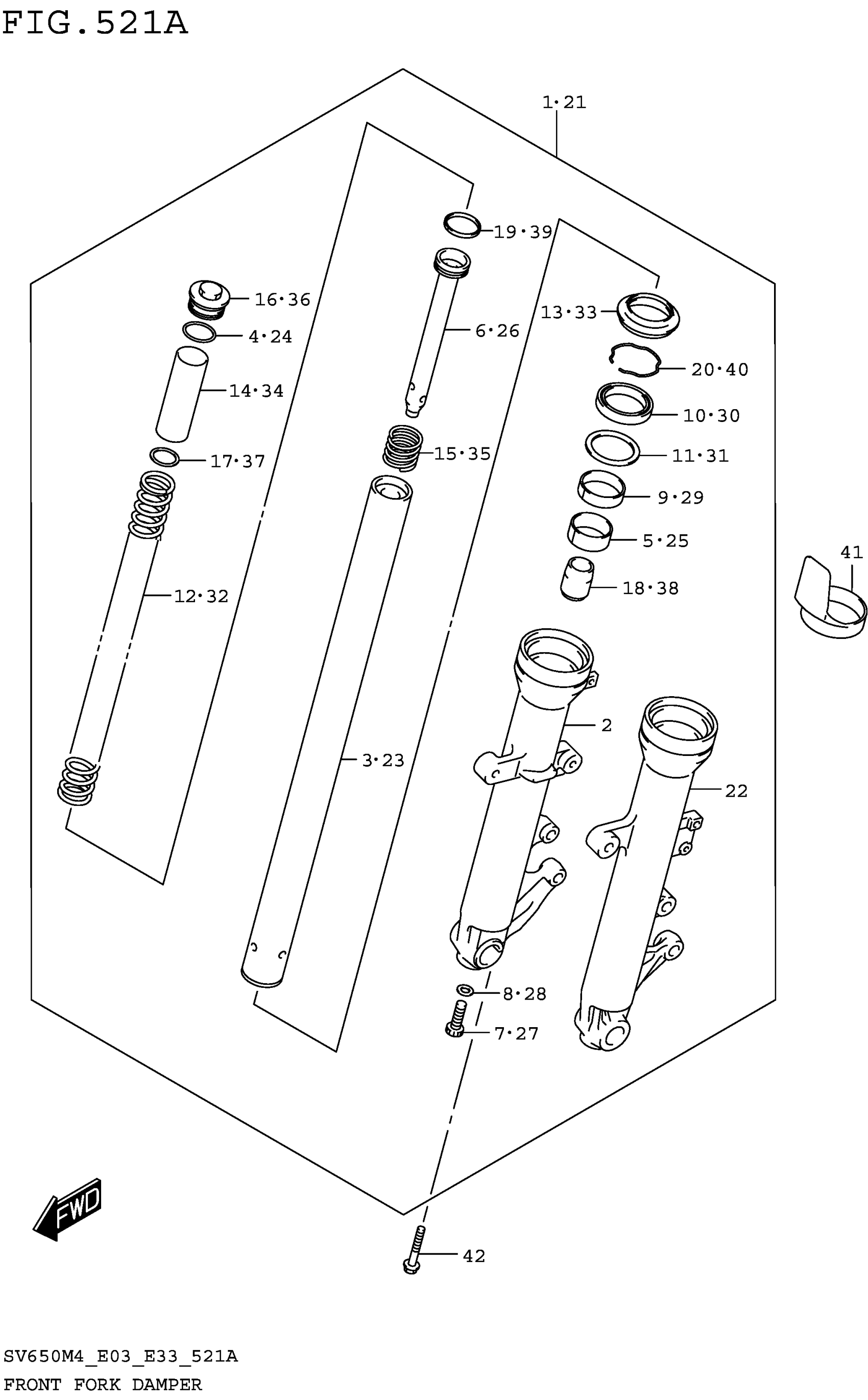

Suzuki SV650AM4(E28) (2024) FRONT FORK DAMPER (SV650M4 E03) Diagram

#

Description
Price

1

DAMPER ASSY,FR,R (BLACK)

51103-18K00-291

$815.17

2

.TUBE,OUTER RH (BLACK)

51130-18K00-291

$404.42

3

.TUBE,INNER

51110-18K00

$294.62

4

.O-RING

51117-12C00

$3.89

5

.BUSH,SLIDE

51121-44H00

$22.80

6

.CYLINDER

51146-17G20

Unavailable

7

.BOLT (8X18)

51147-06F10

$5.98

8

O RING This part replaces 51148-31030.

51148-36011

$3.56

9

.BUSH,GUIDE

51152-01H10

$18.25

10

.SEAL,OIL

51153-01H10

$26.91

11

.SPACER,SEAL

51168-38B00

$6.49

12

.SPRING,FRONT

51171-18K00

$29.45

13

.SEAL,DUST

51173-01H00

$11.64

14

.COLLAR,SPRING

51176-18K00

$7.27

15

.SPRING,REBOUND

51177-17G50

Unavailable

16

.BOLT,FORK

51189-47D50

$52.23

17

.JOINT,SPRING

51192-19C00

$5.02

18

.PIECE,OIL LOCK

51195-48B31

$30.22

19

.RING,PISTON

51196-12C00

$8.42

20

.RING,STOPPER

51556-38B00

$7.22

21

DAMPER ASSY,FR,L (BLACK)

51104-18K00-291

$815.17

22

.TUBE,OUTER LH (BLACK)

51140-18K00-291

$419.83

23

.TUBE,INNER

51110-18K00

$294.62

24

.O-RING

51117-12C00

$3.89

25

.BUSH,SLIDE

51121-44H00

$22.80

26

.CYLINDER

51146-17G20

Unavailable

27

.BOLT (8X18)

51147-06F10

$5.98

28

O RING This part replaces 51148-31030.

51148-36011

$3.56

29

.BUSH,GUIDE

51152-01H10

$18.25

30

.SEAL,OIL

51153-01H10

$26.91

31

.SPACER,SEAL

51168-38B00

$6.49

32

.SPRING,FRONT

51171-18K00

$29.45

33

.SEAL,DUST

51173-01H00

$11.64

34

.COLLAR,SPRING

51176-18K00

$7.27

35

.SPRING,REBOUND

51177-17G50

Unavailable

36

.BOLT,FORK

51189-47D50

$52.23

37

.JOINT,SPRING

51192-19C00

$5.02

38

.PIECE,OIL LOCK

51195-48B31

$30.22

39

.RING,PISTON

51196-12C00

$8.42

40

.RING,STOPPER

51556-38B00

$7.22

41

PROTECTOR

51201-32F00

$20.95

42

BOLT This part replaces 51321-10F00.

07130-08307

$3.89

43

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.521B(2-B-12) FRONT FORK DAMPER (SV650M4 E33) FIG.521C(2-B-14) FRONT FORK DAMPER (SV650AM4 E28) FIG.521D(2-C-2 ) FRONT FORK DAMPER (SV650AM4 E33) FIG.521E(2-C-4 ) FRONT FORK DAMPER (SV650XAM4 E28)

SPECIAL NOTE

Unavailable
