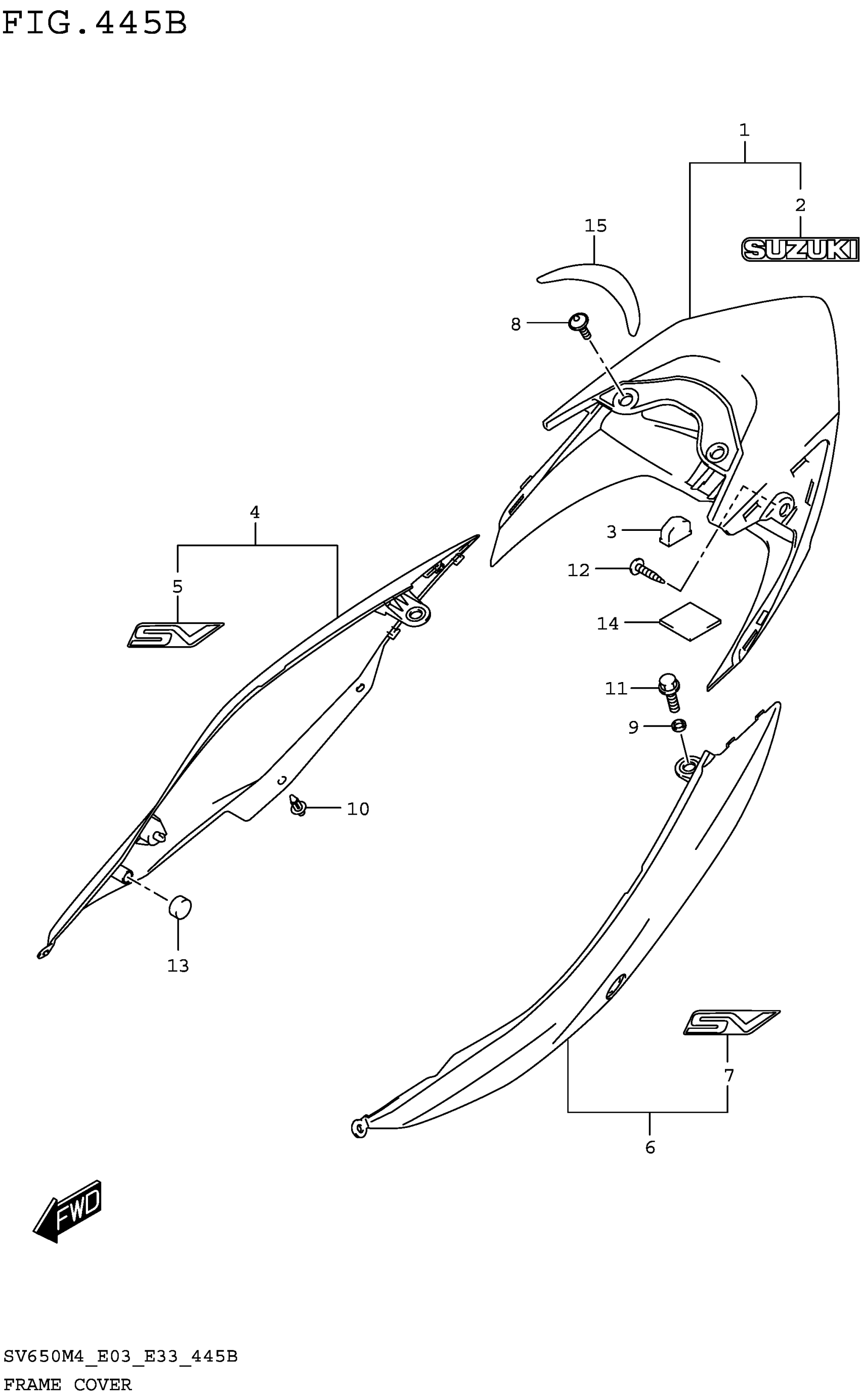

Suzuki SV650AM4(E28) (2024) FRAME COVER (SV650M4 E33) Diagram

#

Description
Price

1

COVER,FRAME RR CTR (BLACK)

47310-18K01-4TX

$182.83

2

.EMBLEM,"SUZUKI" (BLACK)

68171-28H11-KGL

$8.15

3

CUSHION,FRAME COVER CTR

47315-18K00

$12.73

4-1

COVER,FRAME REAR,R (BLACK) | FOR YVB

47410-18K21-6UX

$87.10

4-2

COVER,FRAME REAR,R (BLUE) | FOR QT8

47410-18K21-QT8

$74.04

4-3

COVER,FRAME REAR,R (BLACK) | FOR BTH

47410-18K21-44X

$87.10

5-1

.EMBLEM,"SV" (SILVER) | FOR QT8,YVB

68111-18K00-YMC

$11.38

5-2

.EMBLEM,"SV" (RED) | FOR BTH

68111-18K00-YYG

$11.38

6-1

COVER,FRAME REAR,L (BLACK) | FOR YVB

47510-18K21-6UX

$87.10

6-2

COVER,FRAME REAR,L (BLUE) | FOR QT8

47510-18K21-QT8

$74.04

6-3

COVER,FRAME REAR,L (BLACK) | FOR BTH

47510-18K21-44X

$87.10

7-1

.EMBLEM,"SV" (SILVER) | FOR QT8,YVB

68111-18K00-YMC

$11.38

7-2

.EMBLEM,"SV" (RED) | FOR BTH

68111-18K00-YYG

$11.38

8

BOLT (5X13)

09139-05074

$2.61

9

SPACER (8.5X12X2.5)

09180-08052

Unavailable

10

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

11

BOLT (8X12)

01550-0812A

$2.32

12

SCREW

03541-0510A

$1.49

13

CUSHION (14X20X9)

09329-14003

$2.72

14

PROTECTOR (50X50X5) This part replaces 33652-24B00.

33652-20C00

$2.99

15

TAPE,FRAME COVER RR CTR

47312-18K00

$11.53
