Description

Price

1

BRACKET,FOOTREST RH

43510-18K00

$165.40

2

BRACKET,FOOTREST LH

43521-18K00

$163.60

3

BOLT (8X23)

09106-08186

$3.42

4

BAR,FRONT FOOTREST,R This part replaces 43516-18K00.

43516-18K20

$29.12

5

BAR,FRONT FOOTREST,L This part replaces 43526-18K00.

43526-18K20

$29.12

6

PIN

09208-08019

$2.79

7

SPRING

09448-14046

$4.17

8

E-RING

08332-1106A

$1.49

9

BOLT,BANK SENSOR

43576-48B20

$12.50

10

BRACKET,PILLION FTRST RH

43810-18K00

$166.70

11

BRACKET,PILLION FTRST LH

43820-18K00

$148.65

12

BAR,PILLION FOOTREST,R

43611-37H20

$44.65

13

BAR,PILLION FOOTREST,L

43621-37H20

$43.18

14

PIN

09208-08017

$3.37

15

SPRING

09440-05005

$1.58

16

BALL

06111-07004

$1.49

17

PLATE,PILLION FOOTREST

43816-01H10

$7.85

18

E-RING

08332-1106A

$1.49

19

BOLT (8X40)

09106-08074

$3.85

20

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.415B(1-I-3 ) FOOTREST (SV650M4 E33) FIG.415C(1-I-4 ) FOOTREST (SV650AM4 E28) FIG.415D(1-I-5 ) FOOTREST (SV650AM4 E33) FIG.415E(1-I-6 ) FOOTREST (SV650XAM4 E28)

SPECIAL NOTE

Unavailable

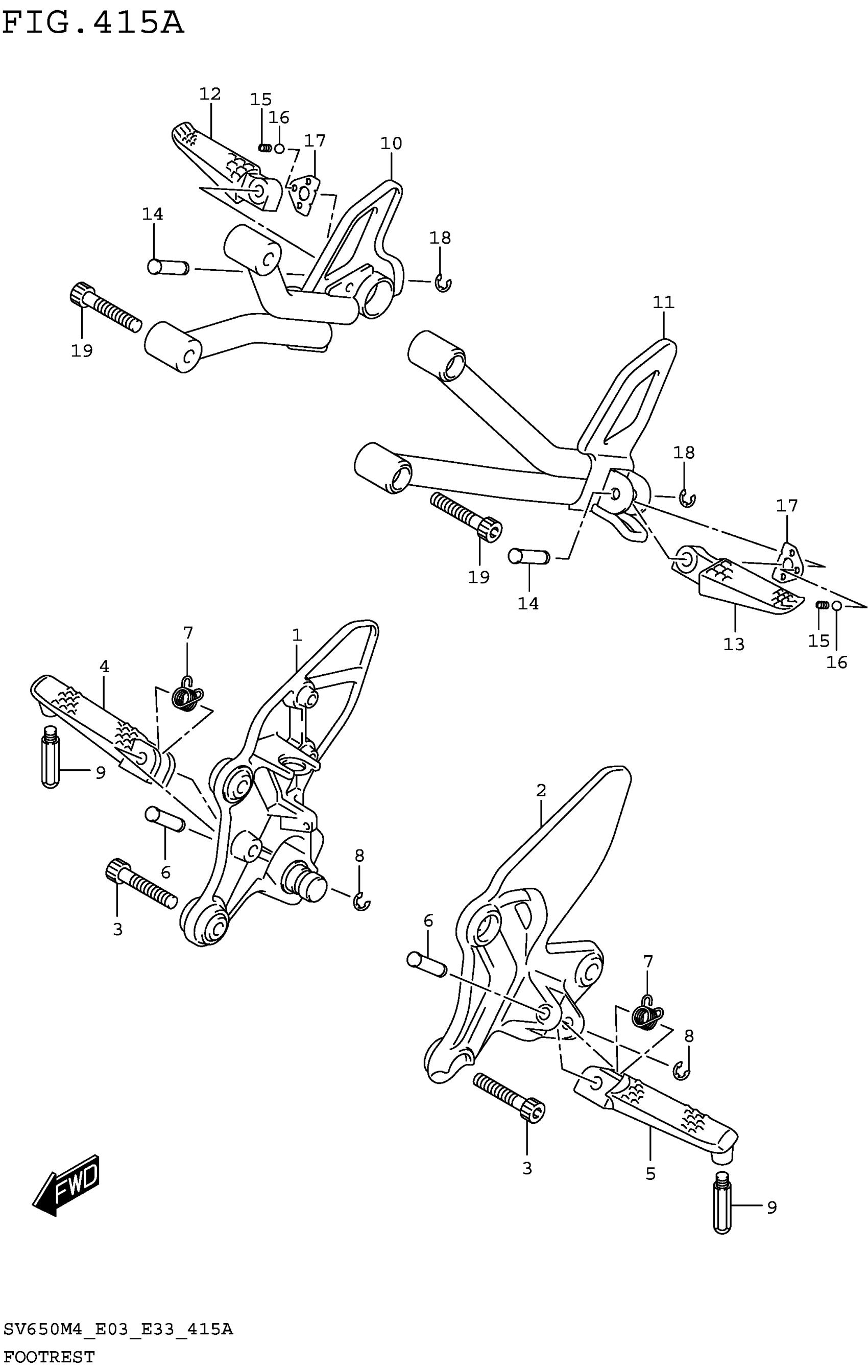

Suzuki SV650AM4(E28) (2024) FOOTREST (SV650M4 E03) Diagram

BRACKET,FOOTREST RH

BRACKET,FOOTREST LH

BOLT (8X23)

BAR,FRONT FOOTREST,R This part replaces 43516-18K00.

BAR,FRONT FOOTREST,L This part replaces 43526-18K00.

PIN

SPRING

E-RING

BOLT,BANK SENSOR

BRACKET,PILLION FTRST RH

BRACKET,PILLION FTRST LH

BAR,PILLION FOOTREST,R

BAR,PILLION FOOTREST,L

PIN

SPRING

BALL

PLATE,PILLION FOOTREST

E-RING

BOLT (8X40)

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.415B(1-I-3 ) FOOTREST (SV650M4 E33) FIG.415C(1-I-4 ) FOOTREST (SV650AM4 E28) FIG.415D(1-I-5 ) FOOTREST (SV650AM4 E33) FIG.415E(1-I-6 ) FOOTREST (SV650XAM4 E28)
