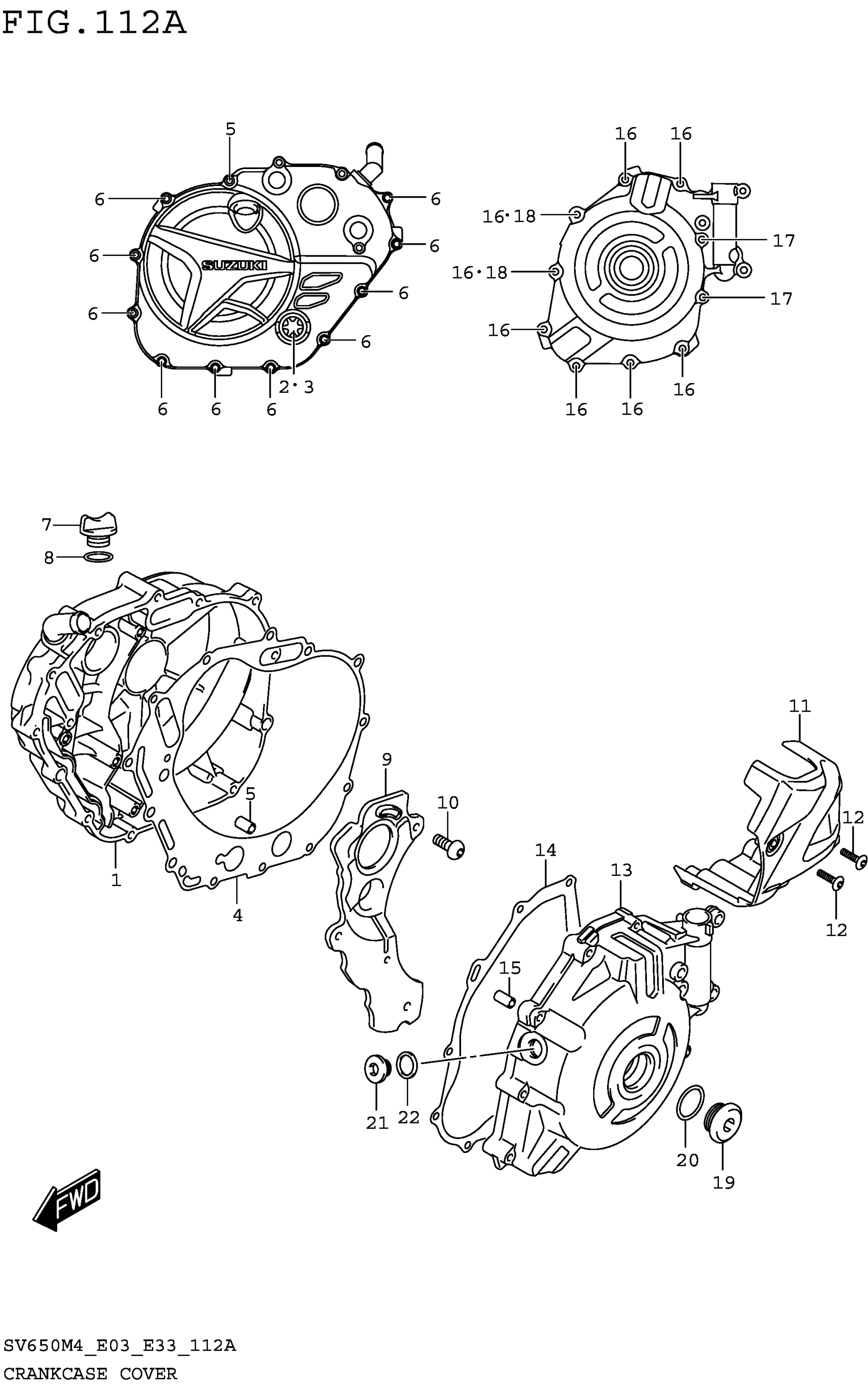

Suzuki SV650AM4(E28) (2024) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11340-18K00

$340.82

2

.LENS,OIL LEVEL CHECK

11971-33210

$18.20

3

.CIRCLIP

08331-4130A

$2.70

4

.GASKET,CLUTCH COVER

11482-44H00

$18.76

5

PIN (8.5X18X2.3)

04211-09149

$1.65

6

BOLT (L:35)

09103-06530

$2.10

7

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

8

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

9

SEPARATOR,OIL

11343-44H01

$51.92

10

BOLT (6X12)

09106-06098

Unavailable

11

COVER,ENG SPROCKET

11360-18K00

$42.05

12

SCREW (6X25)

09139-06029

$5.36

13

COVER,MAGNETO

11351-44H10

$284.22

14

.GASKET,MAGNETO COVER

11483-19F00

$12.78

15

PIN (8.5X18X2.3)

04211-09149

$1.65

16

BOLT (L:35)

09103-06530

$2.10

17

BOLT (L:65)

09103-06536

$2.95

18

GASKET (5.8X13X1.2)

09168-06023

$2.35

19

PLUG

09259-26012

$11.09

20

O-RING (D:3.1,ID:22.7)

09280-22008

$2.27

21

PLUG (16X8)

09248-16012

$4.64

22

GASKET (16X22X2)

09168-16002

$1.91
