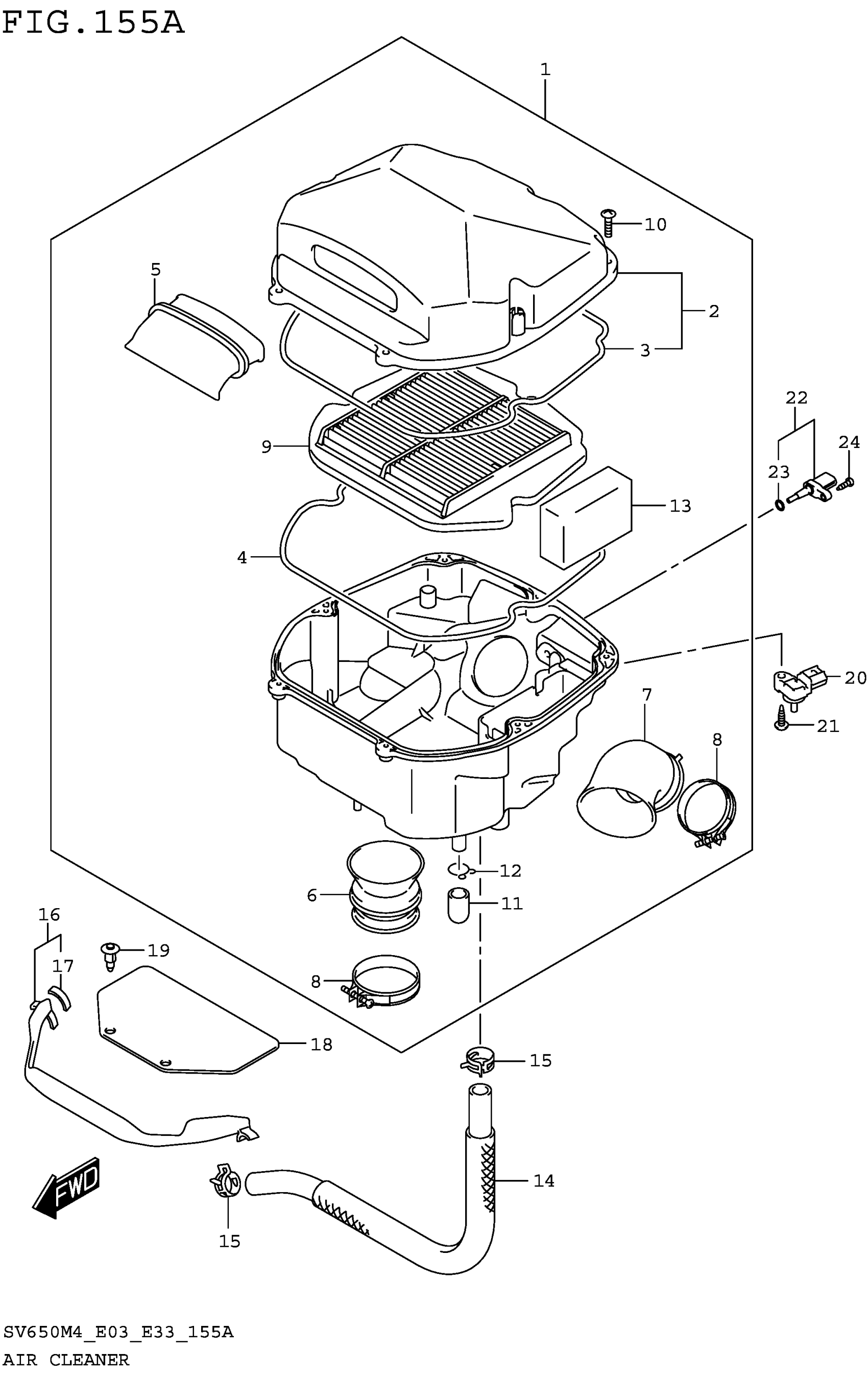

Suzuki SV650AM4(E28) (2024) AIR CLEANER (SV650M4 E03) Diagram

#

Description
Price

1

CLEANER ASSY,AIR

13700-18K01

$261.33

2

.CAP,AIR CLEANER

13740-44H00

$58.65

3

..GASKET

13746-44H00

$8.12

4

..GASKET

13746-44H00

$8.12

5

.TUBE,INLET

13891-18K01

$37.22

6

.TUBE,OUTLET A

13881-18K01

$25.78

7

.TUBE,OUTLET B

13882-18K01

$25.72

8

.CLAMP,OUTLET TUBE

13826-44H01

Unavailable

9

.FILTER,AIR CLEANER

13780-44H00

$40.16

10

SCREW

03541-0520A

$1.80

11

.PLUG

13859-41B10

$7.38

12

.CLIP (ID:14.5)

09401-14101

$2.34

13

.FILTER,BREATHER

13788-44H00

$12.23

14

TUBE,BREATHER

13850-18K01

$36.65

15

CLIP

09401-20405

$4.08

16

COVER,CLEANER INLET

13840-44H00

Unavailable

17

CUSHION (10X30X2)

44894-24A00

$1.72

18

SHEET,CLEANER INLET

13841-44H00

Unavailable

19

CLIP (7.6X25.7,BLACK)

09409-08308-5ES

$1.97

20

SENSOR,BOOST

18590-18K00

$315.08

21

SCREW

03541-0520A

$1.80

22

SENSOR,AIR TEMP

13650-41F10

$63.25

23

O-RING

13655-41F10

Unavailable

24

SCREW

03511-0516A

$1.86

25

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | FIG.155B(1-C-5 ) AIR CLEANER (SV650M4 E33) FIG.155C(1-C-6 ) AIR CLEANER (SV650AM4 E28) FIG.155D(1-C-7 ) AIR CLEANER (SV650AM4 E33) FIG.155E(1-C-8 ) AIR CLEANER (SV650XAM4 E28)

SPECIAL NOTE

Unavailable
