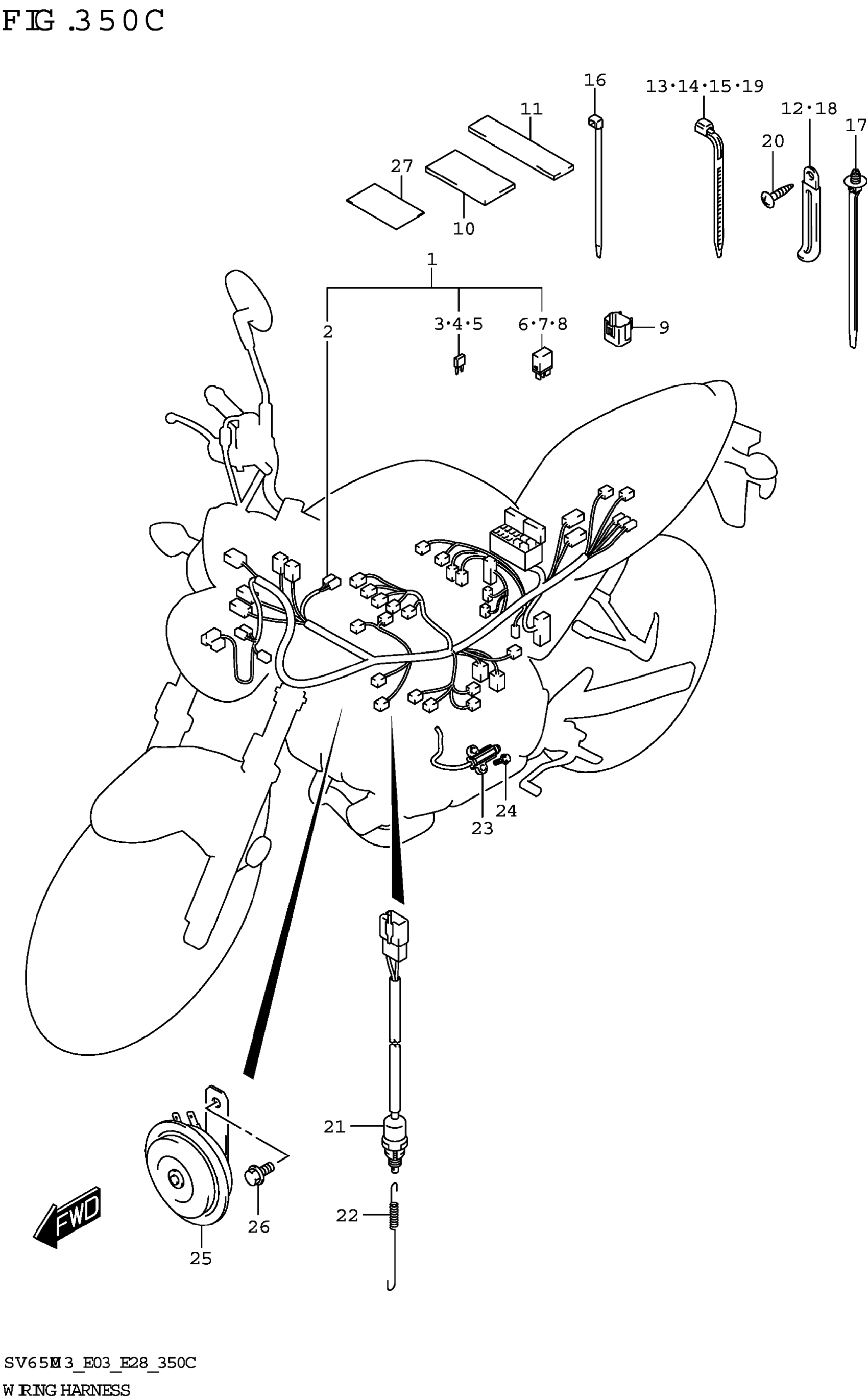

Suzuki SV650AM3 (2023) WIRING HARNESS (SV650A:E33) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-18KL0

$882.30

2

.COVER,SPEEDOMETER COUPLER

36618-35F00

$10.07

3

.FUSE (10A)

09481-10504

$2.06

4

.FUSE (15A)

09481-15504

$2.07

5

.FUSE (20A)

09481-20504

$1.92

6

.RELAY ASSY | FOR FUEL PUMP

38860-76F01

$34.37

7

.RELAY ASSY | FOR FAN MOTOR

38860-76F01

$34.37

8

.RELAY ASSY | FOR SIDE STAND

38860-76F01

$34.37

9

CAP,TS

36654-06J01

$13.85

10

PROTECTOR (30X60X3)

36920-08D00

Unavailable

11

PROTECTOR (30X70)

94474-22D00

Unavailable

12

CLAMP (L:45)

09404-06429

$1.83

13

CLAMP (L:125)

09407-14403

$2.26

14

CLAMP (L:165)

09407-18402

$2.19

15

CLAMP (L:190)

09407-19401

$3.05

16

CLAMP (L:145)

09407-14407

$3.57

17

CLAMP (L:170)

09407-17403

$4.91

18

CLAMP (L:80)

09404-06030

Unavailable

19

CLAMP (L:235)

09407-25401

$4.66

20

SCREW

03541-0412A

$1.49

21

SWITCH ASSY,STOP LAMP

37740-44H01

$19.90

22

SPRING

09443-06016

$3.30

23

SWITCH ASSY,SIDE STAND This part replaces 37840-25D01.

37840-25D02

$60.37

24

BOLT (6X20)

01550-0620A

$1.97

25

HORN ASSY

38500-18K00

Unavailable

26

BOLT (8X12)

01550-0812A

$2.32

27

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03
