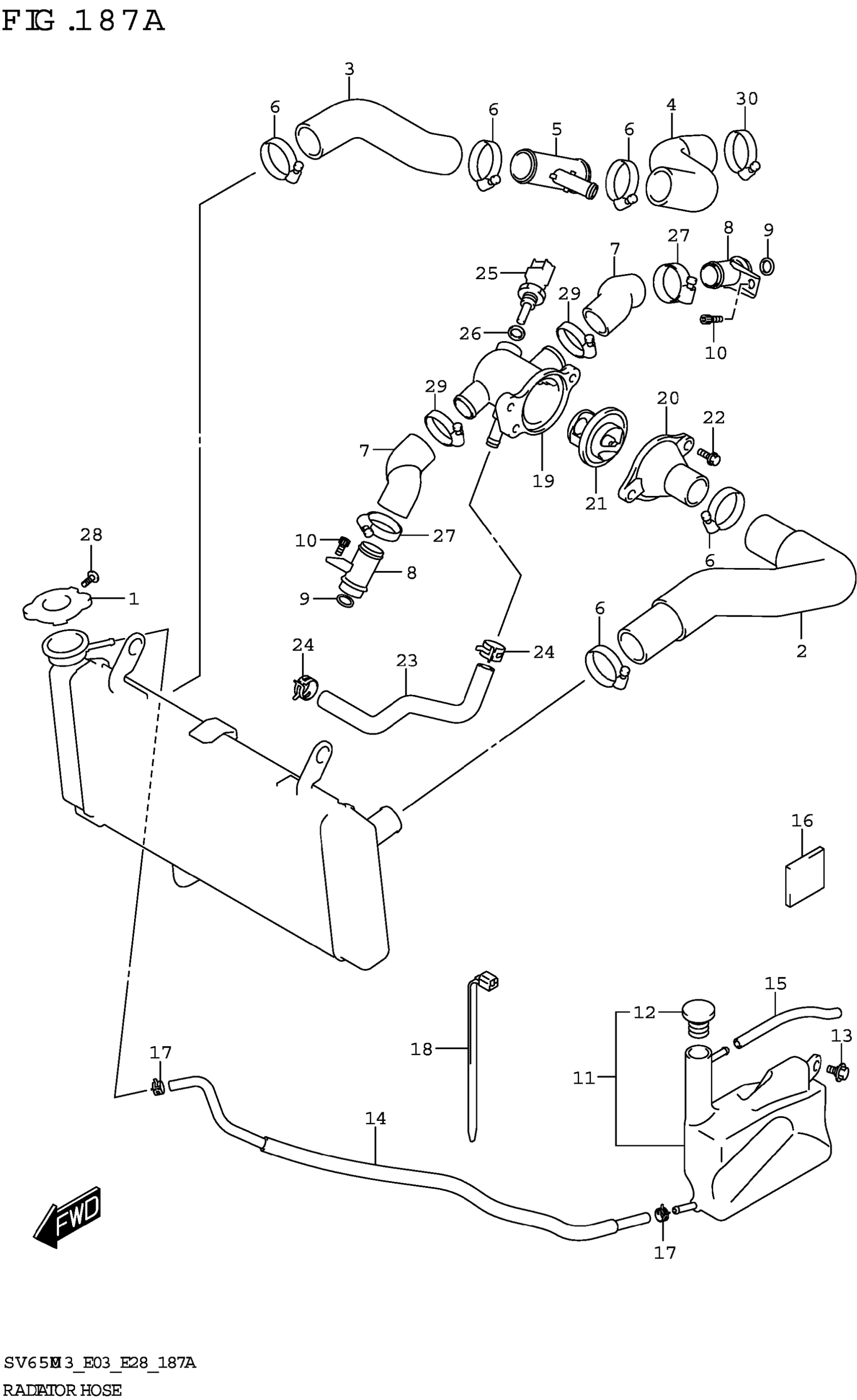

Suzuki SV650AM3 (2023) RADIATOR HOSE Diagram

#

Description
Price

1

CAP,RADIATOR (1.1)

17730-08D10

$52.07

2

HOSE,RADIATOR INLET

17851-44H00

$59.32

3

HOSE,RADIATOR OUTLET NO.1

17852-44H00

$23.07

4

HOSE,RADIATOR OUTLET NO.2

17854-18K00

$20.42

5

PIPE,WATER HOSE THREE WAY

17881-18K00

$8.05

6

CLAMP

09401-29001

$2.92

7

HOSE,CONNECTOR INLET

17853-19F00

$14.34

8

UNION,CONNECTOR HOSE

17890-06G20

$14.43

9

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

10

BOLT

07130-0612A

$2.50

11

TANK ASSY,RESERVOIR

17910-18K00

Unavailable

12

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

13

BOLT (6X12) This part replaces 09111-06063.

09111-06085

$4.54

14

HOSE,RSVR TANK INLET

17981-44H00

Unavailable

15

HOSE (5X9X600)

09352-50901-600

$8.06

16

CUSHION This part replaces 44281-29C00.

63191-25C00

$3.05

17

CLIP (ID:8.6)

09401-08411

$1.78

18

CLAMP (L:165)

09407-18402

$2.19

19

CONNECTOR,THERMOSTAT INLET

17662-02F11

$64.30

20

CAP,THERMOSTAT CONNECTOR

17663-17G00

$29.33

21

THERMOSTAT,WATER

17670-06G61

$25.77

22

BOLT (6X16)

09103-06526

$1.71

23

HOSE,CONNECTOR TO WTR PMP

17856-44H00

$20.65

24

CLIP

09401-12414

$3.26

25

SENSOR,TEMP

13650-49X00

$90.19

26

GASKET (12X17X1)

09168-12017

$1.95

27

CLAMP

09401-24002

$4.18

28

SCREW,RADIATOR CAP

17733-03D10

$2.60

29

CLAMP

09401-25001

$3.82

30

CLIP

09401-30003

$4.73
