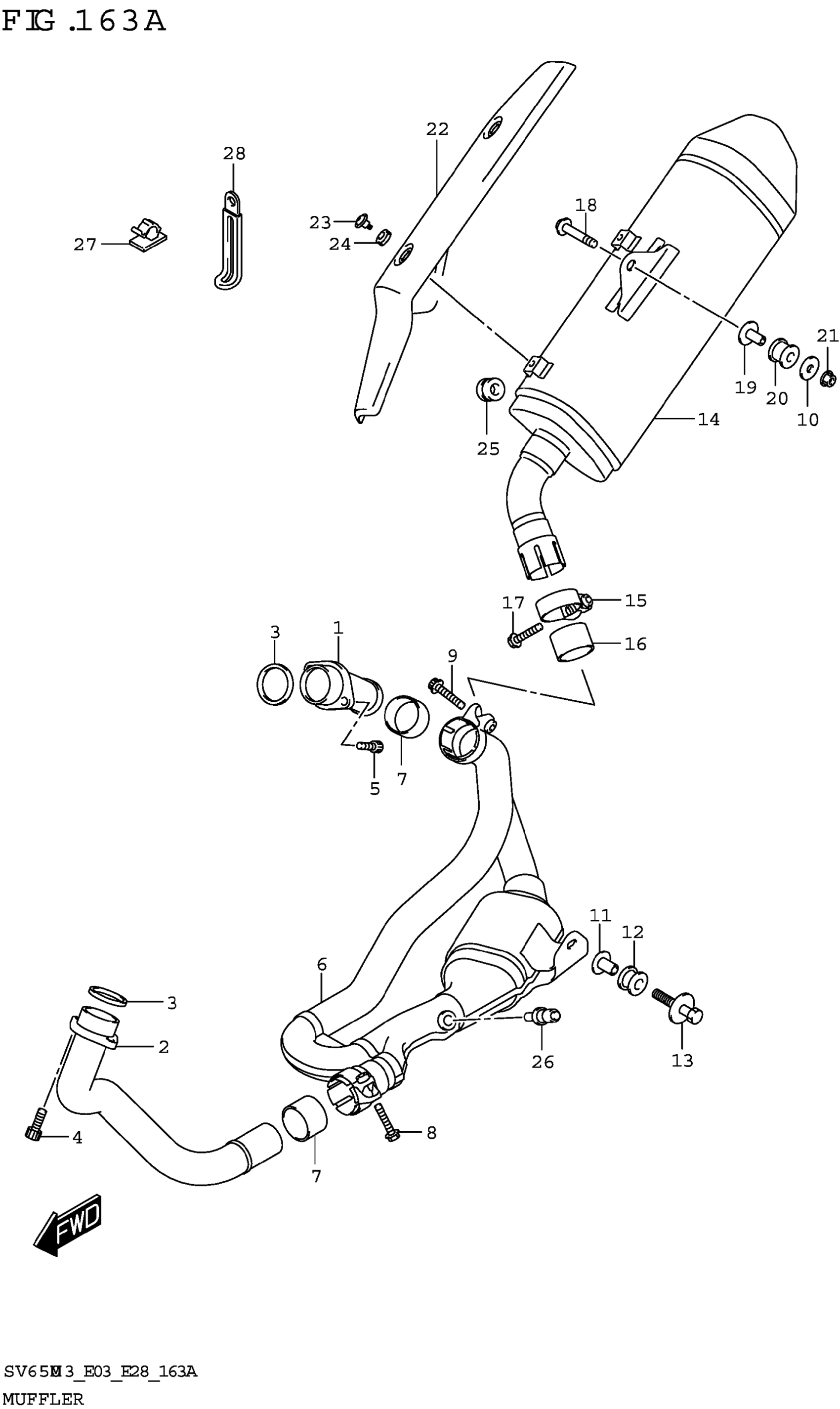

Suzuki SV650AM3 (2023) MUFFLER (SV650,SV650A) Diagram

#

Description
Price

1

PIPE,EXH RR

14150-18K00

$108.25

2

PIPE,EXH FR

14160-18K00

$185.13

3

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

4

BOLT (8X25)

09106-08178

$3.24

5

BOLT

07130-0825A

$3.04

6

PIPE,EXH CTR

14205-18K11

$982.97

7

CONNECTOR,EXHAUST

14771-32E10

$26.20

8

BOLT (8X35)

09103-08365

$3.91

9

BOLT (8X40)

09106-08162

$4.77

10

WASHER (8.5X28X1.6)

09160-08157

$2.95

11

SPACER (8.6X12X24.2)

09180-08152

$5.83

12

CUSHION (12X30X24)

09320-12077

$11.78

13

BOLT (8X40)

09116-08133

$3.03

14

BODY,MUFFLER

14310-18K30-H01

$644.75

15

CLAMP,MUF CONN

14459-19F10

$22.60

16

CONNECTOR,EXHAUST

14771-32E10

$26.20

17

BOLT (8X35)

09106-08197

$4.18

18

BOLT (8X45)

09106-08195

$6.17

19

SPACER (8.6X12X24.2)

09180-08152

$5.83

20

CUSHION (12X30X24)

09320-12048

$5.11

21

NUT

08316-1008B

$2.66

22

COVER,MUF

14780-18K10

$169.78

23

SCREW (6X12)

09139-06124

$4.52

24

CUSHION (8.4X18X6)

09320-08066

$8.24

25

CUSHION (4X12X8)

09320-04013

$1.85

26

SENSOR,OXYGEN

18213-18KT0

$221.28

27

CLIP

09403-08327

Unavailable

28

CLAMP (L:45)

09404-06429

$1.83
