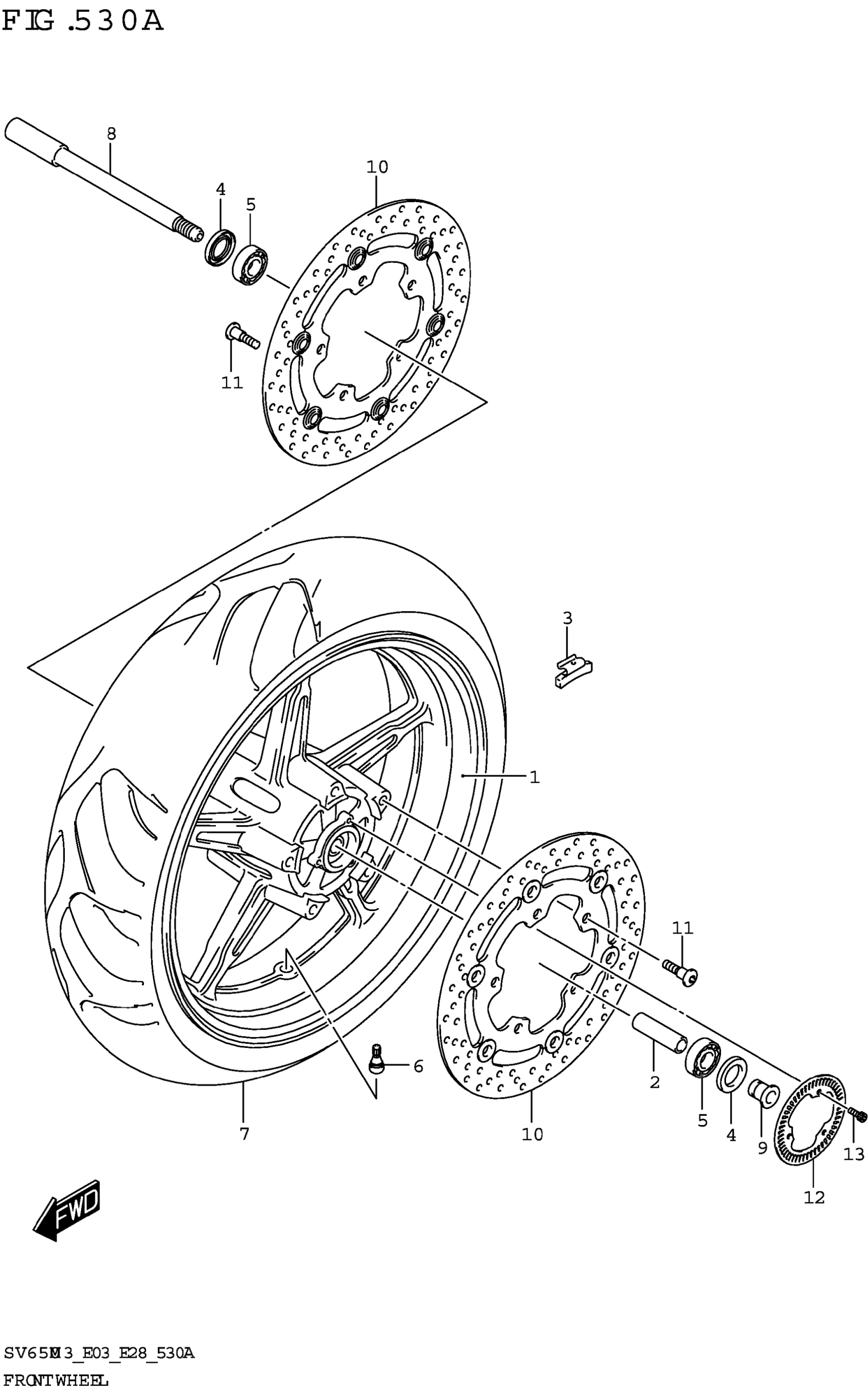

Suzuki SV650AM3 (2023) FRONT WHEEL (SV650,SV650A) Diagram

Description

Price

1-1

WHEEL,FRONT (17M/CXMT3.50,SIL | BODY COLOR:YVB,QT8

54111-18K10-YMY

$575.58

1-2

WHEEL,FRONT (RED) | BODY COLOR:BTH

54111-18K10-QGY

$575.58

SPACER,FR HUB BEARING

54731-44H00

$24.85

3-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

3-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

3-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47

SEAL,OIL (22X40X7)

09285-22004

$6.02

BEARING

08123-6203B

$22.67

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

TIRE,FRONT (120/70ZR17 M/C 58

55110-18K02

$221.28

AXLE,FR

54711-08F00

$104.18

SPACER,FR AXLE,L

54751-44H00

$17.03

DISC,FR BRAKE

59210-38G10

$424.60

BOLT (8X21)

09106-08160

$3.57

RING,SPEED SENSOR FR (50T)

54162-44H00

$23.73

BOLT

07130-0512A

$2.19
