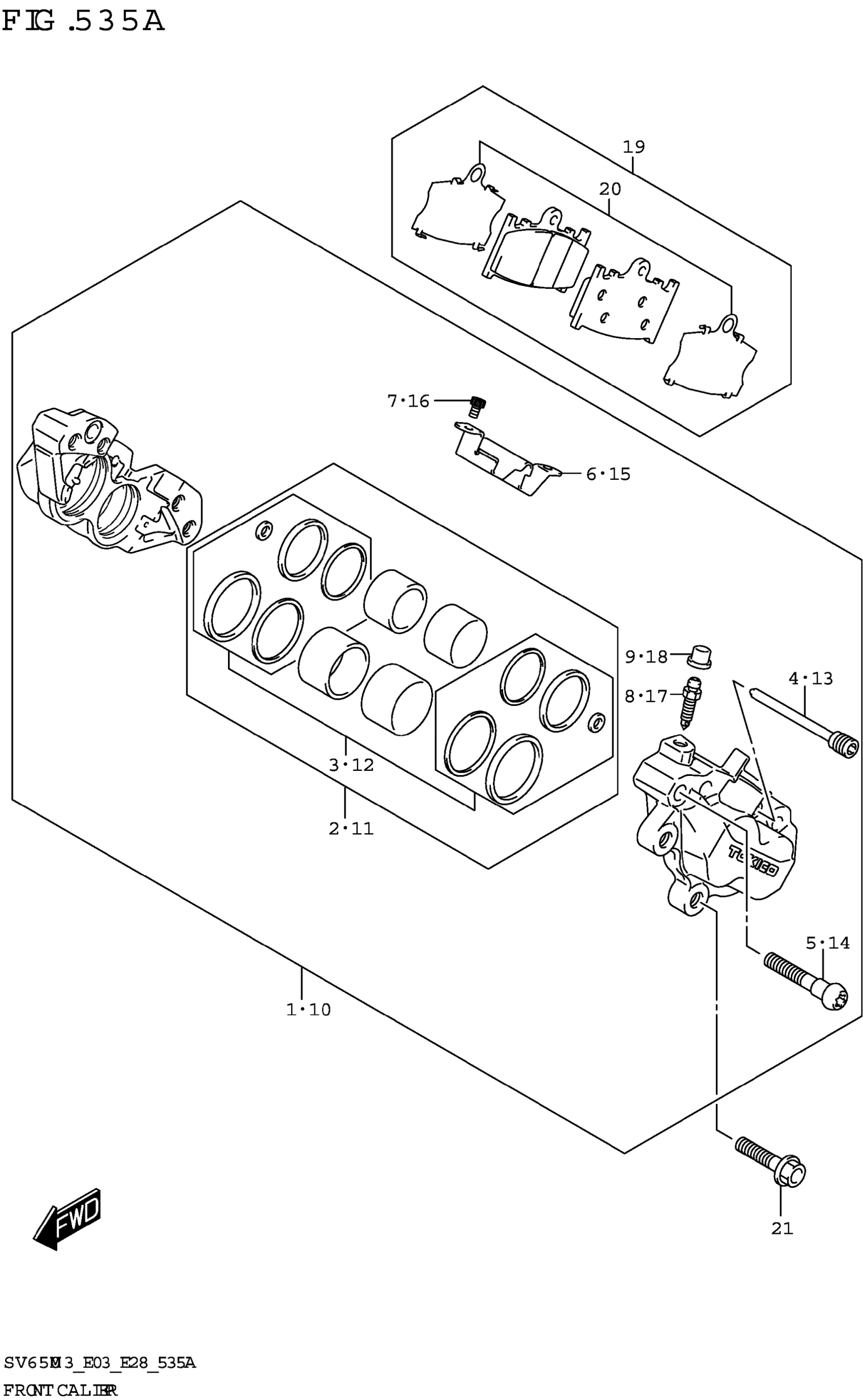

Suzuki SV650AM3 (2023) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FR,R

59100-35F60-999

Unavailable

2

.PISTON SET

59300-34811

$98.92

3

..SEAL SET,PISTON

59300-34821

$40.98

4

.PIN,PAD

59141-40F00

$37.45

5

.BOLT

59145-18G00

$9.92

6

.COVER,CALIPER DUST

59152-35F00

$21.03

7

.SCREW

59153-22D00

$6.30

8

.BLEEDER

59121-18410

$8.73

9

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$5.17

10

CALIPER ASSY,FR,L

59300-35F60-999

Unavailable

11

.PISTON SET

59300-34811

$98.92

12

..SEAL SET,PISTON

59300-34821

$40.98

13

.PIN,PAD

59141-40F00

$37.45

14

.BOLT

59145-18G00

$9.92

15

.COVER,CALIPER DUST

59151-35F00

$21.03

16

.SCREW

59153-22D00

$6.30

17

.BLEEDER

59121-18410

$8.73

18

.CAP,BLEEDER PLUG (M10X1)

55156-66310

$5.17

19

PAD SHIM SET

59100-35800

$82.37

20

.SHIM PAD

59171-35F80

$11.82

21

BOLT (8X28)

09103-08359

$3.76
