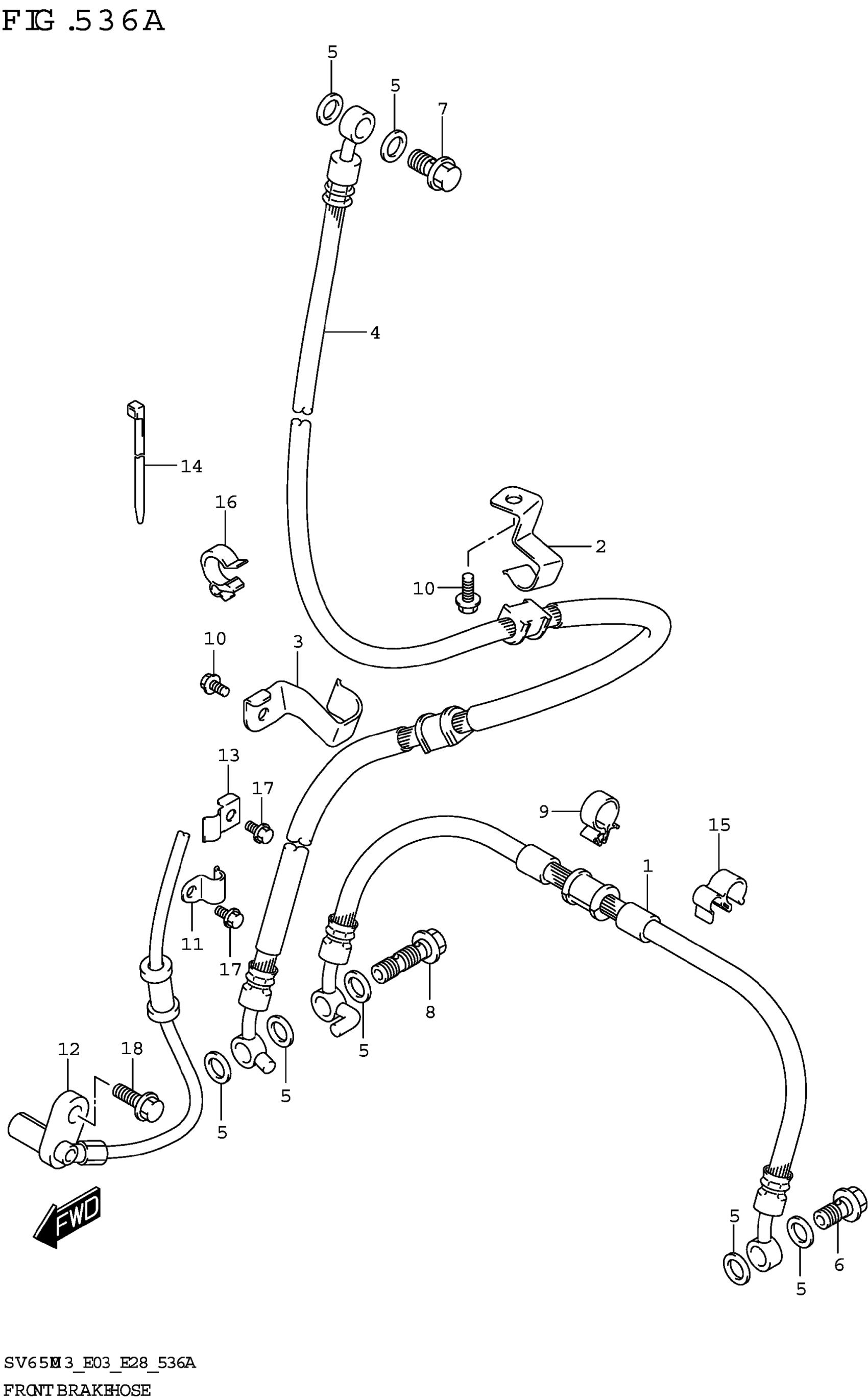

Suzuki SV650AM3 (2023) FRONT BRAKE HOSE (SV650) Diagram

#

Description
Price

1

HOSE,FR BK CLPR TO CLPR

59240-18K21

$56.83

2

CLAMP,FR BRAKE HOSE NO.1

59261-44H00

Unavailable

3

CLAMP,FR BRAKE HOSE NO.2

59263-44H10

$11.17

4

HOSE,FR BK MASTER TO CLPR

59480-18K20

$92.88

5

WASHER (10X15X1.5)

09161-10009

$1.83

6

UNION (10X1.25X22)

09360-10062

$5.81

7

UNION This part replaces 09360-10042.

09360-10062

$5.81

8

UNION (10X1.25X36)

09360-10064

$5.81

9

CLAMP

09403-16412

$3.08

10

BOLT (6X12)

09103-06525

$1.49

11

CLAMP,ABS SENSOR FR

55731-15H00

$5.47

12

SENSOR,FR WHEEL SPEED

55710-18K30

$244.62

13

CLAMP,SENSOR LEAD FR NO.3

55733-44H00

Unavailable

14

CLAMP (L:145)

09407-14407

$2.80

15

CLAMP

09408-00307

$3.22

16

CLAMP

09408-00266

$2.69

17

BOLT (6X12)

09103-06525

$1.49

18

BOLT (6X16)

09103-06526

$1.66
