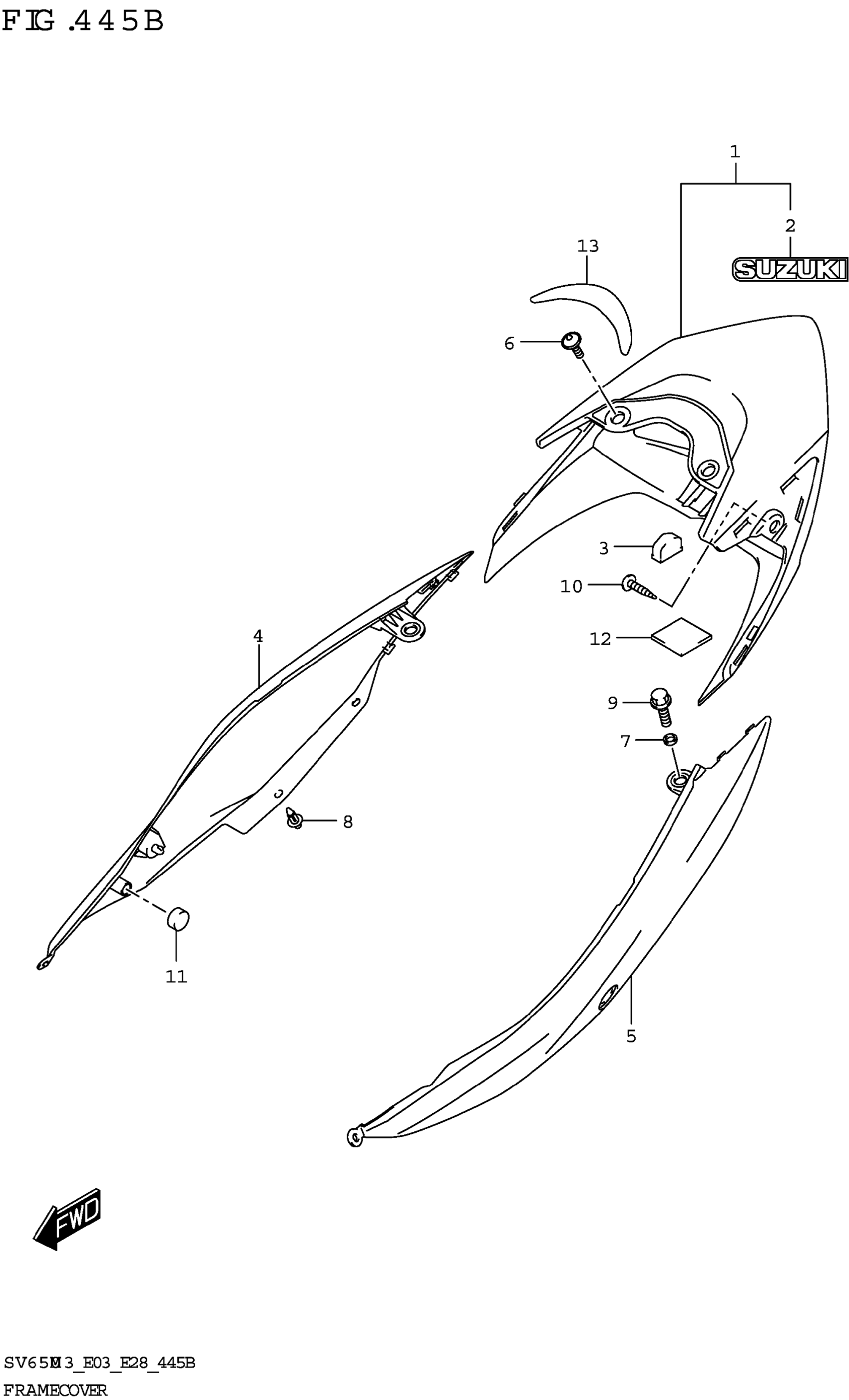

Suzuki SV650AM3 (2023) FRAME COVER (SV650XA) Diagram

#

Description

Price

1

COVER,FRAME REAR CTR (BLACK)

47310-18KA1-4TX

Unavailable

2

.EMBLEM,"SUZUKI" (BLACK)

68171-28H11-KGL

$8.15

3

CUSHION,FRAME COVER CTR

47315-18K00

$12.73

4

COVER,FRAME REAR,R (SILVER)

47411-18KA2-QKA

$52.58

5

COVER,FRAME REAR,L (SILVER)

47511-18KA2-QKA

$52.58

6

BOLT (5X13)

09139-05074

$2.61

7

SPACER (8.5X12X2.5)

09180-08052

Unavailable

8

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

9

BOLT (8X12)

01550-0812A

$2.32

10

SCREW

03541-0510A

$1.49

11

CUSHION (14X20X9)

09329-14003

$2.72

12

PROTECTOR (50X50X5) This part replaces 33652-24B00.

33652-20C00

$2.99

13

TAPE,FRAME COVER RR CTR

47312-18K00

$11.53
