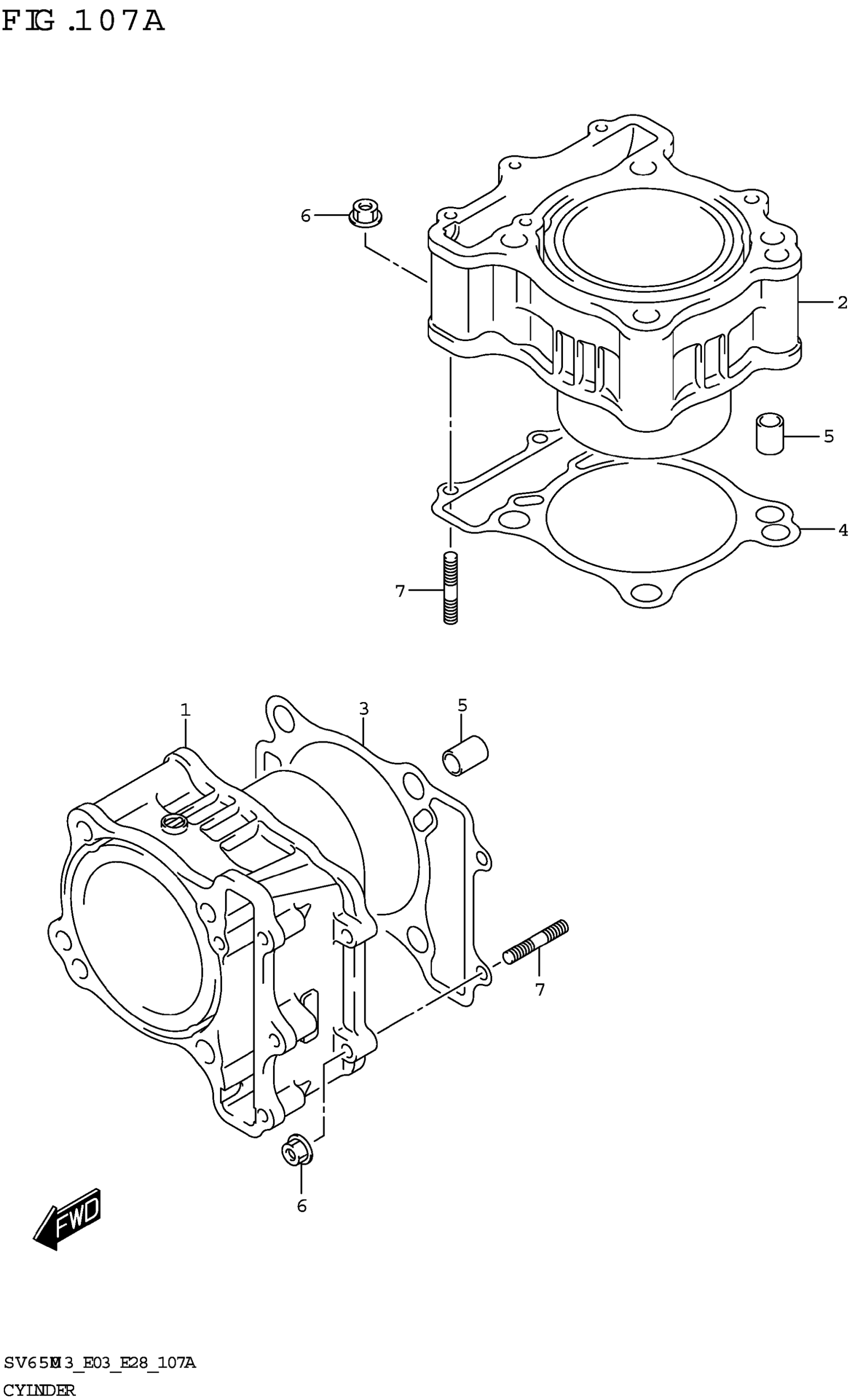

Suzuki SV650AM3 (2023) CYLINDER Diagram

#

Description

Price

1

CYLINDER,FR

11211-44H00-0F0

Unavailable

2

CYLINDER,RR

11221-44H00-0F0

Unavailable

3

.GASKET,CYLINDER FR

11241-19F10

$23.13

4

.GASKET,CYLINDER RR

11242-19F00

$13.29

5

PIN (10.4X13X18)

04211-13189

$2.19

6

NUT (6X12)

08316-1006A

$2.19

7

STUD BOLT

01421-0625A

$1.99
