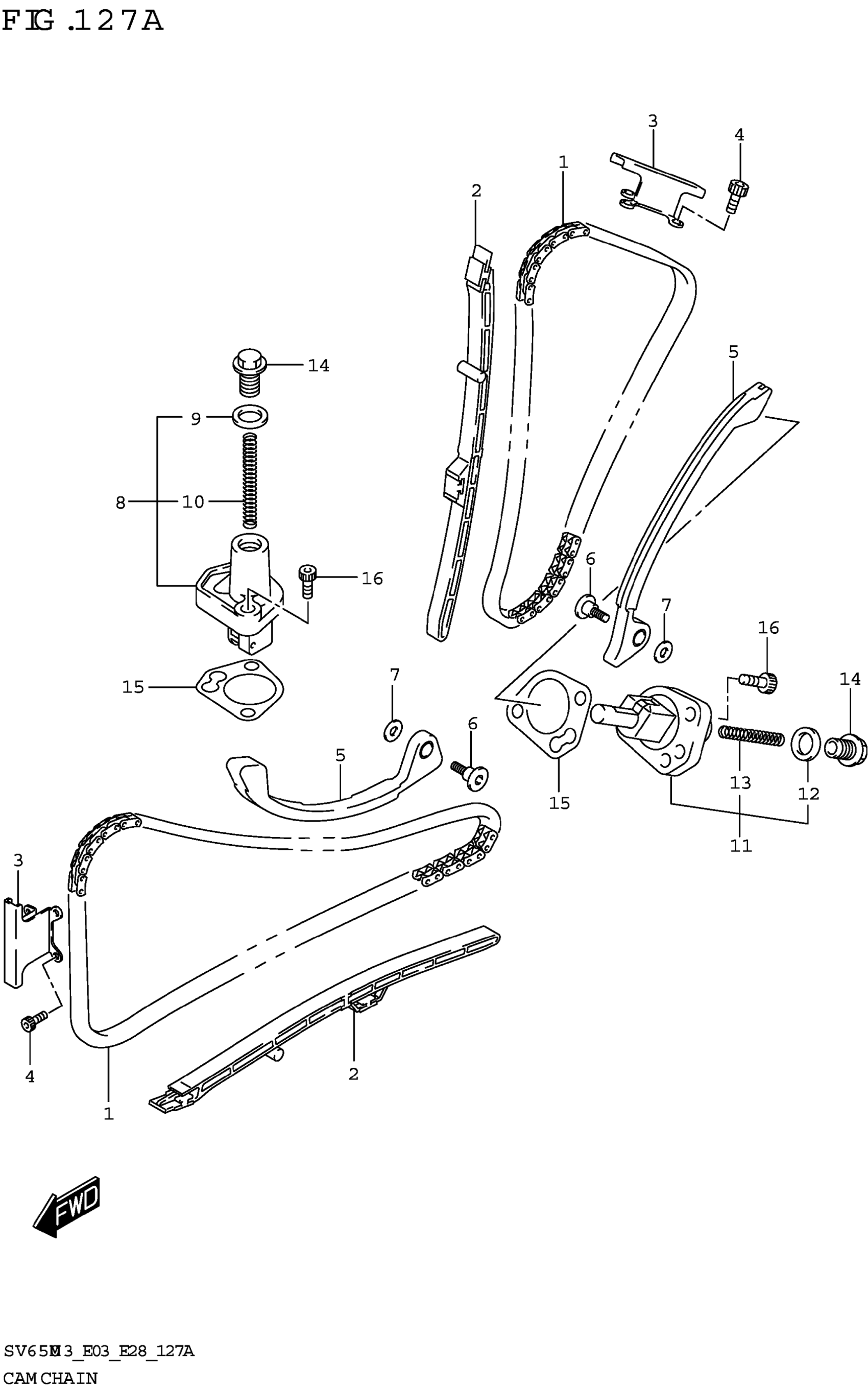

Suzuki SV650AM3 (2023) CAM CHAIN Diagram

#

Description
Price

1

CHAIN,CAMSHAFT DRIVE

12760-19F01

$219.87

2

GUIDE,CAM CHAIN NO.1

12771-44H01

$35.78

3

GUIDE,CAM CHAIN NO.2

12782-19F01

$50.10

4

BOLT

07130-0612A

$2.50

5

TENSIONER,CAM CHAIN

12811-17G01

$82.70

6

BOLT,CAM CHAIN TENSIONER

12812-35C00

$8.22

7

WASHER

08211-06181

$1.79

8

ADJUSTER ASSY,TENSIONER FR

12830-27G00

$131.75

9

.GASKET,TENSIONER ADJUSTER

12837-24F10

$4.37

10

.SPRING

12831-39F00

$5.43

11

ADJUSTER ASSY,TENSIONER RR

12830-27G10

$134.23

12

.GASKET,TENSIONER ADJUSTER

12837-24F10

$4.37

13

.SPRING

12831-39F00

$5.43

14

PLUG,TENSIONER ADJUSTER

12833-17G00

$8.88

15

.GASKET,TENSIONER ADJUSTER

12837-27G10

$5.38

16

BOLT (6X25)

07130-0625A

$2.64
