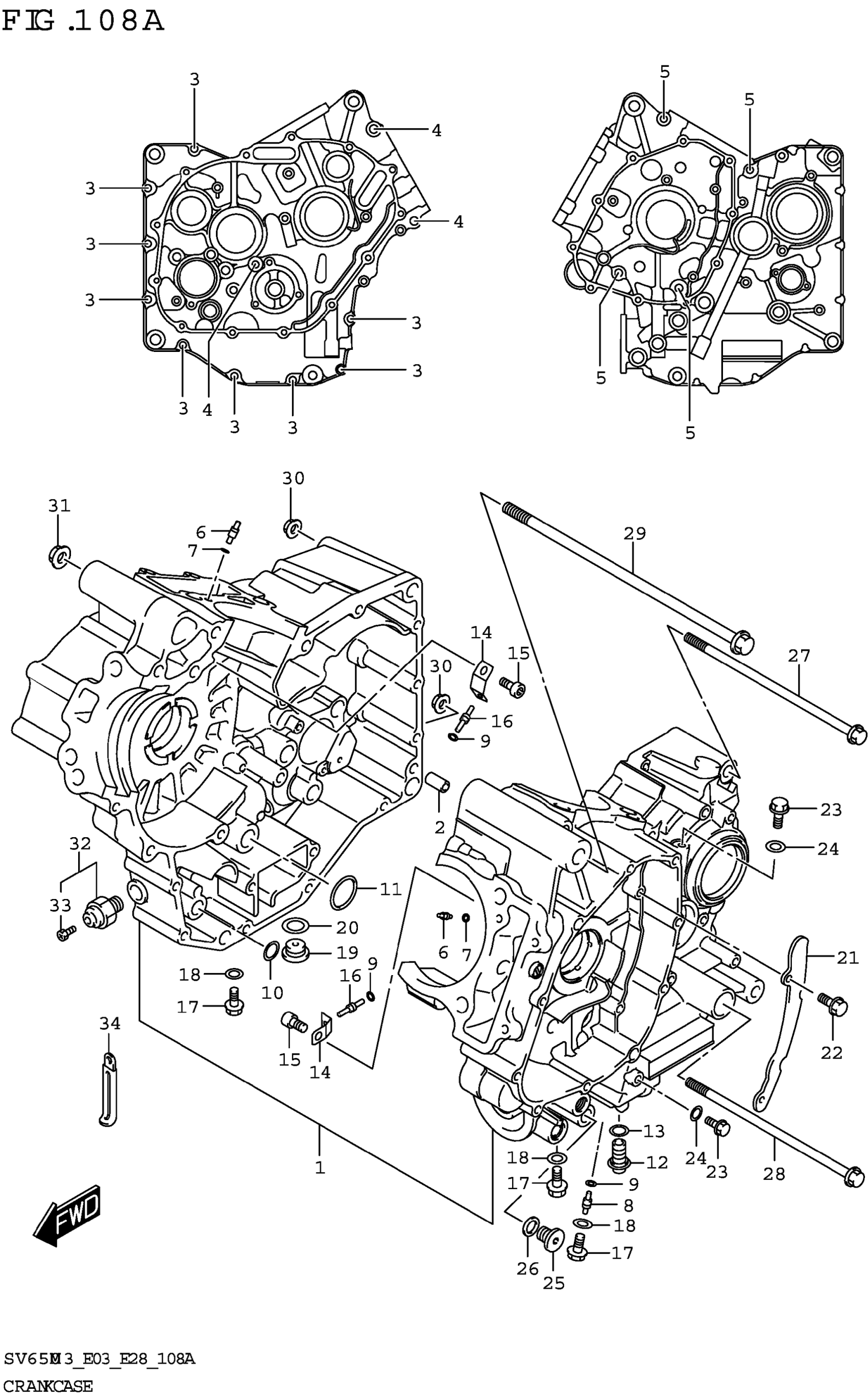

Suzuki SV650AM3 (2023) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-27880

$2,444.73

2

.PIN (8.4X11X20)

09206-11007

$2.63

3

BOLT (6X50)

09103-06533

$2.45

4

.BOLT

07120-0855A

$4.70

5

.BOLT

07120-0880A

$5.17

6

JET (14)

09493-28010

$18.00

7

O-RING (D:1.2,ID:4)

09280-04004

$1.76

8

JET (18)

09493-36004

$18.33

9

O-RING (D:1.2,ID:4)

09280-04004

$1.76

10

O RING (D:1.9,ID:12.6) This part replaces 09280-13007.

09280-12009

$2.87

11

O-RING (D:2.4,ID:15.8)

09280-15007

$1.71

12

PLUG (12X20) | OIL DRAIN

09247-12011

$4.19

13

GASKET (12.1X16.2X3.7) | OIL DRAIN

09168-12002

$1.59

14

PLATE,PISTON COOLING JET

16438-19F00

Unavailable

15

BOLT (6X12)

09106-06075

$2.50

16

JET (13)

09493-26007

Unavailable

17

BOLT (8X12)

01550-0812A

$2.31

18

GASKET (8.2X14X1)

09168-08016

$1.64

19

PLUG (16X8)

09248-16012

$4.19

20

GASKET (16X22X2)

09168-16002

$1.89

21

PLATE,OIL SEPARATOR

11323-19F00

Unavailable

22

BOLT

01547-0612A

$2.01

23

BOLT

01547-0610A

$1.47

24

GASKET (5.8X13X1.2)

09168-06023

$2.01

25

PLUG (12X10)

09247-12006

$2.80

26

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

27

BOLT (10X215)

09103-10041-A05

$9.38

28

BOLT (10X205)

09103-10145

$15.65

29

BOLT (12X300)

09103-12016

$28.57

30

NUT

09159-10111

Unavailable

31

NUT

09159-12056

$6.65

32

SWITCH ASSY,OIL PRESSURE

37820-33D11

$27.58

33

.BOLT,OIL PRESSURE SWITCH

37822-33D00

$4.92

34

CLAMP (L:45)

09404-06429

$1.82
