Description

Price

1

CALIPER ASSY,REAR

69100-18K00-999

$384.12

2

.BLEEDER

59121-01A00

$8.73

3

.CAP,BLEEDER

59122-46H00

$4.43

4

.PLUG,PIN

59146-21E10

$6.15

5

.BOOT

59303-14500

$5.52

6

.PISTON SET

69101-44860

$60.38

7

..SEAL SET,PISTON

69100-04820

$8.77

8

.PIN,BOLT

59305-36E00

$18.20

9

.SPRING,PAD

69115-06G00

$13.50

10

.PIN,PAD

69141-40F00

$29.48

11

.BRACKET

69150-18K00

$104.94

12

.BOLT

69182-04F00

$9.07

13

.SLEEVE

69185-04F00

$18.50

14

.BOOT,SLEEVE

69186-04F00

$13.22

15

.PAD SET

69101-44850

$56.87

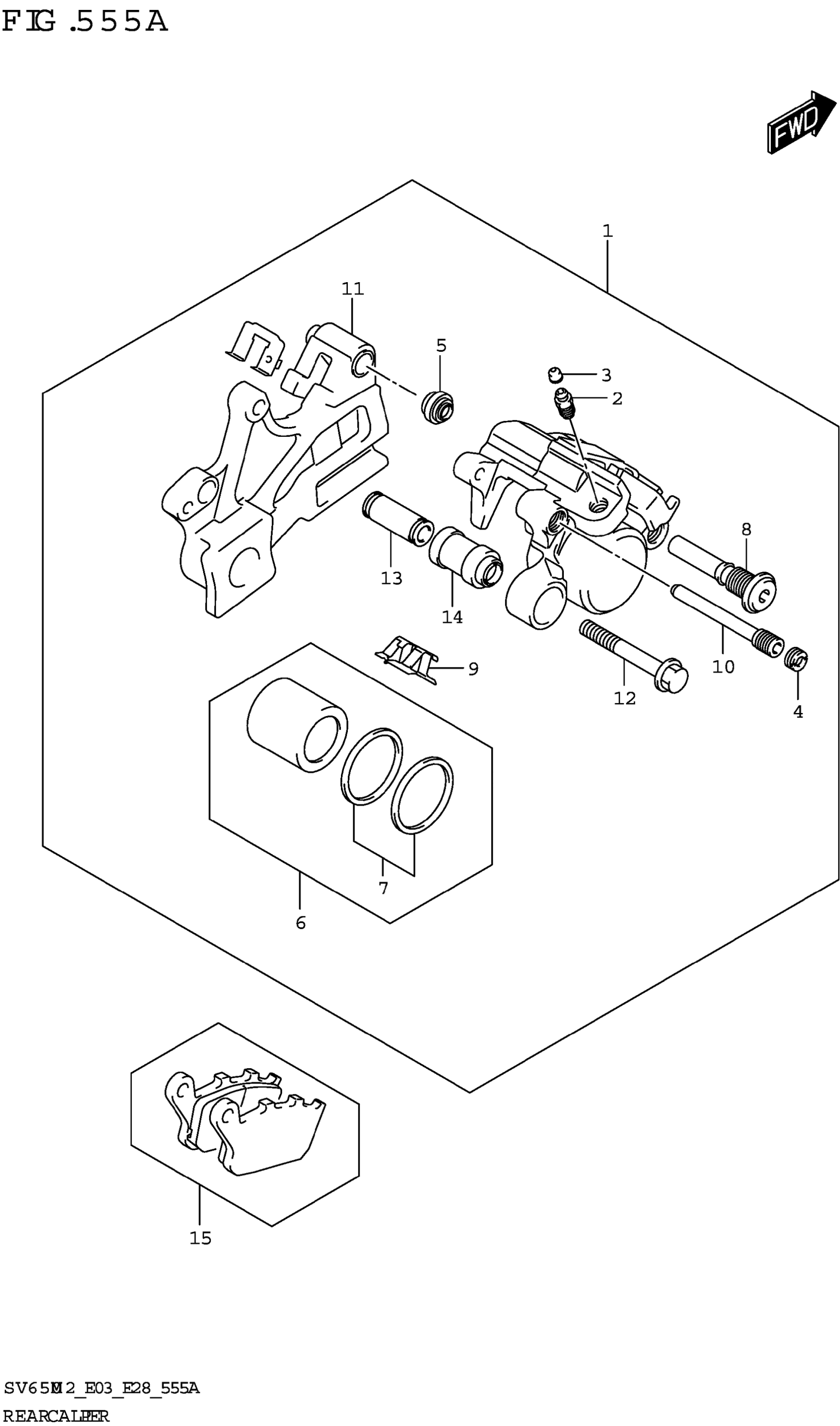

Suzuki SV650AM2 (2022) REAR CALIPER Diagram
