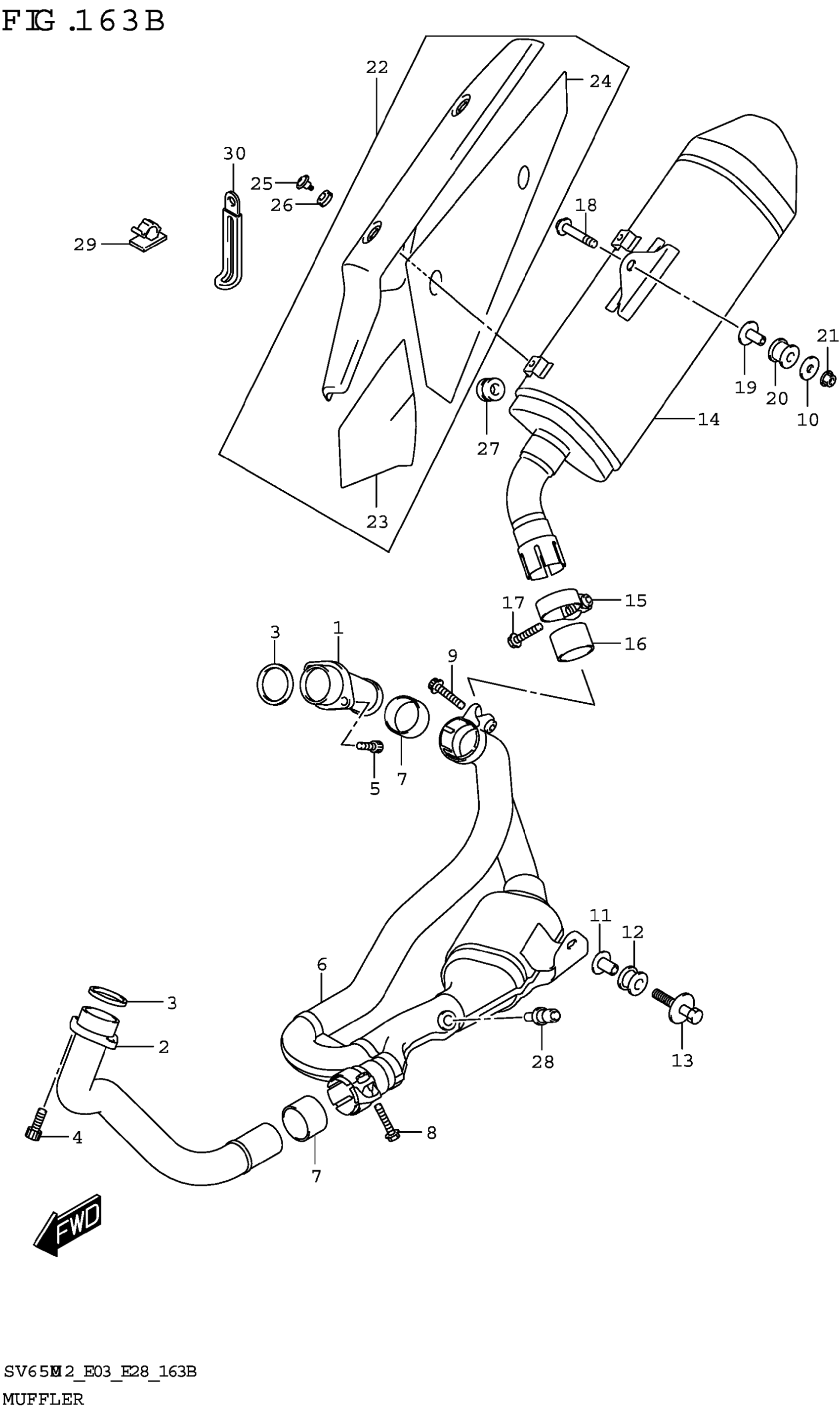

Suzuki SV650AM2 (2022) MUFFLER (SV650XA) Diagram

#

Description
Price

1

PIPE,EXH RR

14150-18K00

$108.25

2

PIPE,EXH FR

14160-18K00

$185.13

3

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

4

BOLT (8X25)

09106-08178

$3.24

5

BOLT

07130-0825A

$3.04

6

PIPE,EXH CTR

14205-18K11

$982.97

7

CONNECTOR,EXHAUST

14771-32E10

$26.20

8

BOLT (8X35)

09103-08365

$3.91

9

BOLT (8X40)

09106-08162

$4.77

10

WASHER (8.5X28X1.6)

09160-08157

$2.95

11

SPACER (8.6X12X24.2)

09180-08152

$5.83

12

CUSHION (12X30X24)

09320-12077

$11.78

13

BOLT (8X40)

09116-08133

$3.03

14

BODY,MUFFLER

14310-18K50-H01

$656.93

15

CLAMP,MUF CONN

14459-19F10

$22.60

16

CONNECTOR,EXHAUST

14771-32E10

$26.20

17

BOLT (8X35)

09106-08197

$4.18

18

BOLT (8X45)

09106-08195

$6.17

19

SPACER (8.6X12X24.2)

09180-08152

$5.83

20

CUSHION (12X30X24)

09320-12048

$5.11

21

NUT

08316-1008B

$2.66

22

COVER,MUF

14780-18K40

$176.27

23

.SHIELD,MUF COVER NO.1

14783-18K20

Unavailable

24

.SHIELD,MUF COVER NO.2

14784-18K20

Unavailable

25

SCREW (6X12)

09139-06128

$5.67

26

CUSHION (8.4X18X6)

09320-08066

$8.24

27

CUSHION (4X12X8)

09320-04013

$1.85

28

SENSOR,OXYGEN

18213-18K00

$315.67

29

CLIP

09403-08327

Unavailable

30

CLAMP (L:45)

09404-06429

$1.83
