Description

Price

1

COVER,HEADLAMP | FROM 202106

51811-18K01

$40.75

2

CUSHION (15X70X7) | FROM 202106

51827-13G00

$4.77

3

CUSHION,METER COVER (10X30X5) | FROM 202106

51827-18K00

$5.60

4

SCREW (6X22.5) | FROM 202106

09139-06118

$3.05

5

SPACER (6.5X9X51) | FROM 202106

09180-06368

$8.77

6

CUSHION (9X18X9.5) | FROM 202106

09320-09016

$1.97

7

CUSHION (10X20X10) | FROM 202106

09320-10078

$3.81

8

BOLT | FROM 202106

07120-0665B

$4.92

9

COVER,METER,R (BLACK) | FROM 202106

51821-18K00-YKV

$105.20

10

COVER,METER,L (BLACK) | FROM 202106

51831-18K00-YKV

$103.25

11

COVER,METER CENTER | FROM 202106

51841-18K00

$7.32

12

BOLT (5X13) | FROM 202106

09139-05074

$2.58

13

CUSHION (6X18X6) | FROM 202106

09320-06504

$4.47

14

SCREW | FROM 202106

03541-0512A

$1.37

15

CUSHION,HEADLAMP BRACE | FROM 202106

51831-21D00

$4.31

16

BRACE,HEADLAMP | FROM 202106

51850-18K20

$202.77

17

BOLT (6X12) | FROM 202106

09103-06525

$1.49

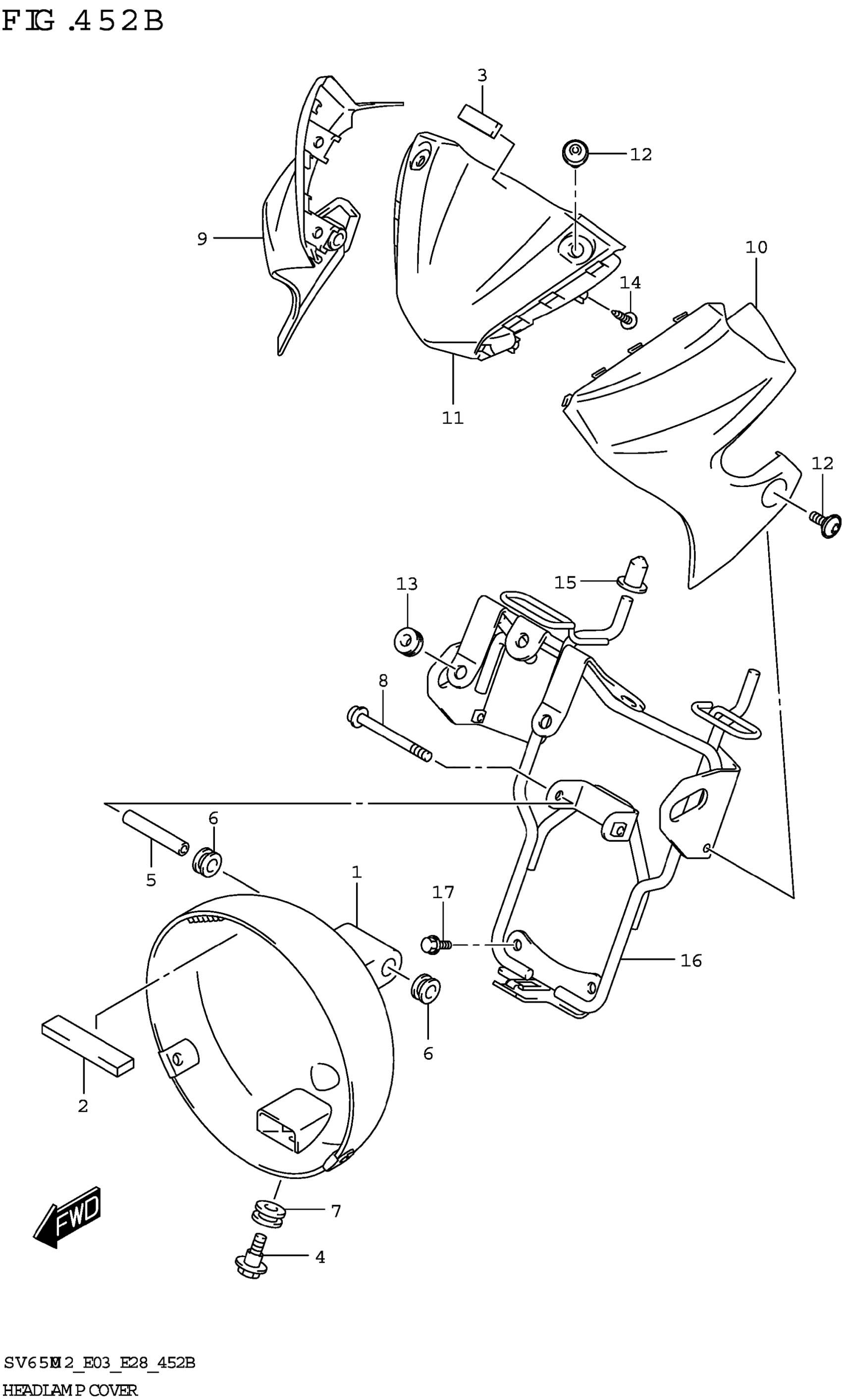

Suzuki SV650AM2 (2022) HEADLAMP COVER (SV650,SV650A) Diagram
