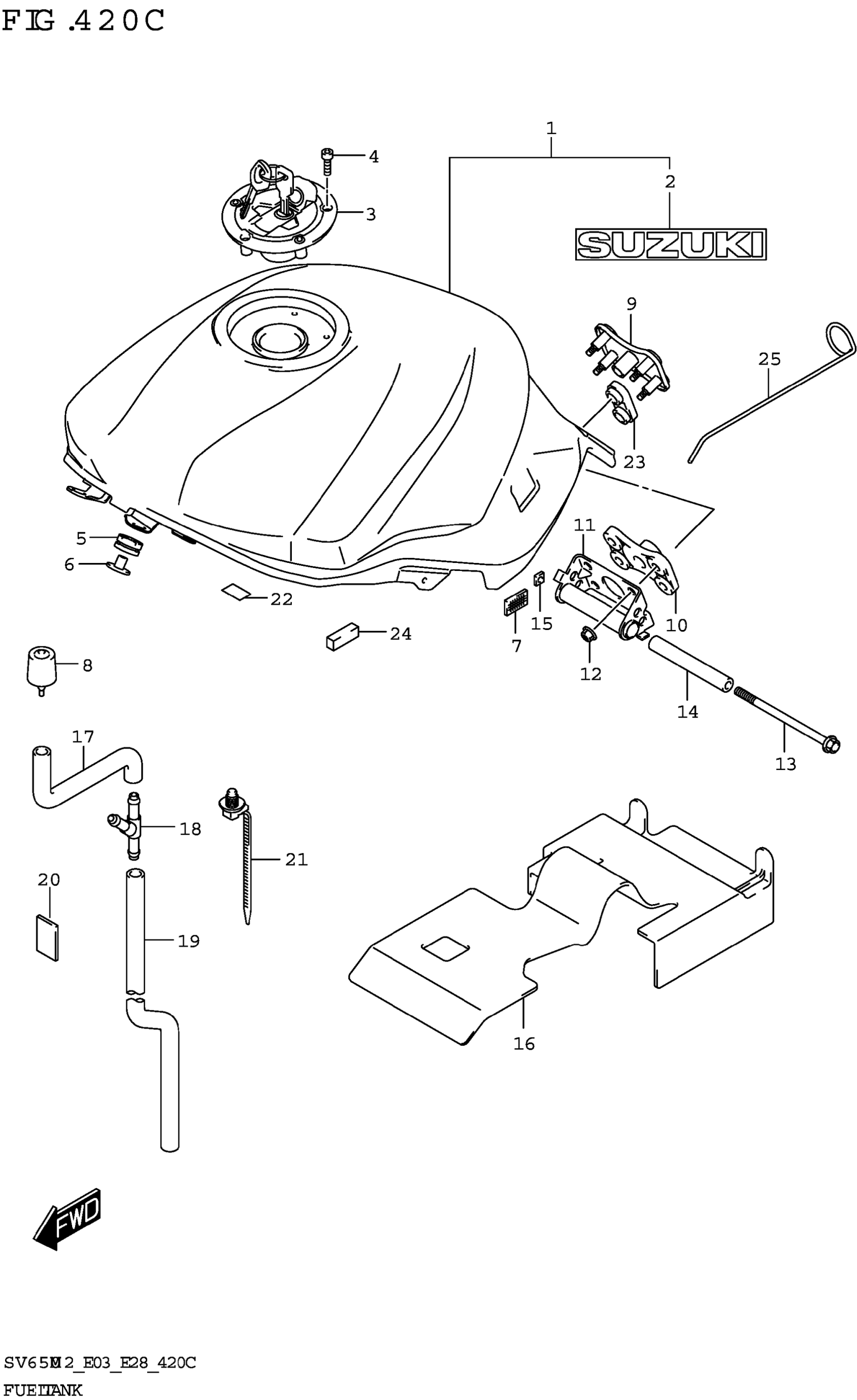

Suzuki SV650AM2 (2022) FUEL TANK (SV650XA:E33) Diagram

#

Description
Price

1

TANK ASSY,FUEL (BLACK) This part replaces 44100-18K60-YVB.

44100-18K61-YVB

$1,030.40

2

.EMBLEM (GRAY)

68111-47C10-YLF

$17.33

3

CAP SET,FUEL TANK FILLER

44200-17840

$185.23

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

5

CUSHION,FUEL TANK FRONT

44511-18K00

$7.30

6

SPACER,FUEL TANK FRONT

44512-04K00

$7.97

7

FASTENER (33X25X2.6)

44572-13G00

$10.13

8

CUSHION,FUEL TANK RR

44542-29G01

$7.27

9

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

10

CUSHION,FUEL TANK RR LWR

44542-18K00

$20.25

11

BRACKET,FUEL TANK RR

44530-44H00

Unavailable

12

NUT

08319-3106A

$2.01

13

BOLT (6X100)

09103-06060

$2.61

14

SPACER,FUEL TANK

44561-35F00

$13.06

15

NUT

08318-1106A

Unavailable

16

SHEET,HEAT SHIELD RUBBER

44191-18K00

$64.62

17

HOSE,FUEL TANK DRAIN NO.1

44423-18K01

$10.87

18

JOINT,DRAIN HOSE

09367-08010

Unavailable

19

HOSE,FUEL TANK DRAIN NO.2

44423-18K11

$26.23

20

SHIELD,DRAIN HOSE HEAT

44427-18K10

$19.40

21

CLAMP (L:170)

09407-17403

$4.63

22

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.42

23

CUSHION,FUEL TANK RR UPR

44541-18K00

Unavailable

24

CUSHION,TANK COVER (8X25X8)

44281-18K01

$6.08

25

STAY, FUEL TANK | OPT

44560-23H00

$50.73
