2022 Suzuki SV650AM2 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2022 Suzuki SV650AM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

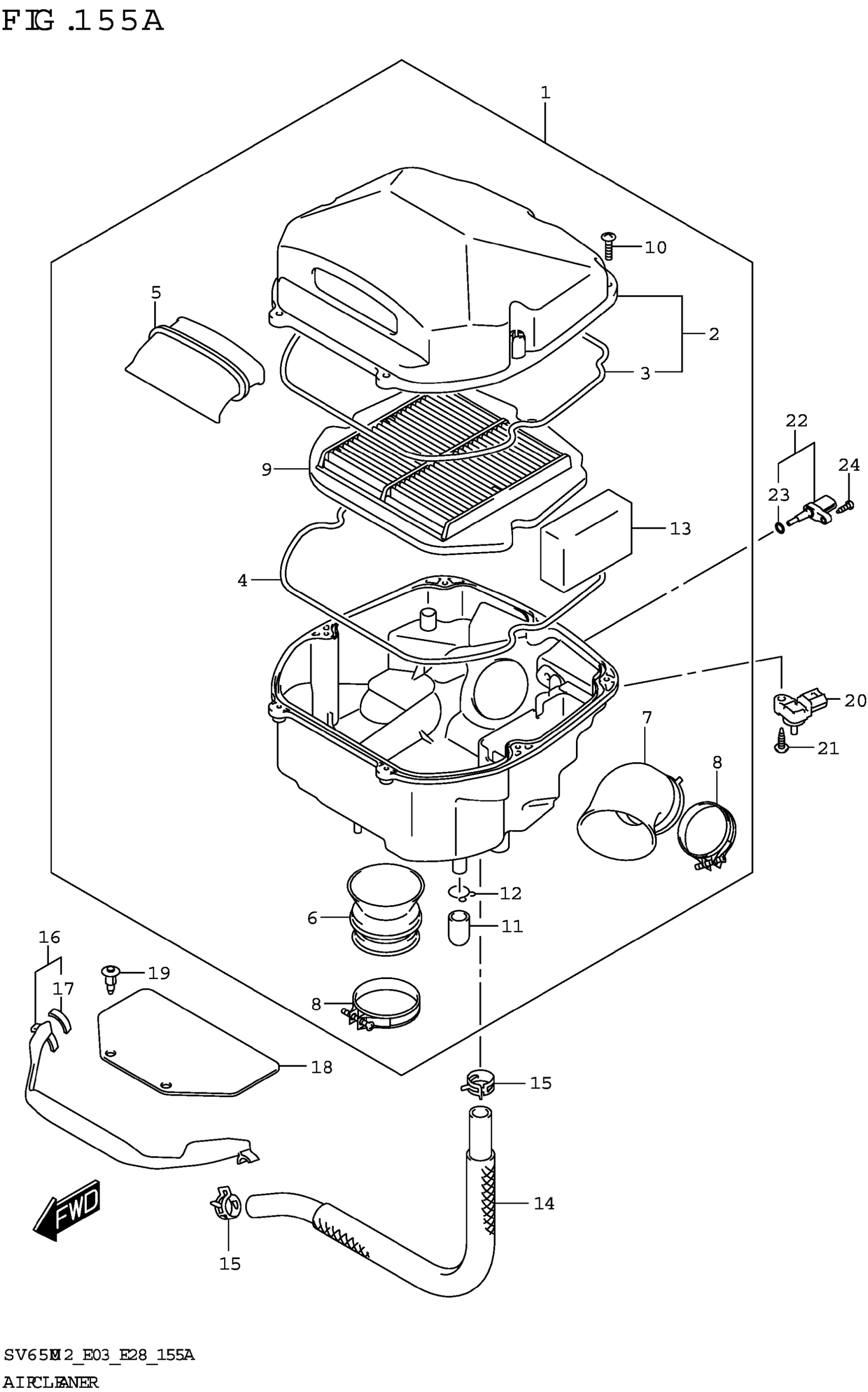

2022 Suzuki SV650AM2 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AIR

13700-18K01

1
Out of stock

2

.CAP,AIR CLEANER

13740-44H00

1
Out of stock

3

..GASKET

13746-44H00

1
Out of stock

4

..GASKET

13746-44H00

1
Out of stock

5

.TUBE,INLET

13891-18K01

1
Out of stock

6

.TUBE,OUTLET A

13881-18K01

1
Out of stock

7

.TUBE,OUTLET B

13882-18K01

1
Out of stock

8

.CLAMP,OUTLET TUBE

13826-44H01

2
Out of stock

9

.FILTER,AIR CLEANER

13780-44H00

1
Out of stock

10

SCREW

03541-0520A

7
Out of stock

11

.PLUG

13859-41B10

1
Out of stock

12

.CLIP (ID:14.5)

09401-14101

1
Out of stock

13

.FILTER,BREATHER

13788-44H00

1
Out of stock

14

TUBE,BREATHER

13850-18K01

1
Out of stock

15

CLIP

09401-20405

2

$4.43

In stock

16

COVER,CLEANER INLET

13840-44H00

1
Out of stock

17

CUSHION (10X30X2)

44894-24A00

2
Out of stock

18

SHEET,CLEANER INLET

13841-44H00

1
Out of stock

19

CLIP (7.6X25.7,BLACK)

09409-08308-5ES

2
Out of stock

20

SENSOR,BOOST

18590-18K00

2
Out of stock

21

SCREW

03541-0520A

2
Out of stock

22

SENSOR,AIR TEMP

13650-41F10

1
Out of stock

23

O-RING

13655-41F10

1
Out of stock

24

SCREW

03511-0516A

1
Out of stock
