Description

Price

1-1

WHEEL,FRONT (RED) | BODY COLOR:B1G This part replaces 54111-18K00-QGY.

54111-18K10-QGY

$628.43

1-2

WHEEL,FRONT (BLUE) | ) BODY COLOR:YKV This part replaces 54111-18K00-YLY.

54111-18K10-YLY

$649.53

1-3

WHEEL,FRONT | K) BODY COLOR:ACX This part replaces 54111-18K00-019.

54111-18K10-019

$597.40

2

SPACER,FR HUB BEARING

54731-44H00

$28.05

3-1

BALANCER,WHEEL (10G)

55411-22H00

$9.70

3-2

BALANCER,WHEEL (20G)

55412-22H00

$11.37

3-3

BALANCER,WHEEL (30G)

55413-22H00

$12.93

4

SEAL,OIL (22X40X7)

09285-22004

$5.51

5

BEARING

08123-6203B

$24.63

6

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

7

TIRE,FRONT (120/70ZR17 M/C 58 | ) This part replaces 55110-18K01.

55110-18K02

$243.88

8

AXLE,FR

54711-08F00

$117.03

9

SPACER,FR AXLE,L

54751-44H00

$19.23

10

DISC,FR BRAKE

59210-38G10

$472.48

11

BOLT (8X21)

09106-08160

$3.22

12

RING,SPEED SENSOR FR (50T)

54162-44H00

$26.80

13

BOLT

07130-0512A

$2.19

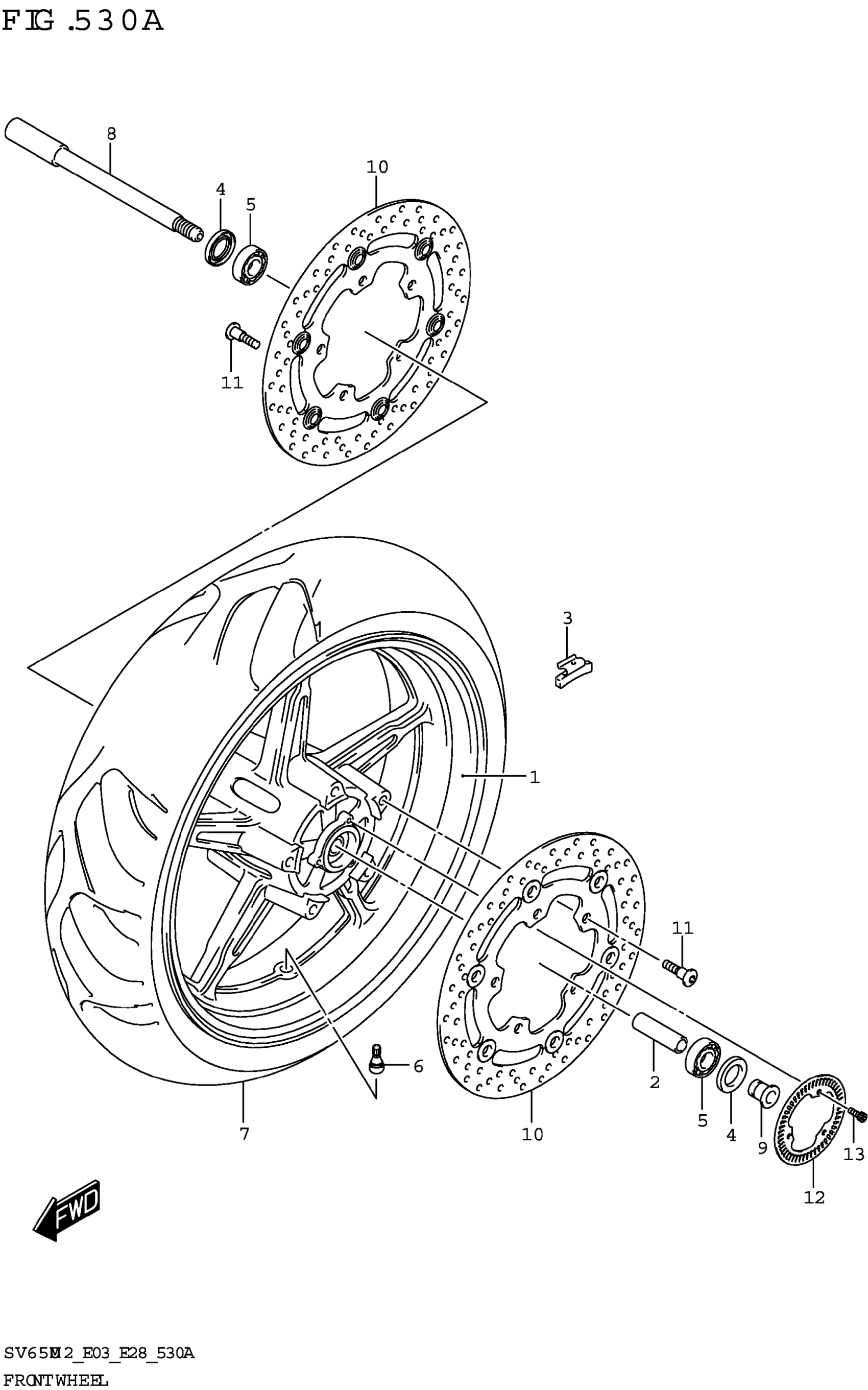

Suzuki SV650AM2 (2022) FRONT WHEEL (SV650,SV650A) Diagram
