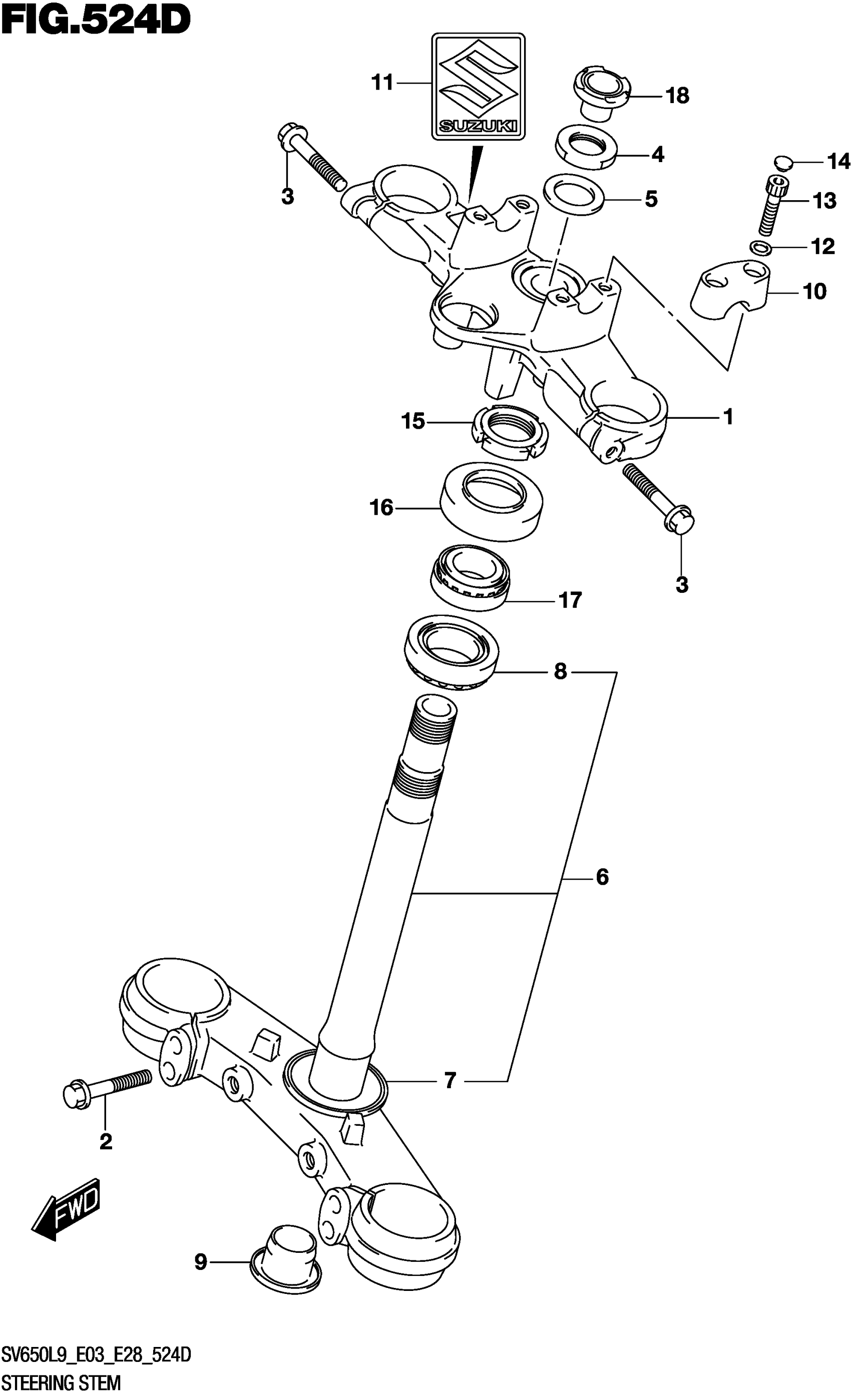

Suzuki SV650AL9 (2019) STEERING STEM (SV650AL9 E33) Diagram

#

Description
Price

1

HEAD,STEERING STEM (BLACK)

51311-44H00-291

$285.37

2

BOLT

51328-44H00

$5.63

3

BOLT

51328-44H00

$5.63

4

NUT

51353-13K00

$10.67

5

WASHER

51356-13K00

$3.08

6

BRACKET,UNDER (BLACK)

51410-44HD0-291

$421.82

7

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

8

.BEARING (30X55X17)

09265-30020

$44.41

9

CAP

51482-44H00

$17.83

10

HOLDER,HANDLE (BLACK)

56211-44H00-291

$30.47

11

EMBLEM,S

68281-47HA0

$7.77

12

WASHER

09164-08015

$3.21

13

BOLT,HOLDER,HANDLE

51321-10F10

$2.89

14

CAP This part replaces 09250-06008.

09250-06016

$1.96

15

NUT,STEERING STEM

51631-31F10

$16.00

16

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

17

BEARING (25X47X15)

09265-25038

$45.57

18

CAP,STEERING STEM

51344-23K10

$5.38
