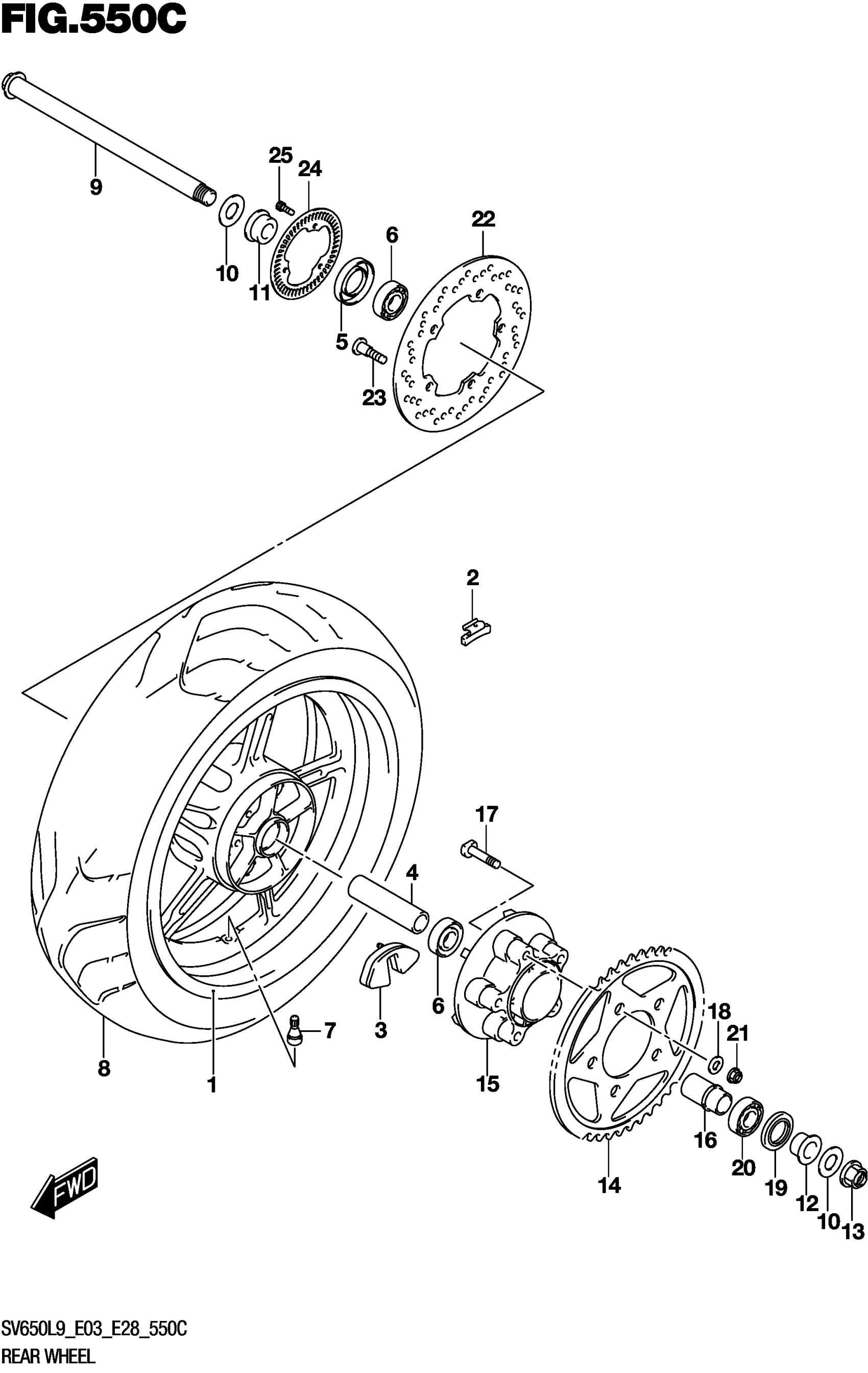

Suzuki SV650AL9 (2019) REAR WHEEL (SV650AL9 E28) Diagram

#

Description
Price

1-1

WHEEL, REAR (17M/CXMT5.0) | FOR QEB

64111-44H11-QGY

$728.15

1-1

WHEEL, REAR (17M/CXMT5.0)

64111-44H11-QGY

$728.15

1-2

WHEEL,REAR (BLUE) | FOR YVB,AGT This part replaces 64111-44H11-YLY.

64111-18K10-YLY

$567.75

1-2

WHEEL,REAR (BLUE) This part replaces 64111-44H11-YLY.

64111-18K10-YLY

$567.75

2-1

BALANCER,WHEEL (10G) | 10G

55411-22H00

$8.60

2-2

BALANCER,WHEEL (20G) | 20G

55412-22H00

$10.07

2-3

BALANCER,WHEEL (30G) | 30G

55413-22H00

$11.47

3

ABSORBER,RR HUB SHOCK

64651-27A01

$9.78

4

SPACER (20.5X28X88)

09180-20062

$19.13

5

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

6

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

7

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

8

TIRE,REAR (160/60ZR17 M/C 69W | SPORTMAX This part replaces 65110-18K00.

65110-18K02

$236.05

8

TIRE,REAR (160/60ZR17 M/C 69W | ROADSMART3 This part replaces 65110-18K00.

65110-18K02

$236.05

8

TIRE,REAR (160/60ZR17 M/C 69W | DUNLOP This part replaces 65110-18K00.

65110-18K02

$236.05

9

AXLE,REAR

64711-17E40

$129.62

10

WASHER,RR AXLE

64723-44H00

$5.17

11

SPACER,RR AXLE,R

64741-22D00

$23.13

12

SPACER,RR AXLE,L

64751-44H00

$37.08

13

NUT

09159-20013

$33.00

14

SPROCKET,RR (46T-520)

64511-44H20

$81.02

15

DRUM,REAR SPROCKET MTG

64611-19F10

Unavailable

16

RETAINER,RR HUB BEARING

64733-27A00

$26.93

17

BOLT (10X47)

09119-10043

$4.26

18

WASHER (10.5X22X2.3)

09160-10039

$2.26

19

SEAL,OIL (35X62X8)

09285-35001

$10.19

20

BEARING (25X62X17)

09262-25073

$25.92

21

NUT

08319-3110A

$2.73

22

DISC,RR BRAKE

69211-38G00

$303.38

23

BOLT (8X21)

09106-08160

$3.57

24

RING,SPEED SENSOR FR (50T)

54162-44H00

$23.73

25

BOLT

07130-0512A

$2.19

26

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

26

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AGT=YWW(WHITE),YVB(BLACK)

SPECIAL NOTE

Unavailable
