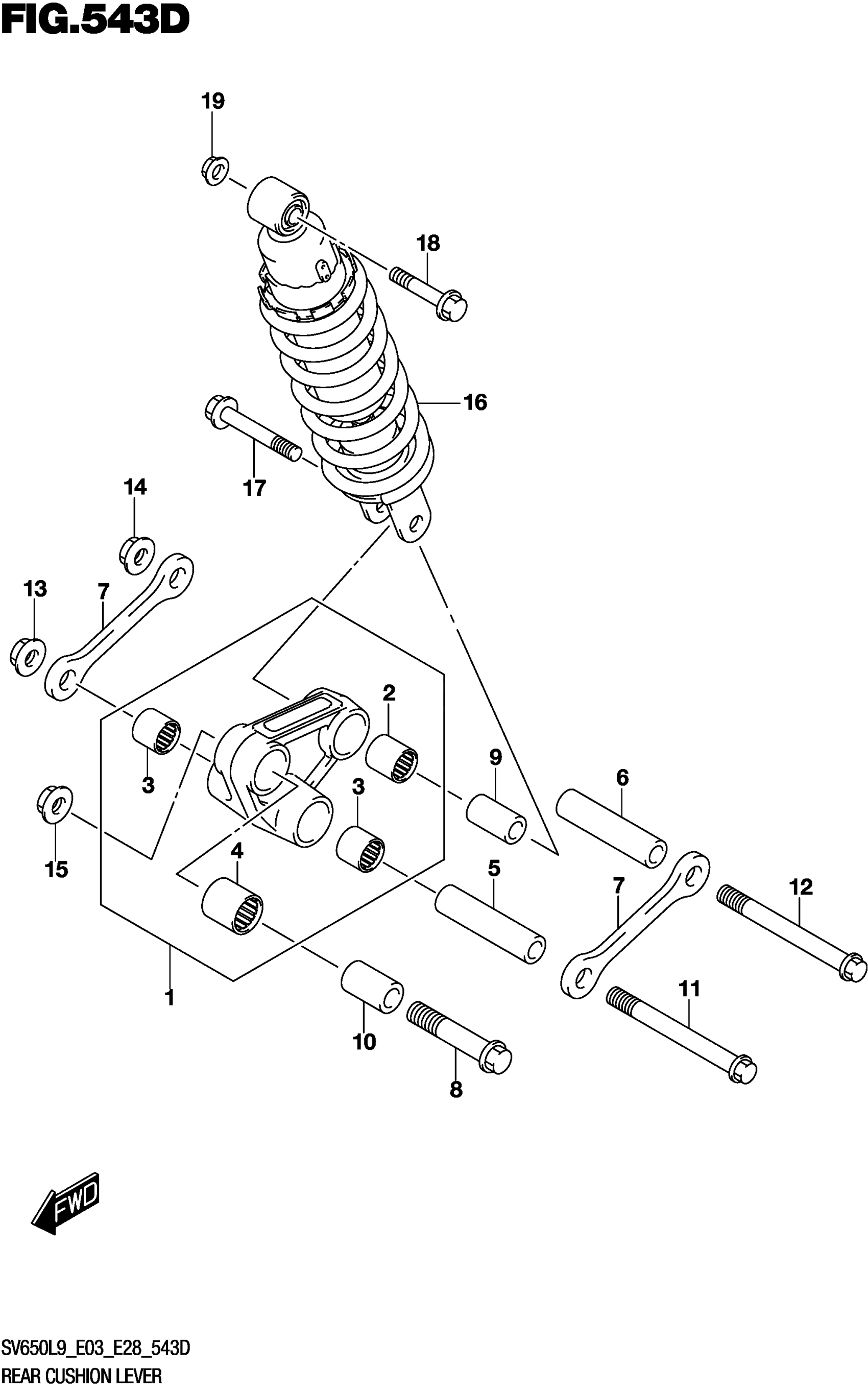

Suzuki SV650AL9 (2019) REAR CUSHION LEVER (SV650AL9 E33) Diagram

#

Description
Price

1

LEVER SET,RR CUSHION This part replaces 62600-44880.

62600-44882

$381.70

2

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

3

.BEARING (17X24X25)

09263-17053

$21.66

4

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$17.82

5

SPACER,RR CUSHION LEVER CTR (

62626-17G00

$25.33

6

SPACER,RR CUSHION LEVER CTR (

62626-17G00

$25.33

7

ROD,RR CUSHION LEVER

62641-44H00

$33.58

8

BOLT (12X62)

62668-42A02

$10.67

9

SPACER,RR CUSHION LEVER (10X1

62684-40A10

$12.15

10

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$15.61

11

BOLT (12X96)

09103-12034

$10.30

12

BOLT (12X96)

09103-12034

$10.30

13

NUT

09159-12056

$7.37

14

NUT

09159-12056

$7.37

15

NUT

09159-12056

$7.37

16

ABSORBER ASSY,REAR SHOCK (BLA This part replaces 62100-44HB0-019.

62100-44HB1-019

$510.80

17

BOLT (10X48) | LOWER

09103-10126

$4.50

18

BOLT (10X52) | UPPER

09103-10213

$5.77

19

NUT (M10)

09159-10115

$3.55
