Description

Price

1

CALIPER ASSY,REAR

69100-18K00-999

$427.45

2

.BLEEDER

59121-01A00

$8.35

3

.CAP,BLEEDER

59122-46H00

$4.36

4

.PLUG,PIN

59146-21E10

$5.88

5

.BOOT

59303-14500

$5.29

6

.PISTON SET

69101-44860

$68.15

7

..SEAL SET,PISTON

69100-04820

$8.64

8

.PIN,BOLT

59305-36E00

$17.91

9

.SPRING,PAD

69115-06G00

$13.29

10

.PIN,PAD

69141-40F00

$29.01

11

.BRACKET

69150-18K00

$76.26

12

.BOLT

69182-04F00

$8.93

13

.SLEEVE

69185-04F00

$20.88

14

.BOOT,SLEEVE

69186-04F00

$13.01

15

.PAD SET

69101-44850

$61.98

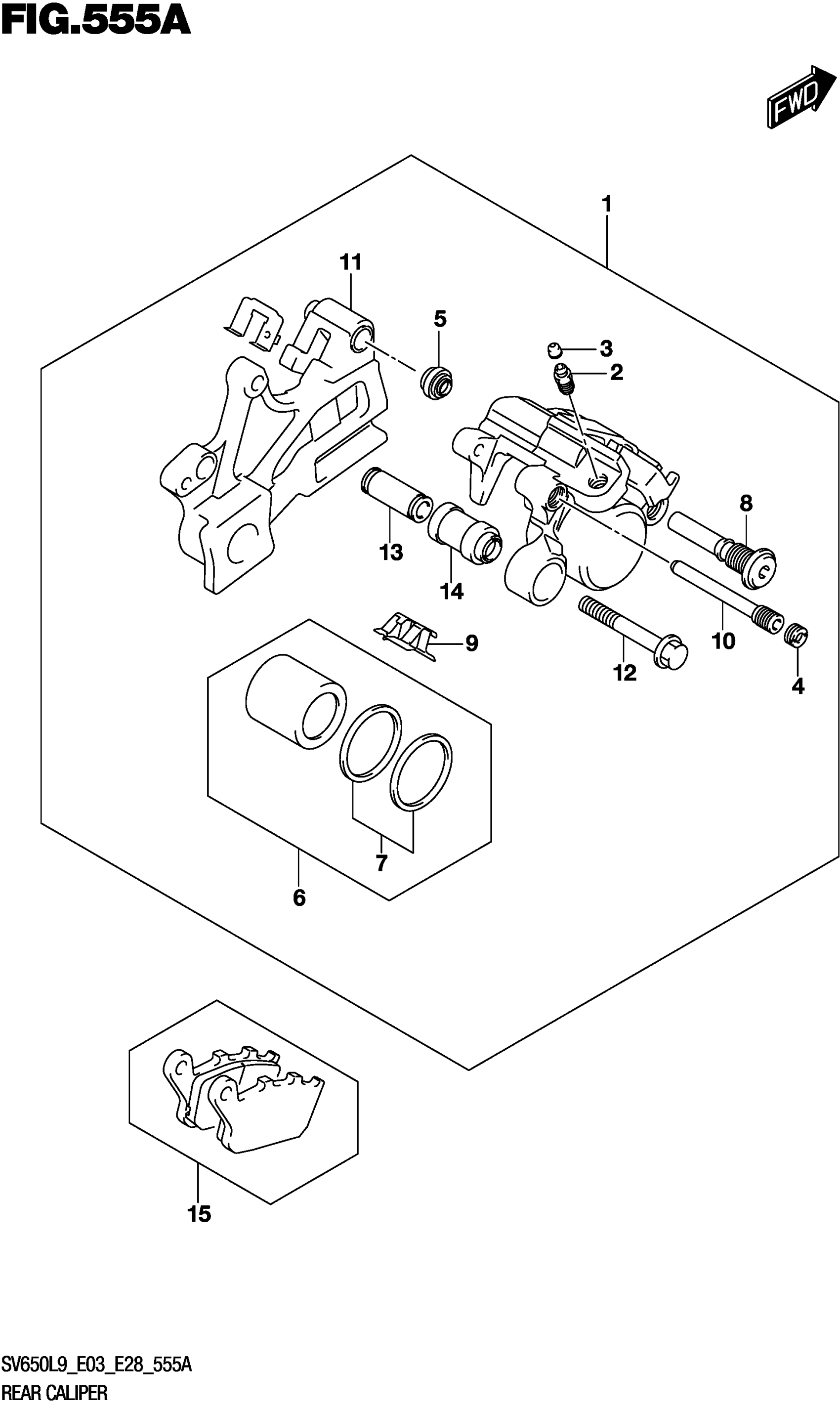

Suzuki SV650AL9 (2019) REAR CALIPER Diagram
