2019 Suzuki SV650AL9 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2019 Suzuki SV650AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

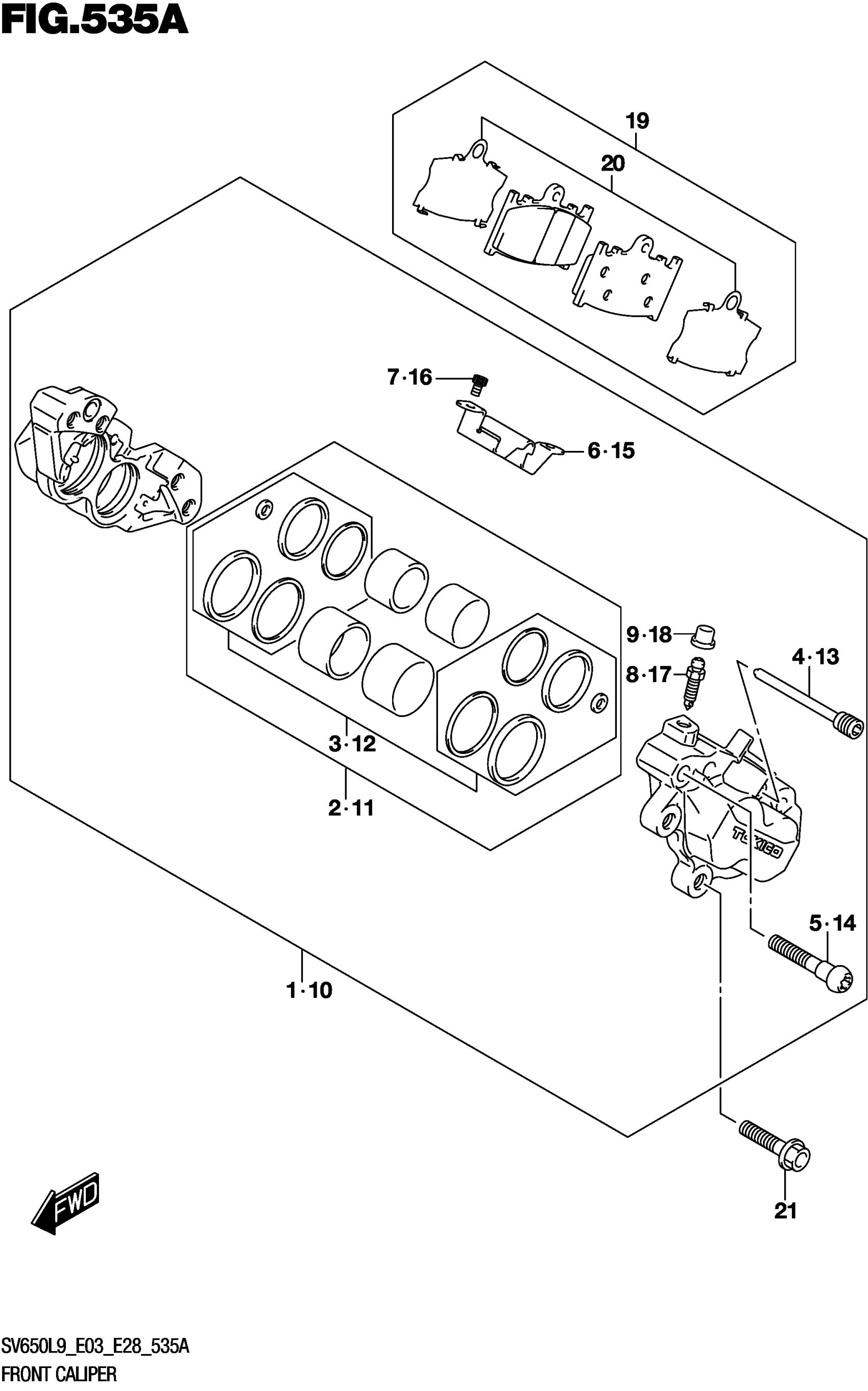

2019 Suzuki SV650AL9 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,FR,R

59100-35F60-999

1
Out of stock

2

.PISTON SET

59300-34811

1
Out of stock

3

..SEAL SET,PISTON

59300-34821

1
Out of stock

4

.PIN,PAD

59141-40F00

1
Out of stock

5

.BOLT

59145-18G00

4

$11.20

In stock

6

.COVER,CALIPER DUST

59152-35F00

1
Out of stock

7

.SCREW

59153-22D00

2
Out of stock

8

.BLEEDER

59121-18410

1
Out of stock

9

.CAP,BLEEDER PLUG (M10X1)

55156-66310

1
Out of stock

10

CALIPER ASSY,FR,L

59300-35F60-999

1
Out of stock

11

.PISTON SET

59300-34811

1
Out of stock

12

..SEAL SET,PISTON

59300-34821

1
Out of stock

13

.PIN,PAD

59141-40F00

1
Out of stock

14

.BOLT

59145-18G00

4

$11.20

In stock

15

.COVER,CALIPER DUST

59151-35F00

1
Out of stock

16

.SCREW

59153-22D00

2
Out of stock

17

.BLEEDER

59121-18410

1
Out of stock

18

.CAP,BLEEDER PLUG (M10X1)

55156-66310

1
Out of stock

19

PAD SHIM SET

59100-35800

2
Out of stock

20

.SHIM PAD

59171-35F80

1
Out of stock

21

BOLT (8X28)

09103-08359

4
Out of stock
