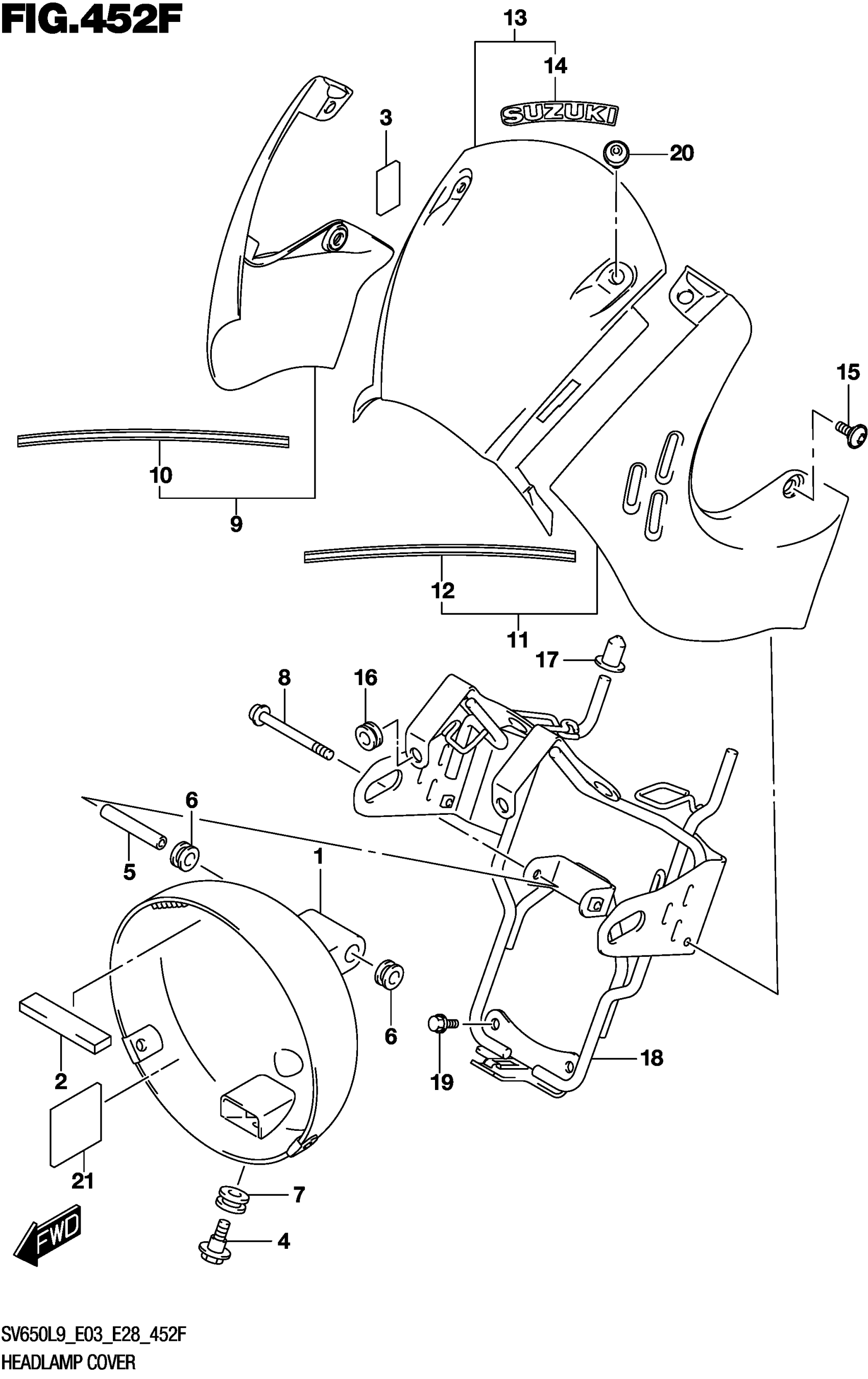

Suzuki SV650AL9 (2019) HEADLAMP COVER (SV650XAL9 E33) Diagram

#

Description
Price

1

COVER,HEADLAMP

51811-18K01

$40.75

2

CUSHION (15X70X7)

51827-13G00

$4.77

3

CUSHION (18X43X5)

47613-44H00

$7.67

4

SCREW (6X22.5)

09139-06118

$3.05

5

SPACER (6.5X9X51)

09180-06368

$8.77

6

CUSHION (9X18X9.5)

09320-09016

$1.97

7

CUSHION

09320-10501

$4.85

8

BOLT

07120-0665B

$4.92

9

COVER, METER RH (WHITE)

51820-18K00-YWW

$99.57

10

(RED/WHITE)

68725-18K00-BUJ

Unavailable

10

(RED/WHITE)

68725-18K00-BUJ

Unavailable

11

COVER, METER LH (WHITE)

51830-18K00-YWW

$97.72

12

(RED/WHITE)

68735-18K00-BUJ

Unavailable

12

(RED/WHITE)

68735-18K00-BUJ

Unavailable

13

COVER,METER CENTER (BLACK) This part replaces 51810-18K00-YVB.

51810-18K01-YVB

$97.73

14

.EMBLEM,SUZUKI (SILVER) This part replaces 68161-16G00-YD8.

68161-16G01-YD8

Unavailable

15

BOLT (5X13)

09139-05074

$2.58

16

CUSHION (6X18X6)

09320-06504

$4.47

17

CUSHION,HEADLAMP BRACE

51831-21D00

$4.31

18

BRACE,HEADLAMP

51850-18K10

$243.62

19

BOLT (6X12)

09103-06525

$1.49

20

SCREW (5X18)

09139-05504

$3.38

21

CUSHION,HELMET BOX (60X60X3.0

92213-33G00

$7.95
