Description

Price

1

COVER,HEADLAMP

51811-18K01

$43.27

2

CUSHION (15X70X7)

51827-13G00

$4.22

3

CUSHION (18X43X5)

47613-44H00

$6.80

4

SCREW (6X22.5)

09139-06118

$3.25

5

SPACER (6.5X9X51)

09180-06368

$8.07

6

CUSHION (9X18X9.5)

09320-09016

$1.97

7

CUSHION

09320-10501

$6.23

8

BOLT

07120-0665B

$4.52

9

COVER, METER RH (WHITE)

51820-18K00-YWW

$88.65

10

(RED/WHITE)

68725-18K00-BUJ

Unavailable

10

(RED/WHITE)

68725-18K00-BUJ

Unavailable

11

COVER, METER LH (WHITE)

51830-18K00-YWW

$87.00

12

(RED/WHITE)

68735-18K00-BUJ

Unavailable

12

(RED/WHITE)

68735-18K00-BUJ

Unavailable

13

COVER,METER CENTER (BLACK) This part replaces 51810-18K00-YVB.

51810-18K01-YVB

$87.00

14

.EMBLEM,SUZUKI (SILVER) This part replaces 68161-16G00-YD8.

68161-16G01-YD8

$7.20

15

BOLT (5X13)

09139-05074

$2.61

16

CUSHION (6X18X6)

09320-06504

$4.96

17

CUSHION,HEADLAMP BRACE

51831-21D00

$4.58

18

BRACE,HEADLAMP

51850-18K10

$218.92

19

BOLT (6X12)

09103-06525

$1.49

20

SCREW (5X18)

09139-05504

$3.70

21

CUSHION,HELMET BOX (60X60X3.0

92213-33G00

$5.99

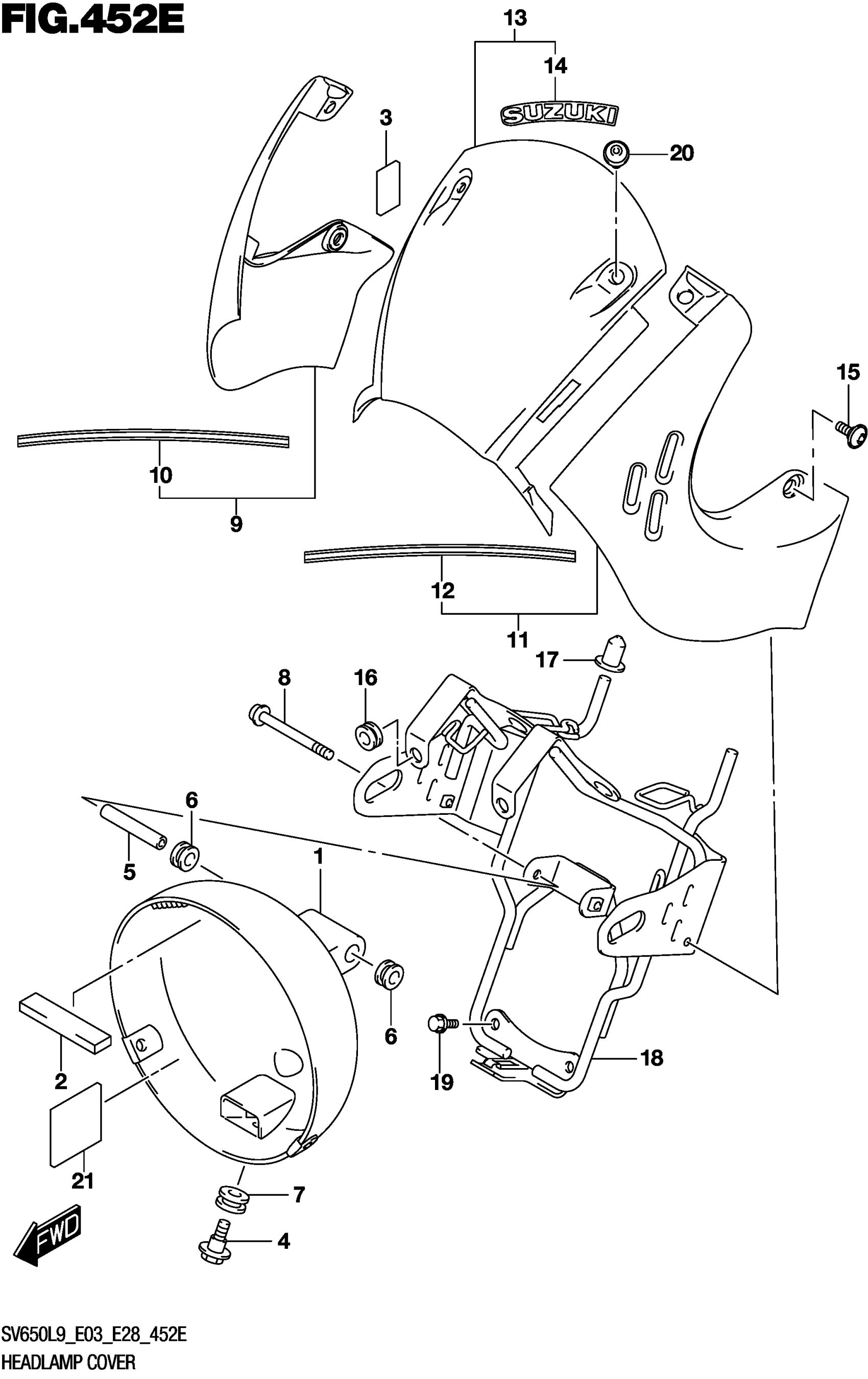

Suzuki SV650AL9 (2019) HEADLAMP COVER (SV650XAL9 E28) Diagram

COVER,HEADLAMP

CUSHION (15X70X7)

CUSHION (18X43X5)

SCREW (6X22.5)

SPACER (6.5X9X51)

CUSHION (9X18X9.5)

CUSHION

BOLT

COVER, METER RH (WHITE)

(RED/WHITE)

(RED/WHITE)

COVER, METER LH (WHITE)

(RED/WHITE)

(RED/WHITE)

COVER,METER CENTER (BLACK) This part replaces 51810-18K00-YVB.

.EMBLEM,SUZUKI (SILVER) This part replaces 68161-16G00-YD8.

BOLT (5X13)

CUSHION (6X18X6)

CUSHION,HEADLAMP BRACE

BRACE,HEADLAMP

BOLT (6X12)

SCREW (5X18)

CUSHION,HELMET BOX (60X60X3.0
