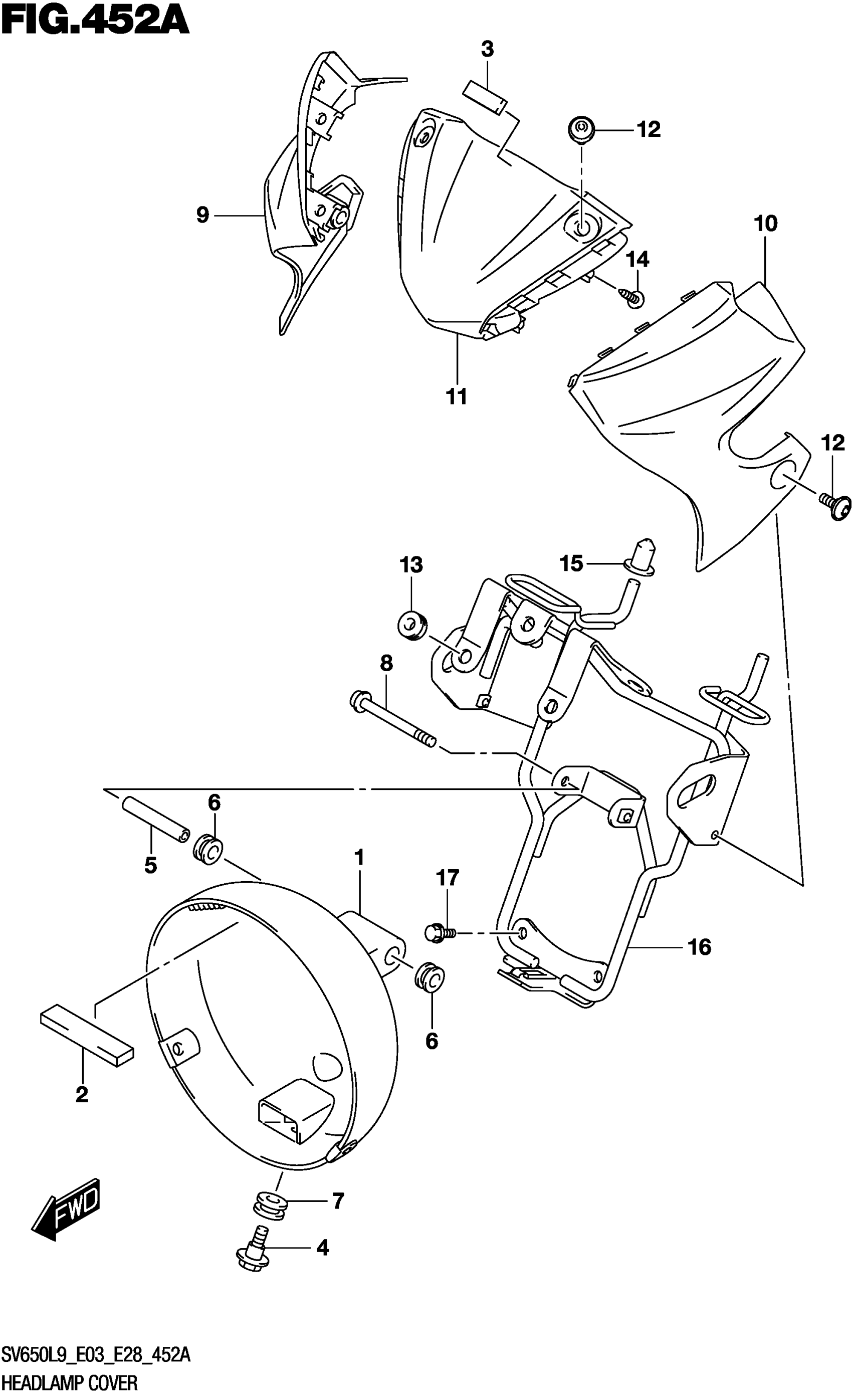

Suzuki SV650AL9 (2019) HEADLAMP COVER (SV650L9 E03) Diagram

#

Description
Price

1

COVER,HEADLAMP

51811-18K01

$43.27

2

CUSHION (15X70X7)

51827-13G00

$4.22

3

CUSHION,METER COVER (10X30X5)

51827-18K00

$4.95

4

SCREW (6X22.5)

09139-06118

$3.25

5

SPACER (6.5X9X51)

09180-06368

$8.07

6

CUSHION (9X18X9.5)

09320-09016

$1.97

7

CUSHION

09320-10501

$6.23

8

BOLT

07120-0665B

$4.52

9-1

COVER, METER RH (GRAY) | FOR QEB

51821-18K00-QEB

$84.25

9-2

COVER, METER RH (BLACK) | FOR YVB,AGT

51821-18K00-YVB

$84.72

10-1

COVER, METER LH (GRAY) | FOR QEB

51831-18K00-QEB

Unavailable

10-2

COVER, METER LH (BLACK) | FOR YVB,AGT

51831-18K00-YVB

$84.72

11

COVER,METER CENTER

51841-18K00

$7.78

12

BOLT (5X13)

09139-05074

$2.61

13

CUSHION (6X18X6)

09320-06504

$4.96

14

SCREW

03541-0512A

$1.49

15

CUSHION,HEADLAMP BRACE

51831-21D00

$4.58

16

BRACE,HEADLAMP This part replaces 51850-18K00.

51850-18K20

$182.20

17

BOLT (6X12)

09103-06525

$1.49

18

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

18

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AGT=YWW(WHITE),YVB(BLACK)

SPECIAL NOTE

Unavailable
