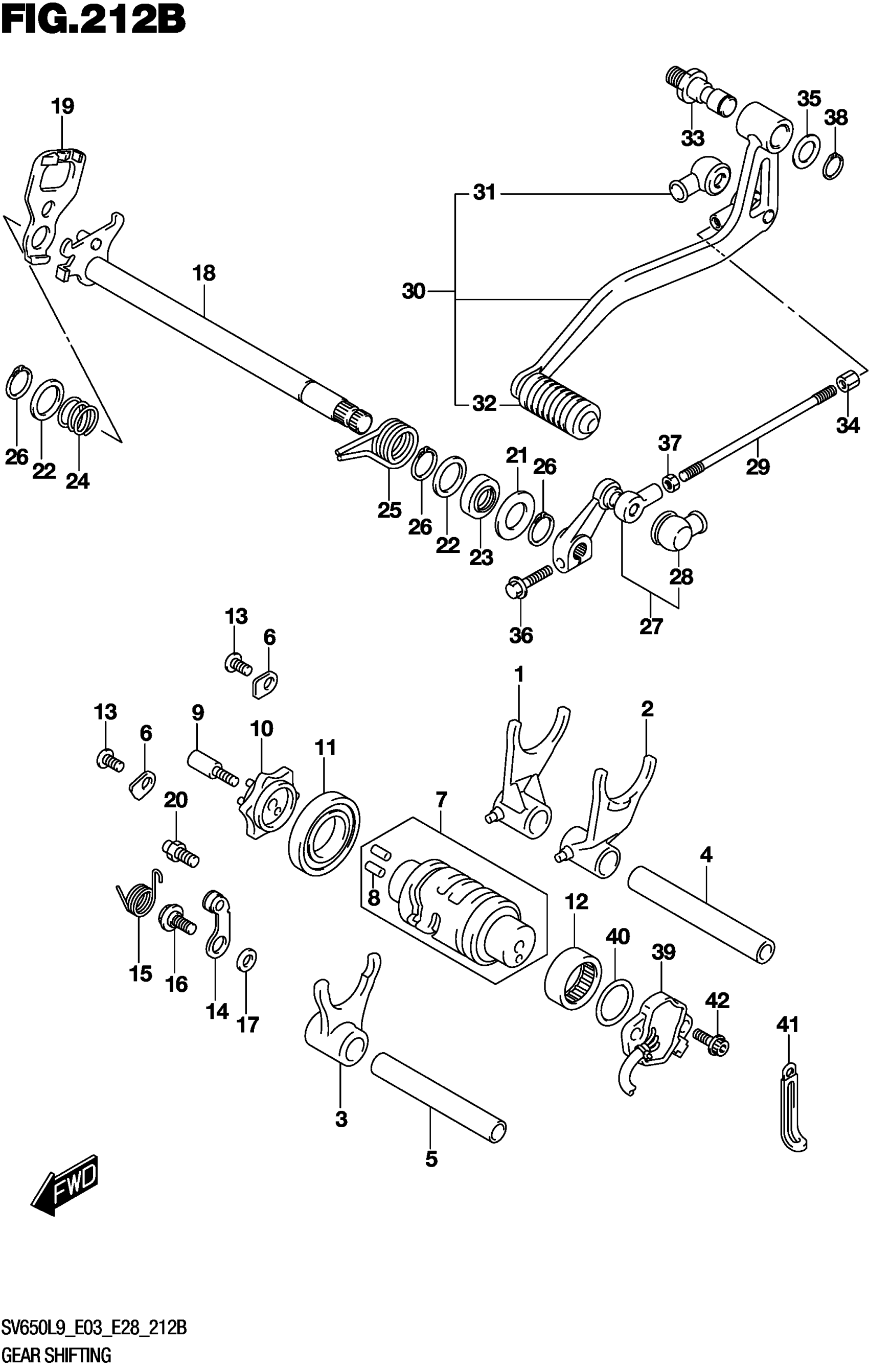

Suzuki SV650AL9 (2019) GEAR SHIFTING (SV650L9 E33) Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-42E20

Unavailable

2

FORK,GEAR SHIFT NO.2

25221-42E20

Unavailable

3

FORK,GEAR SHIFT NO.3

25231-42E20

Unavailable

4

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$25.68

5

SHAFT,GEAR SHIFT FORK NO.1

25411-44B00

$31.70

6

RETAINER

24741-21A00

$2.81

7

CAM,GEAR SHIFT

25310-19F00

Unavailable

8

PIN (4X13.8)

04221-04089

$1.49

9

BOLT,GEAR SHIFT CAM PLATE

25312-42F01

$7.95

10

PLATE,GEAR SHIFT CAM

25381-19F20

$57.77

11

BEARING (25X47X8)

09262-25006

$25.54

12

BEARING (25X32X12)

09263-25018

$21.39

13

SCREW

02112-0612A

$1.49

14

STOPPER, SHIFT CAM

25350-35F00

$34.15

15

SPRING,SHIFT

25355-35F01

$3.97

16

BOLT (6X14.3)

09111-06041

$2.61

17

WASHER

08211-06141

$1.59

18

SHAFT,GEAR SHIFT

25510-19F10

$116.65

19

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$24.37

20

STOPPER,GEAR SHIFT ARM

25671-01011

$4.48

21

WASHER (14X29X0.8)

09160-14016

$1.93

22

SHIM (14X22X1.0)

09181-14167

$2.53

23

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

24

SPRING

09440-17009

$1.71

25

SPRING

09444-20001

$5.24

26

CIRCLIP

08331-3114A

$1.91

27

ARM,GEAR SHIFT LINK This part replaces 25520-22A10.

25520-22A11

$53.80

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

29

ROD,GEAR SHIFT LINK

25525-44H00

$12.28

30

LEVER ASSY,GEAR SHIFT This part replaces 25600-44H01.

25600-44H02

$64.91

31

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

32

.RUBBER,GEAR SHIFT PEDAL

25652-20C00

$5.44

33

SHAFT,GEAR SHIFT LEVER

25617-03F10

$12.33

34

NUT

09140-06025

$2.05

35

WASHER (12.5X20X1.0)

09160-12011

$1.54

36

BOLT (6X20)

09103-06527

$1.85

37

NUT

08310-0006A

$1.84

38

CIRCLIP

08331-3112A

$1.78

39

SENSOR ASSY,GEAR POSITION This part replaces 37730-44H01.

37730-44H11

$124.57

40

O-RING (D:2.4,ID:26.2)

09280-26005

$2.30

41

CLAMP (L:65) This part replaces 09404-08418.

09404-08421

$2.07

42

BOLT (5X16)

09106-05023

$2.92
