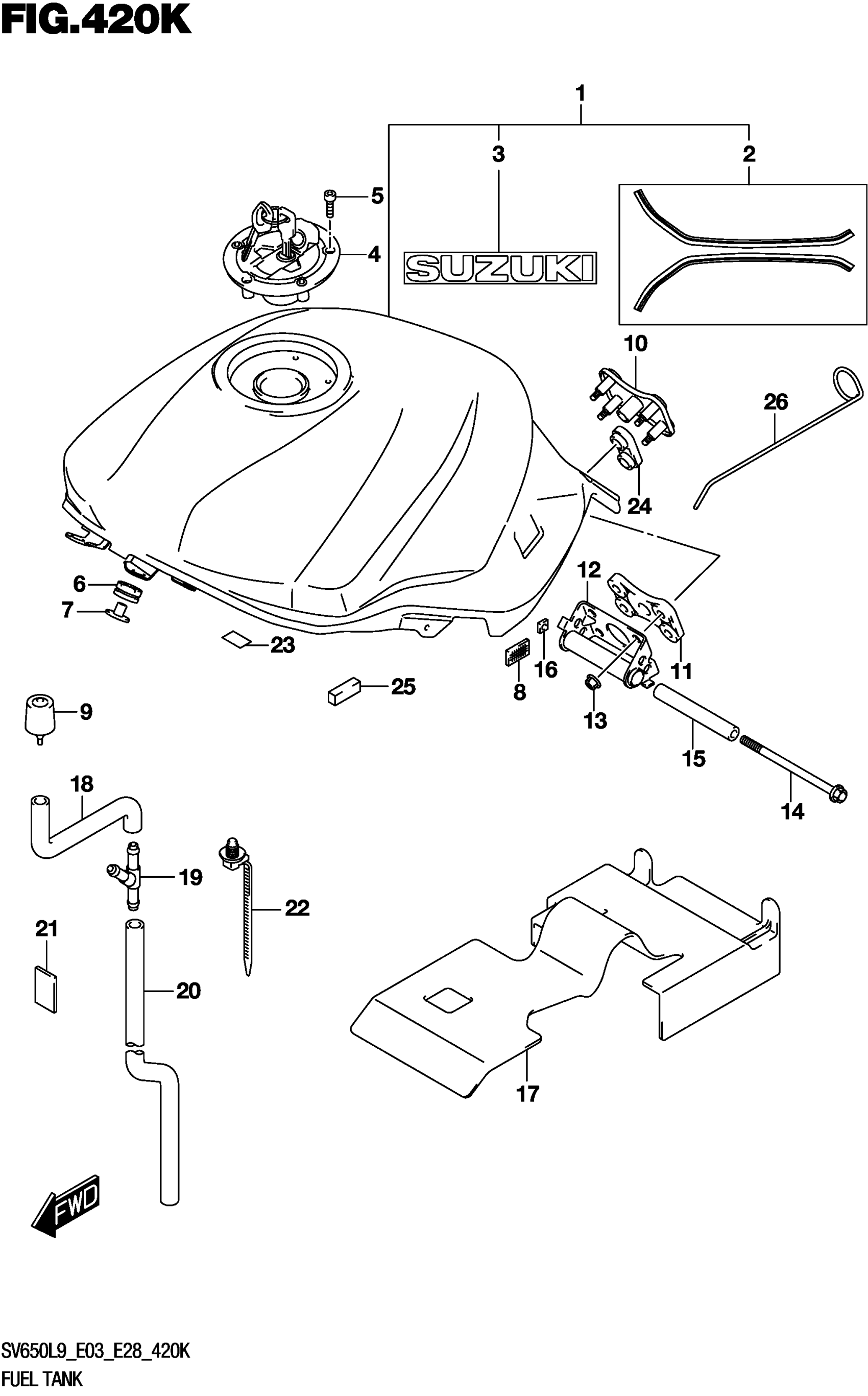

Suzuki SV650AL9 (2019) FUEL TANK (SV650XAL9 E33) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK/WHITE)

44100-18K80-AGT

$1,000.37

2

.TAPE SET, FUEL TANK

68110-18K10-BQ4

Unavailable

3

.EMBLEM, "SUZUKI" (WHITE)

68111-47C10-YWW

$16.65

4

CAP SET,FUEL TANK FILLER

44200-17820

$218.08

5

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

6

CUSHION,FUEL TANK FRONT

44511-18K00

$6.47

7

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

8

FASTENER (33X25X2.6)

44572-13G00

$11.07

9

CUSHION,FUEL TANK RR This part replaces 44542-29G00.

44542-29G01

$7.72

10

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

11

CUSHION,FUEL TANK RR LWR

44542-18K00

$17.95

12

BRACKET,FUEL TANK RR

44530-44H00

Unavailable

13

NUT

08319-3106A

$2.03

14

BOLT (6X100)

09103-06060

$2.50

15

SPACER,FUEL TANK

44561-35F00

$13.88

16

NUT

08318-1106A

Unavailable

17

SHEET,HEAT SHIELD RUBBER

44191-18K00

$57.25

18

HOSE,FUEL TANK DRAIN NO.1

44423-18K01

$9.62

19

JOINT,DRAIN HOSE

09367-08010

Unavailable

20

HOSE,FUEL TANK DRAIN NO.2

44423-18K11

$23.25

21

SHIELD,DRAIN HOSE HEAT

44427-18K10

$17.18

22

CLAMP (L:170)

09407-17403

$4.91

23

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

24

CUSHION,FUEL TANK RR UPR

44541-18K00

Unavailable

25

CUSHION, FUEL TANK COVER

44281-18K00

Unavailable

26

STAY, FUEL TANK | OPT

44560-23H00

$44.95
