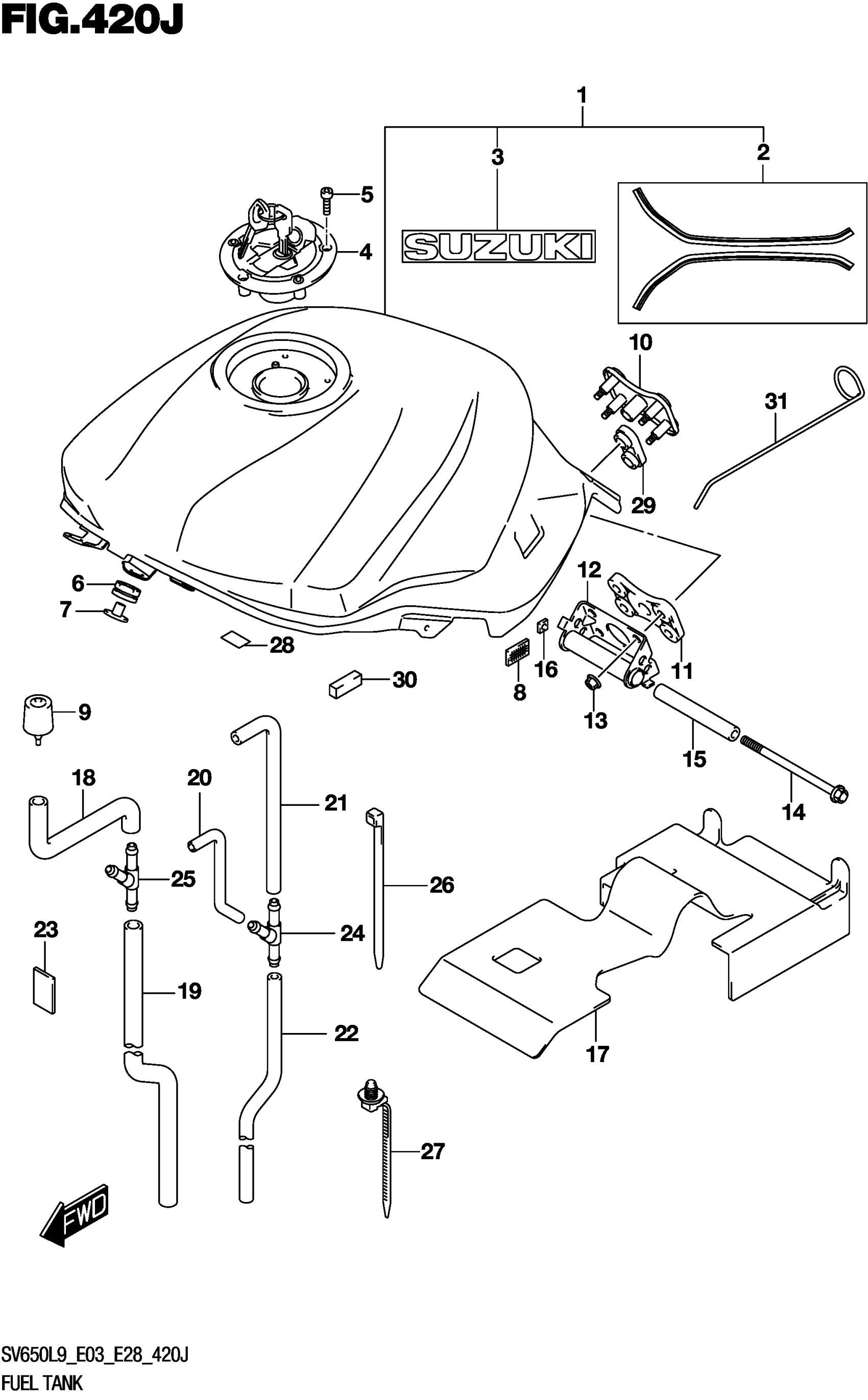

Suzuki SV650AL9 (2019) FUEL TANK (SV650XAL9 E28) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK/WHITE)

44100-18K80-AGT

$1,092.20

2

.TAPE SET, FUEL TANK

68110-18K10-BQ4

Unavailable

3

.EMBLEM, "SUZUKI" (WHITE)

68111-47C10-YWW

$18.80

4

CAP SET,FUEL TANK FILLER

44200-17820

$242.68

5

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

6

CUSHION,FUEL TANK FRONT

44511-18K00

$7.30

7

SPACER,FUEL TANK FRONT

44512-04K00

$7.97

8

FASTENER (33X25X2.6)

44572-13G00

$10.13

9

CUSHION,FUEL TANK RR This part replaces 44542-29G00.

44542-29G01

$7.27

10

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

11

CUSHION,FUEL TANK RR LWR

44542-18K00

$20.25

12

BRACKET,FUEL TANK RR

44530-44H00

Unavailable

13

NUT

08319-3106A

$2.01

14

BOLT (6X100)

09103-06060

$2.61

15

SPACER,FUEL TANK

44561-35F00

$13.06

16

NUT

08318-1106A

Unavailable

17

SHEET,HEAT SHIELD RUBBER

44191-18K00

$64.62

18

HOSE,FUEL TANK DRAIN NO.1

44423-18K01

$10.87

19

HOSE,FUEL TANK DRAIN NO.2

44423-18K11

$26.23

20

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$15.48

21

HOSE,FUEL TANK BREATHER NO.2

44424-18K02

$10.87

22

HOSE,FUEL TANK BRTHR NO.2

44424-18K11

$26.80

23

SHIELD,DRAIN HOSE HEAT

44427-18K00

Unavailable

24

3 WAY

09367-06007

$3.17

25

JOINT,DRAIN HOSE

09367-08010

Unavailable

26

CLAMP (L:145)

09407-14407

$2.80

27

CLAMP (L:170)

09407-17403

$4.63

28

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.42

29

CUSHION,FUEL TANK RR UPR

44541-18K00

Unavailable

30

CUSHION, FUEL TANK COVER

44281-18K00

Unavailable

31

STAY, FUEL TANK | OPT

44560-23H00

$50.73
