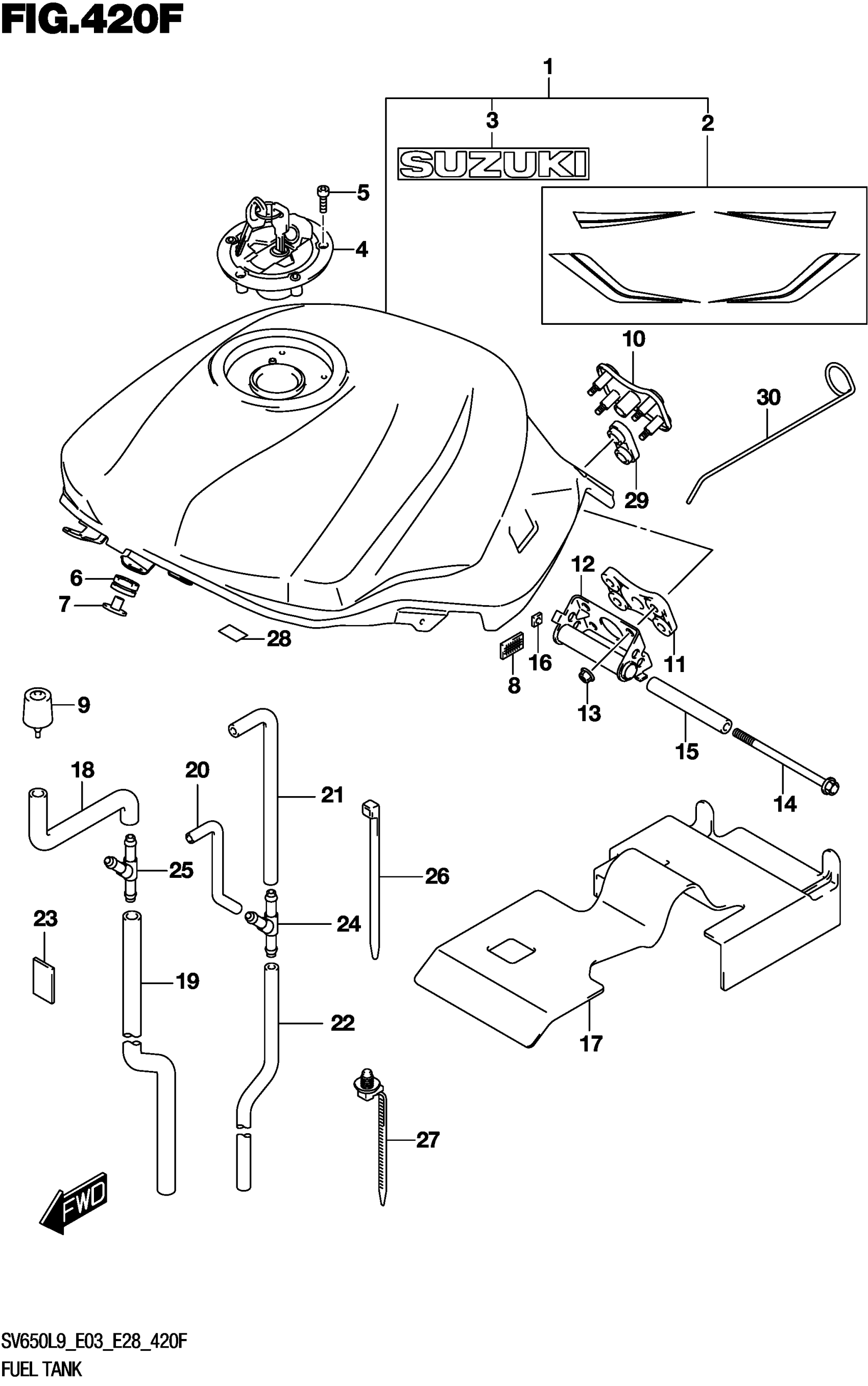

Suzuki SV650AL9 (2019) FUEL TANK (SV650AL9 E28) (FOR AGT) Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE)

44100-18K90-YWW

$1,019.23

2

.TAPE SET, FUEL TANK

68110-18K20-BF5

$115.22

3

.EMBLEM (BLACK)

68111-47C10-019

$22.97

4

CAP SET,FUEL TANK FILLER

44200-17820

$218.08

5

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

6

CUSHION,FUEL TANK FRONT

44511-18K00

$6.47

7

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

8

FASTENER (33X25X2.6)

44572-13G00

$11.07

9

CUSHION,FUEL TANK RR This part replaces 44542-29G00.

44542-29G01

$7.72

10

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

11

CUSHION,FUEL TANK RR LWR

44542-18K00

$17.95

12

BRACKET,FUEL TANK RR

44530-44H00

Unavailable

13

NUT

08319-3106A

$2.03

14

BOLT (6X100)

09103-06060

$2.50

15

SPACER,FUEL TANK

44561-35F00

$13.88

16

NUT

08318-1106A

Unavailable

17

SHEET,HEAT SHIELD RUBBER

44191-18K00

$57.25

18

HOSE,FUEL TANK DRAIN NO.1

44423-18K01

$9.62

19

HOSE,FUEL TANK DRAIN NO.2

44423-18K11

$23.25

20

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$13.72

21

HOSE,FUEL TANK BREATHER NO.2

44424-18K02

$9.62

22

HOSE,FUEL TANK BRTHR NO.2

44424-18K11

$23.73

23

SHIELD,DRAIN HOSE HEAT

44427-18K00

Unavailable

24

3 WAY

09367-06007

$3.46

25

JOINT,DRAIN HOSE

09367-08010

Unavailable

26

CLAMP (L:145)

09407-14407

$3.57

27

CLAMP (L:170)

09407-17403

$4.91

28

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

29

CUSHION,FUEL TANK RR UPR

44541-18K00

Unavailable

30

STAY, FUEL TANK | OPT

44560-23H00

$44.95
