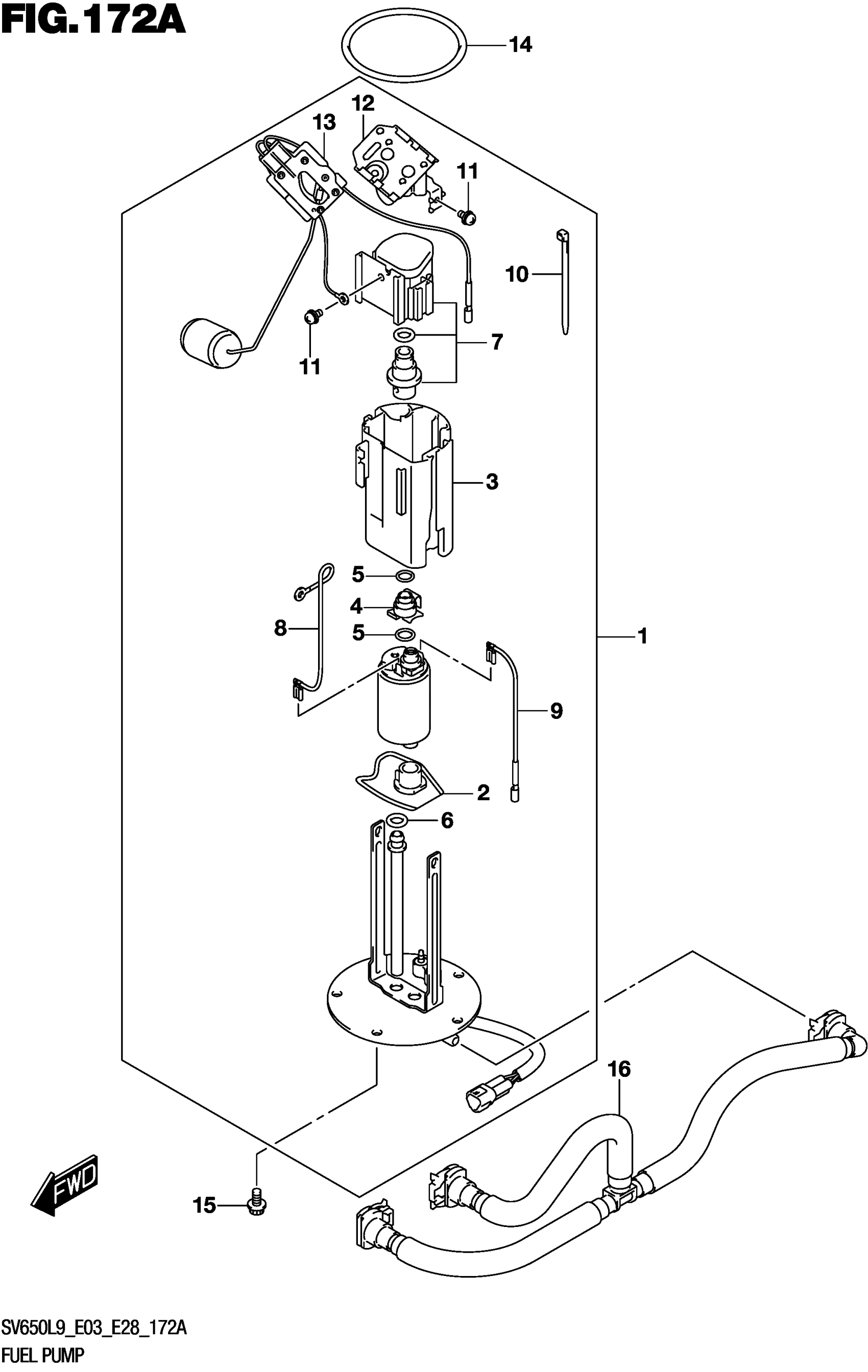

Suzuki SV650AL9 (2019) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL This part replaces 15100-18K00.

15100-18K02

$514.67

2

.STRAINER,FUEL PUMP

15420-31J00

$41.53

3

.CUP

15111-27G00

$42.43

4

.JOINT

15112-05H00

$28.12

5

.O-RING

15113-05H00

$19.98

6

.O-RING

15113-35F00

$8.91

7

.REGULATOR,FUEL

15610-14J00

$171.30

8

.WIRE,EARTH

15114-14J00

Unavailable

9

.WIRE,LEAD

15115-08J00

Unavailable

10

.BINDER

15151-31J00

Unavailable

11

.SCREW

15116-10F00

$5.58

12

.GAUGE SET,FUEL LEVEL SENDER This part replaces 15181-18K00.

34800-18K02

$133.88

13

.GAUGE SET,FUEL LEVEL SENDER This part replaces 34810-18K00.

34800-18K02

$133.88

14

O-RING

15201-35F00

$27.60

15

BOLT

07120-0612A

$2.50

16

HOSE,FUEL

15810-18K00

$132.08
