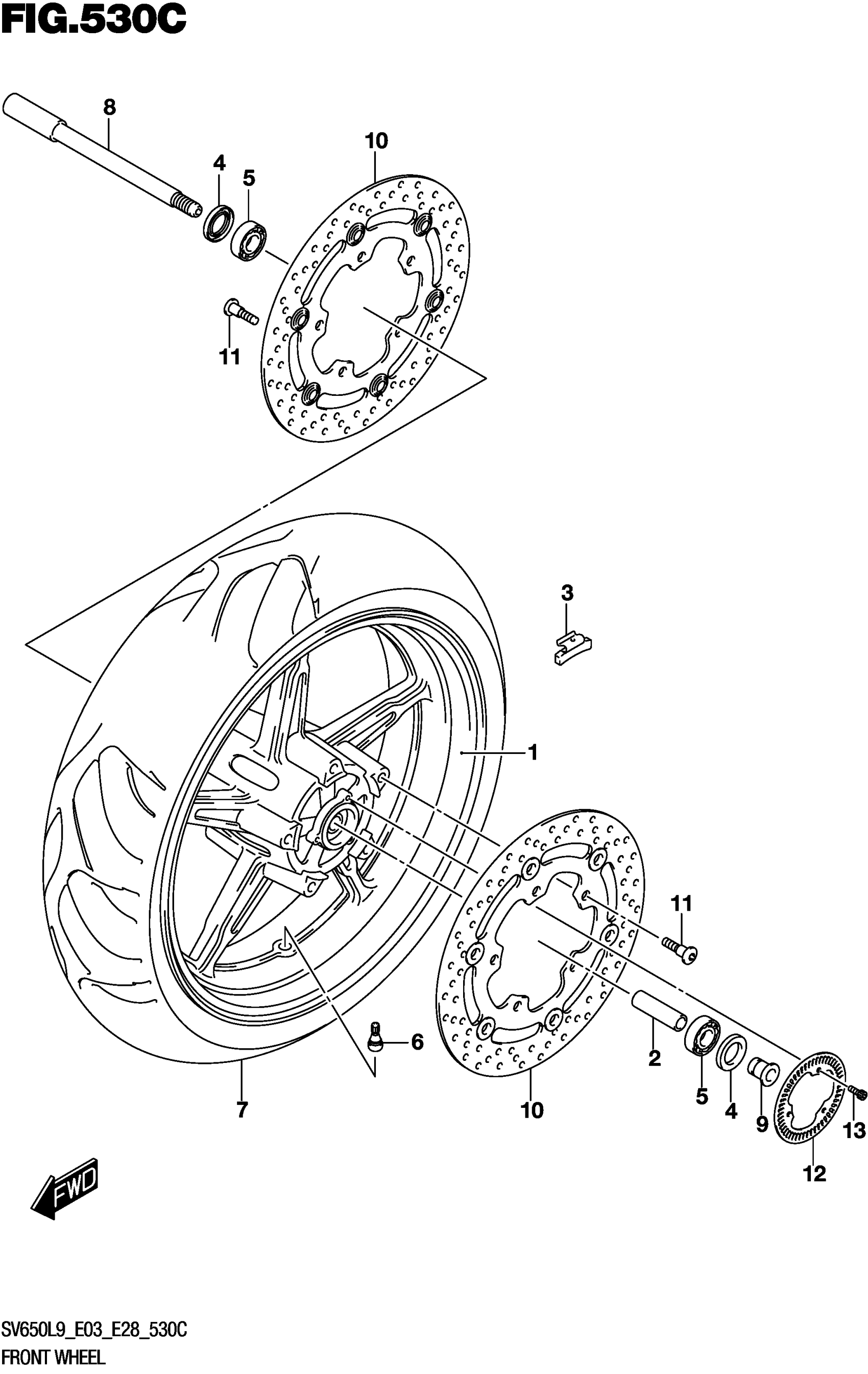

Suzuki SV650AL9 (2019) FRONT WHEEL (SV650AL9 E28) Diagram

#

Description
Price

1-1

WHEEL,FRONT (RED) | FOR YVB This part replaces 54111-18K00-QGY.

54111-18K10-QGY

$575.58

1-1

WHEEL,FRONT (RED) This part replaces 54111-18K00-QGY.

54111-18K10-QGY

$575.58

1-2

WHEEL,FRONT (BLUE) | FOR YVB,AGT This part replaces 54111-18K00-YLY.

54111-18K10-YLY

$594.92

1-2

WHEEL,FRONT (BLUE) This part replaces 54111-18K00-YLY.

54111-18K10-YLY

$594.92

2

SPACER,FR HUB BEARING

54731-44H00

$24.85

3-1

BALANCER,WHEEL (10G) | 10G

55411-22H00

$8.60

3-2

BALANCER,WHEEL (20G) | 20G

55412-22H00

$10.07

3-3

BALANCER,WHEEL (30G) | 30G

55413-22H00

$11.47

4

SEAL,OIL (22X40X7)

09285-22004

$6.02

5

BEARING This part replaces 08123-62037.

08133-6203B

$17.61

6

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

7

TIRE,FRONT (120/70ZR17 M/C 58 | SPORTMAX This part replaces 55110-18K00.

55110-18K02

$221.28

7

TIRE,FRONT (120/70ZR17 M/C 58 | ROADSMART3 This part replaces 55110-18K00.

55110-18K02

$221.28

7

TIRE,FRONT (120/70ZR17 M/C 58 | DUNLOP This part replaces 55110-18K00.

55110-18K02

$221.28

8

AXLE,FR

54711-08F00

$104.18

9

SPACER,FR AXLE,L

54751-44H00

$17.03

10

DISC,FR BRAKE

59210-38G10

$424.60

11

BOLT (8X21)

09106-08160

$3.57

12

RING,SPEED SENSOR FR (50T)

54162-44H00

$23.73

13

BOLT

07130-0512A

$2.19

14

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

14

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AGT=YWW(WHITE),YVB(BLACK)

SPECIAL NOTE

Unavailable
