Description

Price

1

CYLINDER ASSY,FRONT MASTER

59600-18G10

$304.52

2

.PISTON & CUP SET

59600-45870

$59.52

3

..BOOT

59666-44300

$5.30

4

.O-RING

69686-34200

$2.80

5

.CONNECTOR

69672-00B20

$6.42

6

.CIRCLIP

69674-00B20

$3.73

7

.COVER,DUST

59673-17C00

$7.92

8

.HOLDER

59671-32F00

$17.87

9

.BOLT (6X22)

59675-02FA0

$3.49

10

TANK ASSY,FR RESERVOIR

59740-47H10

$63.26

11

.DIAPHRAGM

59667-18441

$9.41

12

.PLATE,DIAPHRAGM

59668-18441

$4.26

13

.CAP

59669-47H00

$26.85

14

PLATE,RESERVOIR TANK CAP

59743-17C00

$8.52

15

SCREW

02142-0410A

$1.22

16

BOLT (6X16)

09103-06526

$1.66

17

BRACKET,FR RESERVOIR TANK

59751-18K00

$14.78

18

NUT (6X12)

08316-1006A

$2.19

19

HOSE,FRONT RESERVOIR TANK This part replaces 59731-01H00.

59731-47H00

$15.12

20

CLAMP,RESERVOIR TANK FR

59735-17C00

$4.51

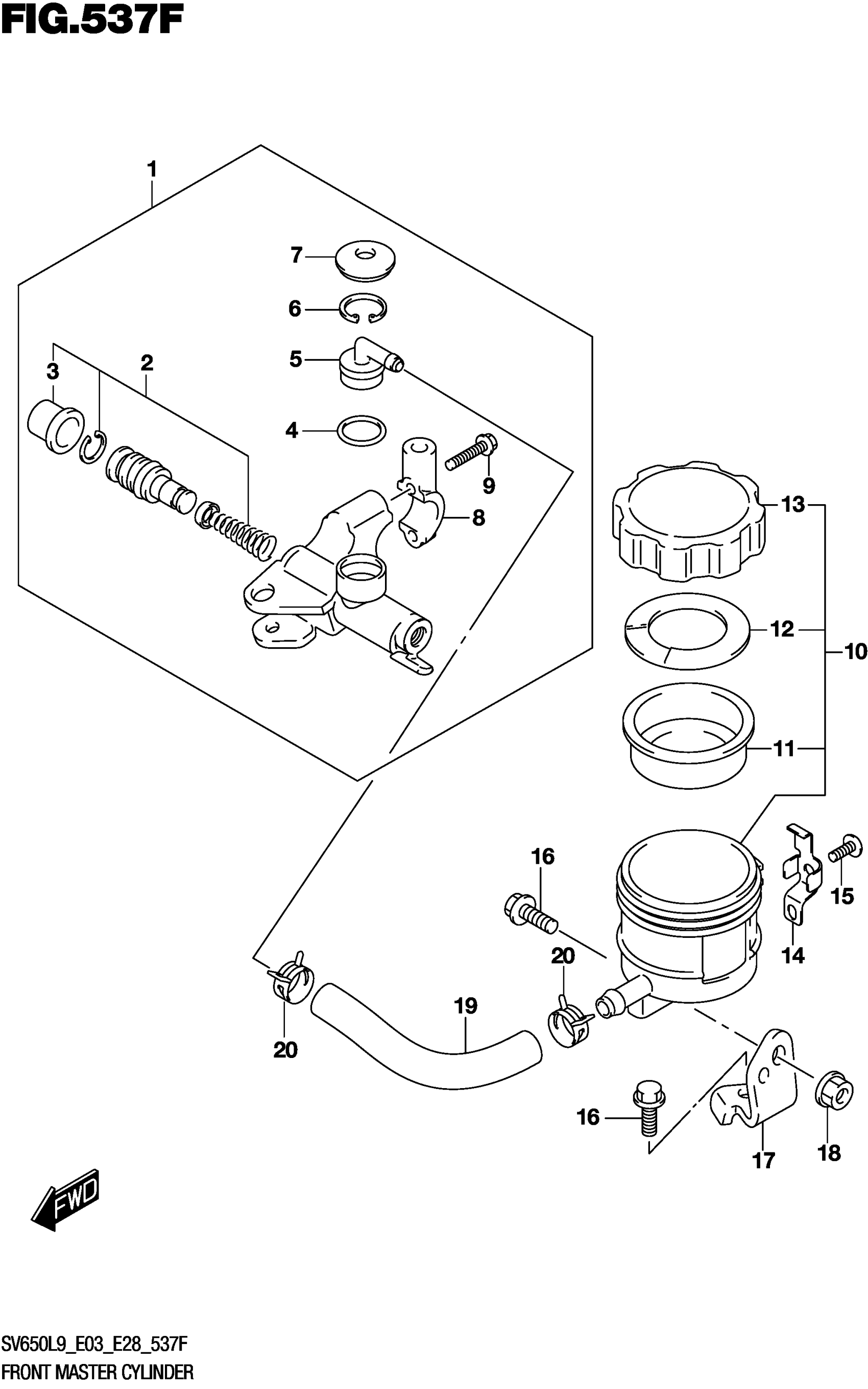

Suzuki SV650AL9 (2019) FRONT MASTER CYLINDER (SV650XAL9 E33) Diagram
