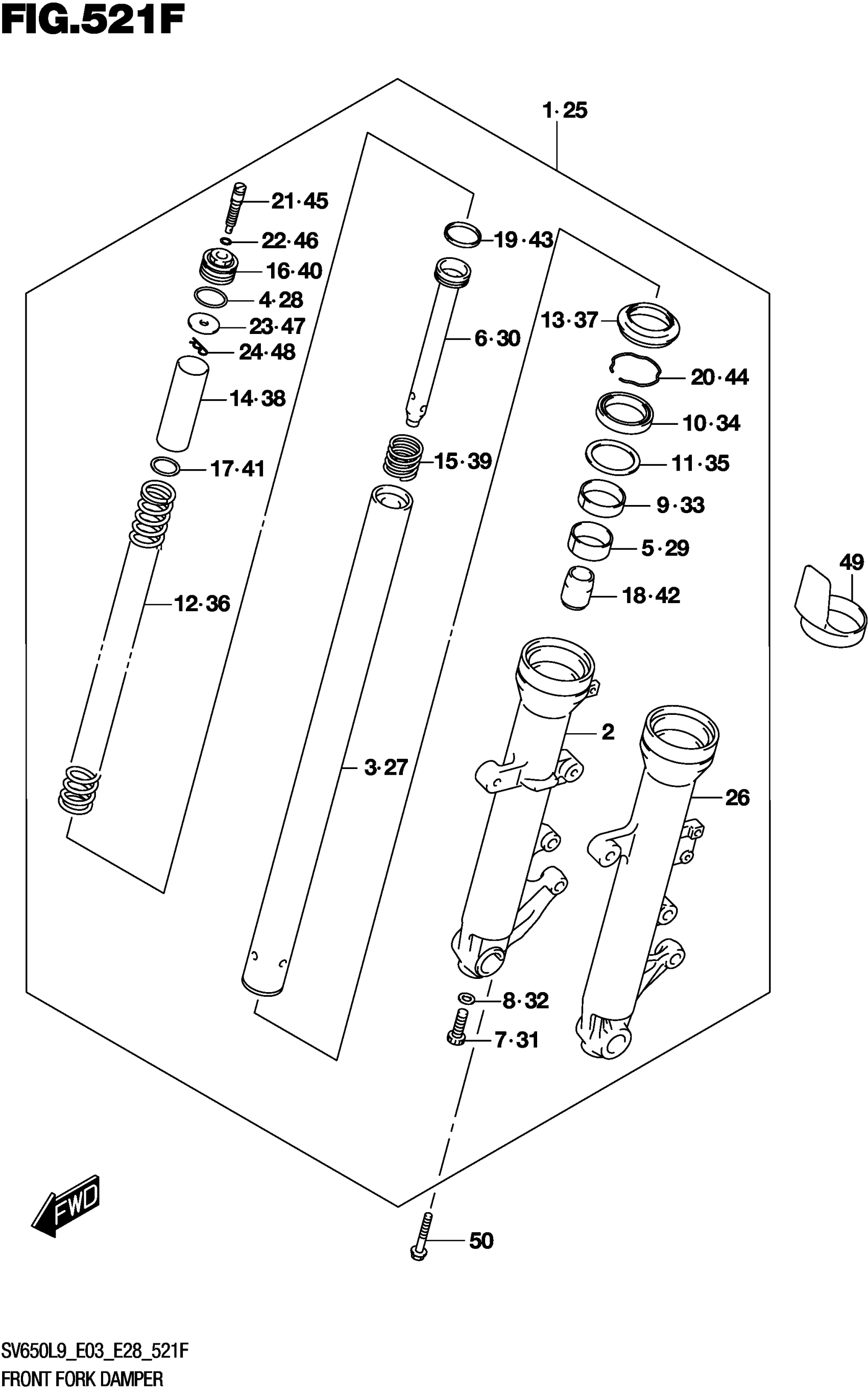

Suzuki SV650AL9 (2019) FRONT FORK DAMPER (SV650XAL9 E33) Diagram

#

Description
Price

1

DAMPER ASSY,FR,R (BLACK)

51103-18K10-291

$815.17

1

DAMPER ASSY,FR,R (BLACK)

51103-18K10-291

$815.17

2

.TUBE,OUTER RH (BLACK)

51130-18K00-291

$404.42

3

.TUBE,INNER

51110-18K00

$294.62

4

.O-RING

51117-12C00

$3.89

5

.BUSH,SLIDE

51121-44H00

$22.80

6

.CYLINDER

51146-17G80

$86.30

7

.BOLT (8X18)

51147-06F10

$5.98

8

.GASKET (8.2X13X1.5)

51148-36011

$3.56

9

.BUSH,GUIDE

51152-01H10

$18.25

10

.SEAL,OIL

51153-01H10

$26.91

11

.SPACER,SEAL

51168-38B00

$6.49

12

.SPRING,FRONT

51171-18K10

$29.45

13

.SEAL,DUST

51173-01H00

$11.64

14

.COLLAR,SPRING

51176-18K00

$7.27

15

.SPRING,REBOUND

51177-17G50

Unavailable

16

.BOLT,FORK

51189-12C00

Unavailable

17

.JOINT,SPRING

51192-19C00

$5.02

18

.PIECE,OIL LOCK

51195-48B31

$30.22

19

.RING,PISTON

51196-12C00

$8.42

20

.RING,STOPPER

51556-38B00

$7.22

21

.ADJUSTER BOLT,SPRING

51185-17G00

Unavailable

22

.O RING,STOPPER

51187-32B00

Unavailable

23

.SEAT,SPRING

51186-12C00

$7.53

24

.PIN,SEAT SPRING

51188-32B00

Unavailable

25

DAMPER ASSY,FR,L (BLACK)

51104-18K10-291

$815.17

25

DAMPER ASSY,FR,L (BLACK)

51104-18K10-291

$815.17

26

.TUBE,OUTER LH (BLACK)

51140-18K00-291

$419.83

27

.TUBE,INNER

51110-18K00

$294.62

28

.O-RING

51117-12C00

$3.89

29

.BUSH,SLIDE

51121-44H00

$22.80

30

.CYLINDER

51146-17G80

$86.30

31

.BOLT (8X18)

51147-06F10

$5.98

32

.GASKET (8.2X13X1.5)

51148-36011

$3.56

33

.BUSH,GUIDE

51152-01H10

$18.25

34

.SEAL,OIL

51153-01H10

$26.91

35

.SPACER,SEAL

51168-38B00

$6.49

36

.SPRING,FRONT

51171-18K10

$29.45

37

.SEAL,DUST

51173-01H00

$11.64

38

.COLLAR,SPRING

51176-18K00

$7.27

39

.SPRING,REBOUND

51177-17G50

Unavailable

40

.BOLT,FORK

51189-12C00

Unavailable

41

.JOINT,SPRING

51192-19C00

$5.02

42

.PIECE,OIL LOCK

51195-48B31

$30.22

43

.RING,PISTON

51196-12C00

$8.42

44

.RING,STOPPER

51556-38B00

$7.22

45

.ADJUSTER BOLT,SPRING

51185-17G00

Unavailable

46

.O RING,STOPPER

51187-32B00

Unavailable

47

.SEAT,SPRING

51186-12C00

$7.53

48

.PIN,SEAT SPRING

51188-32B00

Unavailable

49

PROTECTOR

51201-32F00

$20.95

50

BOLT | RH This part replaces 51321-10F00.

07130-08307

$3.89
