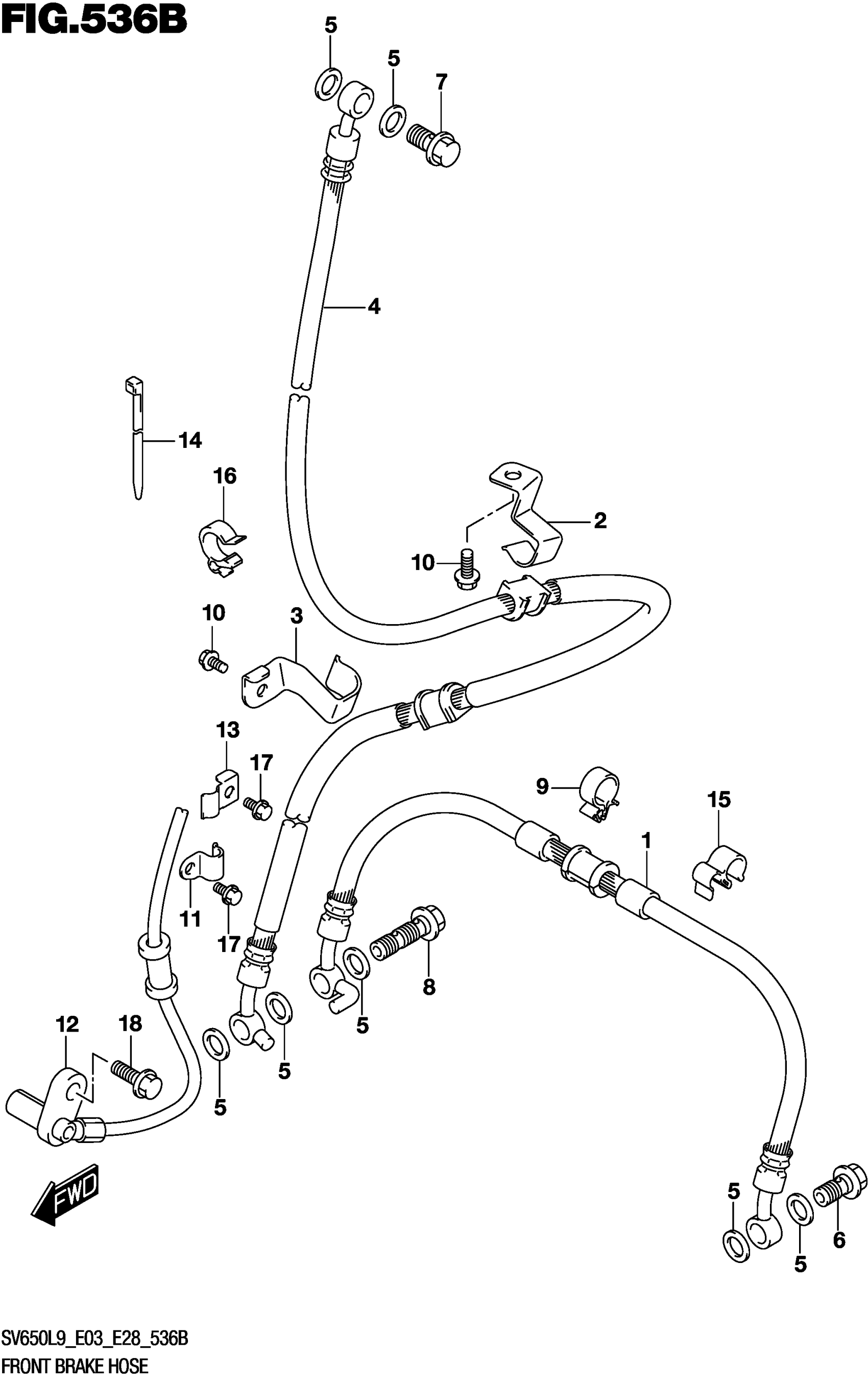

Suzuki SV650AL9 (2019) FRONT BRAKE HOSE (SV650L9 E33) Diagram

#

Description
Price

1

HOSE,FR BK CLPR TO CLPR This part replaces 59240-18K20.

59240-18K21

$50.37

2

CLAMP,FR BRAKE HOSE NO.1

59261-44H00

Unavailable

3

CLAMP,FR BRAKE HOSE NO.2

59263-44H10

$9.88

4

HOSE,FR BK MASTER TO CLPR

59480-18K20

$82.68

5

WASHER (10X15X1.5)

09161-10009

$1.84

6

UNION (10X1.25X22)

09360-10062

$6.43

7

UNION This part replaces 09360-10042.

09360-10062

$6.43

8

UNION (10X1.25X36)

09360-10064

$6.43

9

CLAMP

09403-16412

$3.37

10

BOLT (6X12)

09103-06525

$1.49

11

CLAMP,ABS SENSOR FR

55731-15H00

$4.83

12

SENSOR,FR WHEEL SPEED

55710-18K30

$217.78

13

CLAMP,SENSOR LEAD FR NO.3

55733-44H00

Unavailable

14

CLAMP (L:145)

09407-14407

$3.57

15

CLAMP

09408-00266

$2.51

16

CLAMP

09408-00307

$2.97

17

BOLT (6X12)

09103-06525

$1.49

18

BOLT (6X16)

09103-06526

$1.71
