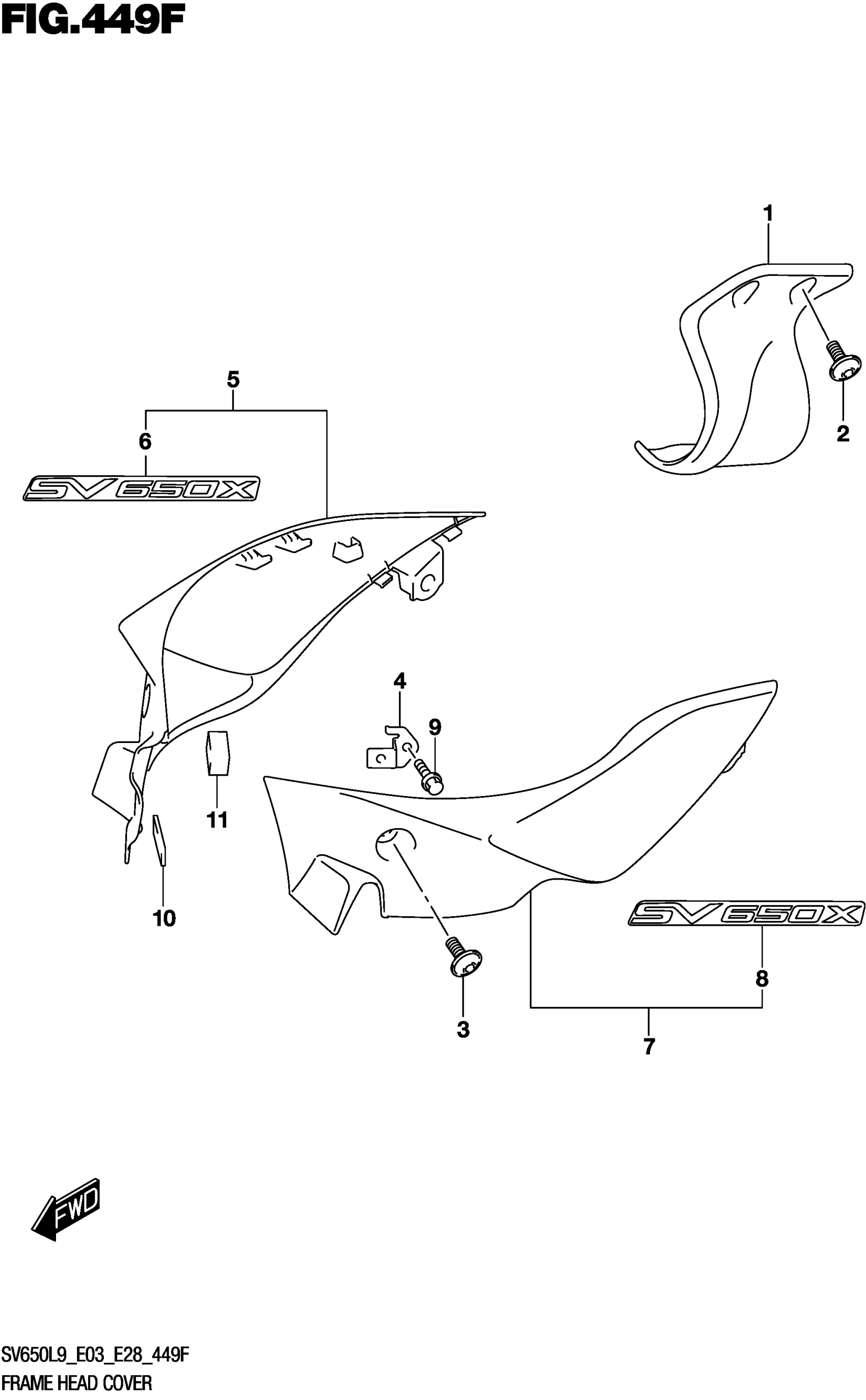

Suzuki SV650AL9 (2019) FRAME HEAD COVER (SV650XAL9 E33) Diagram

#

Description
Price

1

COVER,FRAME BODY RR LH

47543-44H00

$24.08

2

BOLT (5X13)

09139-05074

$2.61

3

BOLT (5X13)

09139-05074

$2.61

4

BRACKET,FRAME COVER

47115-18K00

$12.83

5

COVER, FRAME UPPER RH (WHITE)

47120-18K10-YWW

$107.65

6

(BLACK/RED)

68135-18K10-JSP

Unavailable

6

(BLACK/RED)

68135-18K10-JSP

Unavailable

7

COVER, FRAME UPPER LH (WHITE)

47220-18K10-YWW

$116.27

8

.TAPE, FRAME COVER LH

68145-18K10-JSP

Unavailable

8

.TAPE, FRAME COVER LH

68145-18K10-JSP

Unavailable

9

BOLT

01550-0510A

$2.43

10

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.99

11

.CUSHION (20X30X15)

17798-29E30

$7.63
