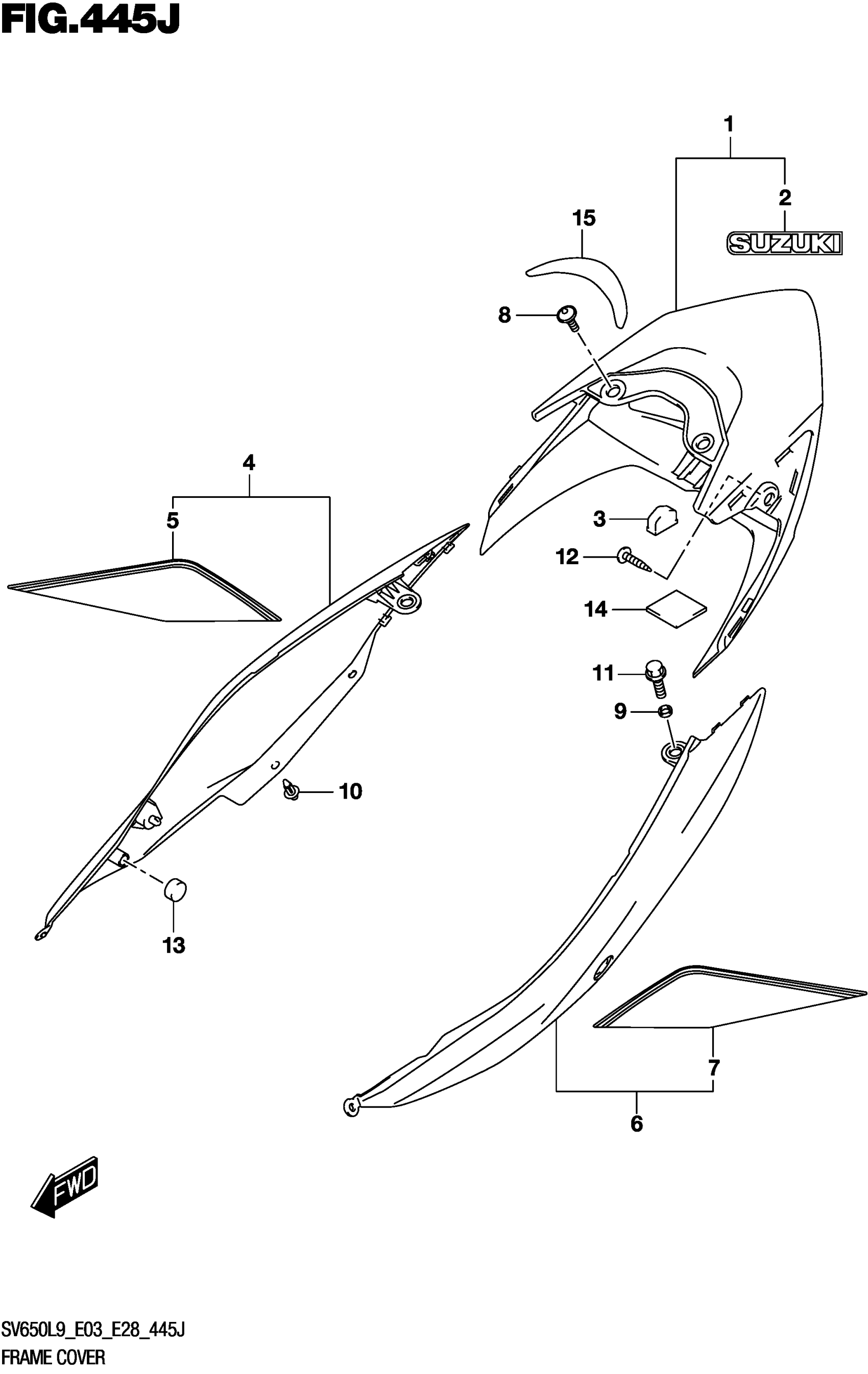

Suzuki SV650AL9 (2019) FRAME COVER (SV650XAL9 E28) Diagram

#

Description
Price

1

COVER,FRAME RR CTR (BLACK) This part replaces 47310-18KA0-YVB.

47310-18KA1-YVB

$189.78

2

.EMBLEM, "SUZUKI"

68171-28H10-APT

$8.27

2

.EMBLEM, "SUZUKI"

68171-28H10-APT

$8.27

3

CUSHION,FRAME COVER CTR

47315-18K00

$12.73

4

COVER,FRAME REA This part replaces 47410-18KC0-YWW.

47410-18KC1-YWW

$119.27

5

.TAPE SET, FRAME COVER RH

68135-18K30-BQ4

Unavailable

6

COVER,FRAME REA This part replaces 47510-18KC0-YWW.

47510-18KC1-YWW

$111.67

7

.TAPE SET, FRAME COVER LH

68145-18K30-BQ4

Unavailable

8

BOLT (5X13)

09139-05074

$2.61

9

SPACER (8.5X12X2.5)

09180-08052

Unavailable

10

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

11

BOLT (8X12)

01550-0812A

$2.32

12

SCREW

03541-0510A

$1.49

13

CUSHION (14X20X9) This part replaces 09329-14002.

09329-14003

$2.72

14

PROTECTOR (50X50X5) | CUT AS REQUIRED

33652-20C00

$2.99

15

TAPE,FRAME COVER RR CTR

47312-18K00

$11.53
