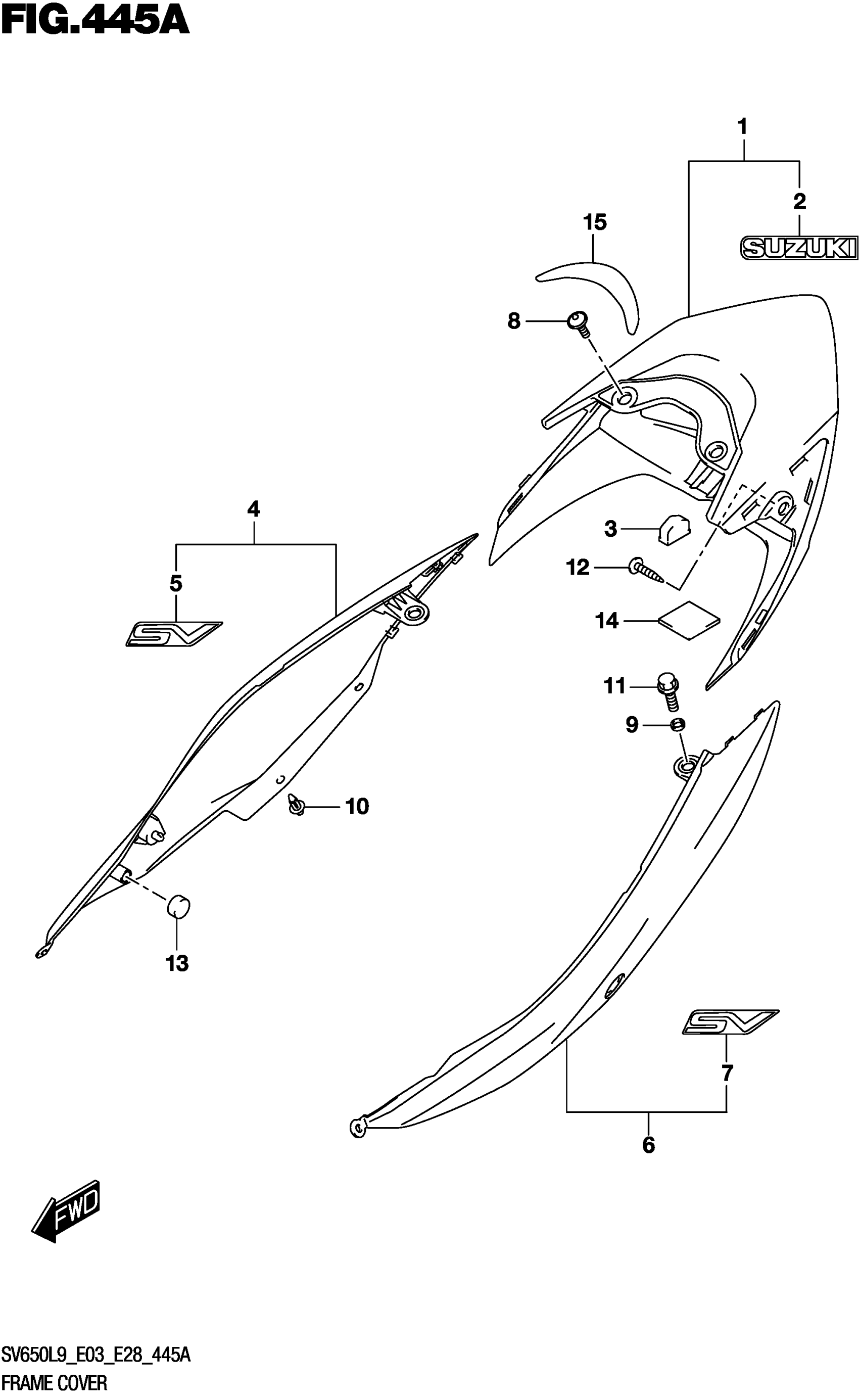

Suzuki SV650AL9 (2019) FRAME COVER (SV650L9 E03) (FOR YVB,QEB) Diagram

#

Description
Price

1

COVER,FRAME RR CTR (BLACK) This part replaces 47310-18K00-4TX.

47310-18K01-4TX

$205.37

2

.EMBLEM, "SUZUKI" (BLACK)

68171-28H10-KGL

$9.27

3

CUSHION,FRAME COVER CTR

47315-18K00

$14.37

4-1

COVER,FRAME REA This part replaces 47410-18K20-QEB.

47410-18K21-QEB

$98.23

4-2

COVER,FRAME REAR RH (BLACK) This part replaces 47410-18K20-YVB.

47410-18K21-YVB

$125.43

5-1

.EMBLEM, "SV" (BLACK) | FOR QEB

68111-18K00-YVB

$16.88

5-2

.EMBLEM, "SV" (GRAY) | FOR YVB

68111-18K00-YLF

$17.33

6-1

COVER,FRAME REA This part replaces 47510-18K20-QEB.

47510-18K21-QEB

$104.68

6-2

COVER,FRAME REAR LH (BLACK) This part replaces 47510-18K20-YVB.

47510-18K21-YVB

$123.10

7-1

.EMBLEM, "SV" (BLACK) | FOR QEB

68111-18K00-YVB

$16.88

7-2

.EMBLEM, "SV" (GRAY) | FOR YVB

68111-18K00-YLF

$17.33

8

BOLT (5X13)

09139-05074

$2.58

9

SPACER (8.5X12X2.5)

09180-08052

Unavailable

10

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

11

BOLT (8X12)

01550-0812A

$2.31

12

SCREW

03541-0510A

$1.43

13

CUSHION (14X20X9) This part replaces 09329-14002.

09329-14003

$2.74

14

PROTECTOR (50X50X5) | CUT AS REQUIRED

33652-20C00

$2.80

15

TAPE,FRAME COVER RR CTR

47312-18K00

$13.02
