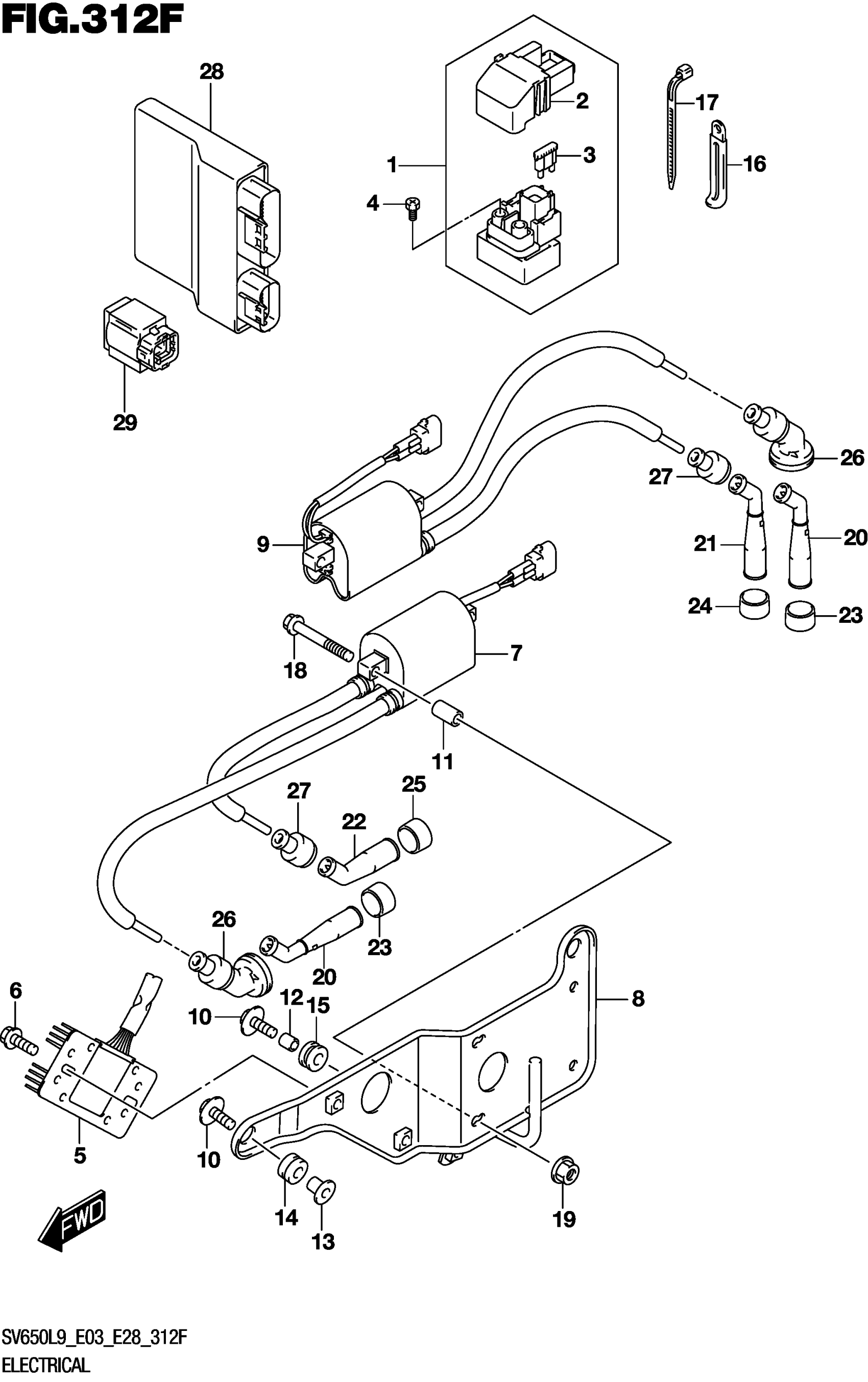

Suzuki SV650AL9 (2019) ELECTRICAL (SV650XAL9 E33) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

$67.32

2

.COVER

31861-47E00

$16.15

3

.FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-47H00

$263.17

6

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

7

COIL ASSY,IGNITION FRONT

33410-18K00

$132.52

8

BRACKET,IGN COIL REAR

33414-44H01

Unavailable

9

COIL ASSY,IGNITION REAR

33420-18K00

$132.52

10

BOLT (6X20)

09116-06188

$2.16

11

SPACER (6.4X10X18)

09180-06195

$3.68

12

SPACER (6.5X9X9)

09180-06263

$2.03

13

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

14

CUSHION (8X18X10)

09320-08501

$3.23

15

CUSHION (9X18X9.5)

09320-09016

$1.97

16

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

17

CLAMP (L:165)

09407-18402

$2.19

18

BOLT (6X40)

09103-06531

$2.30

19

NUT (6X12)

08316-1006A

$2.19

20

CAP ASSY,SPARK PLUG

33510-17G00

$33.46

21

CAP ASSY,SPARK PLUG

33510-17G00

$33.46

22

CAP ASSY,SPARK PLUG

33510-20E00

$34.60

23

SEAL,SPARK PLUG

33541-23E10

$6.54

24

SEAL,SPARK PLUG

33541-23E10

$6.54

25

SEAL,SPARK PLUG

33541-47D00

$7.83

26

SEAL,HIGH TENSION CORD CTR

33542-17G01

$8.12

27

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

28

CONTROL UNIT,FI

32920-18K11

$1,013.23

29

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92
