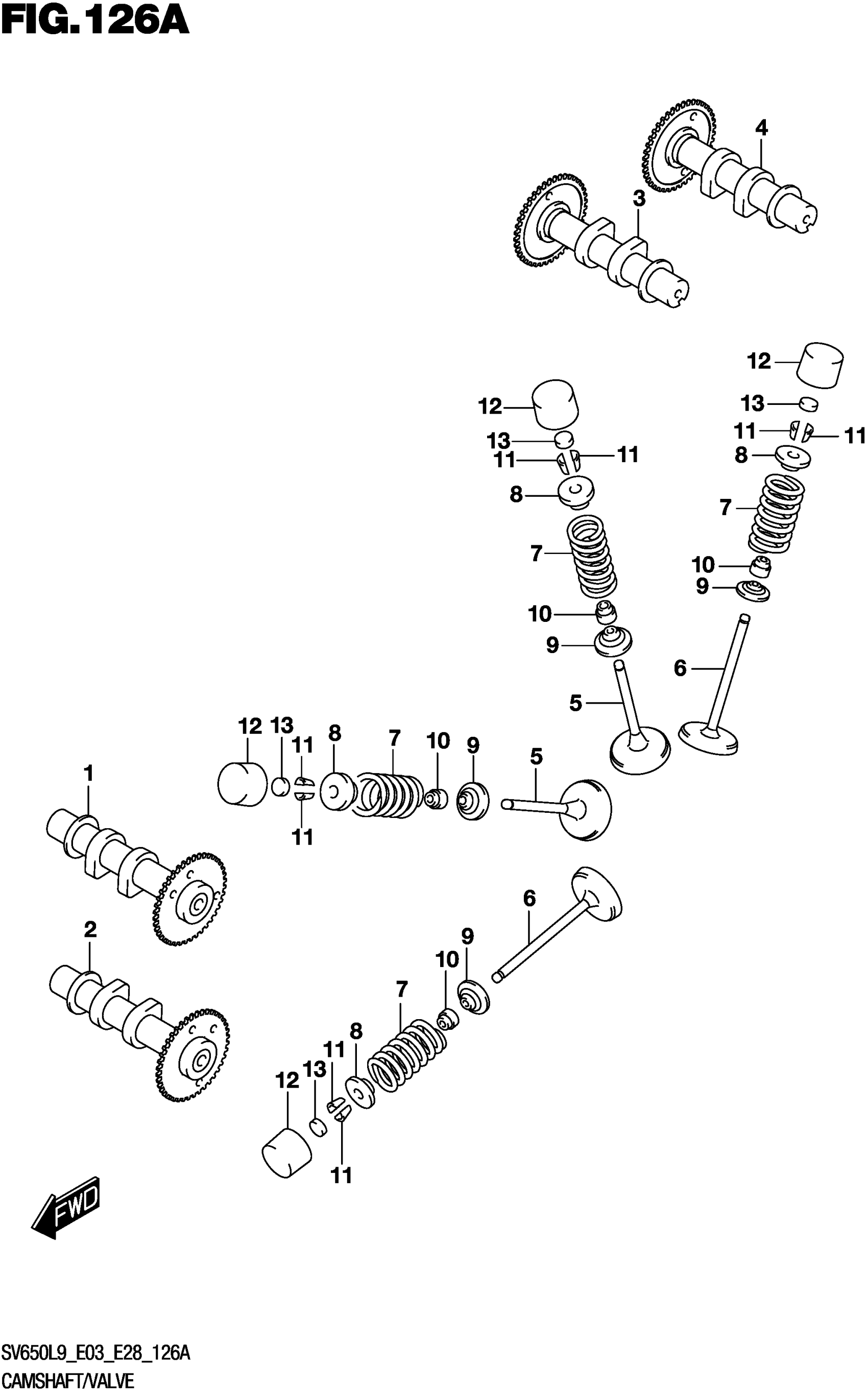

Suzuki SV650AL9 (2019) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT,INTAKE FR

12710-44H00

$308.00

2

CAMSHAFT,EXHAUST FR (NT:36)

12720-44H00

Unavailable

3

CAMSHAFT,INTAKE RR

12730-44H00

Unavailable

4

CAMSHAFT,EXHAUST RR (NT:36)

12740-44H00

Unavailable

5

VALVE,INTAKE

12911-18H00

$46.80

6

VALVE,EXHAUST

12912-20F00

$51.87

7

SPRING,VALVE

12921-44H00

Unavailable

8

RETAINER,VALVE SPRING

12931-17E01

$16.13

9

SEAT,VALVE SPRING

12933-17E00

$6.89

10

SEAL,OIL (4.5X10X8)

09289-04002

$6.49

11

COTTER,VALVE

12932-32C00

$2.03

12

TAPPET This part replaces 12891-17E00.

12891-47H00

$68.43

13-1

SHIM,TAPPET (T:1.20) | T:1.20

12892-05C00-120

$11.60

13-2

SHIM,TAPPET (T:1.25) | T:1.25

12892-05C00-125

$11.83

13-3

SHIM,TAPPET (T:1.30) | T:1.30

12892-05C00-130

$10.06

13-4

SHIM,TAPPET (T:1.35) | T:1.35

12892-05C00-135

$10.06

13-5

SHIM,TAPPET (T:1.40) | T:1.40

12892-05C00-140

$11.83

13-6

SHIM,TAPPET (T:1.45) | T:1.45

12892-05C00-145

$9.87

13-7

SHIM,TAPPET (T:1.50) | T:1.50

12892-05C00-150

$11.83

13-8

SHIM,TAPPET (T:1.55) | T:1.55

12892-05C00-155

$9.69

13-9

SHIM,TAPPET (T:1.60) | T:1.60

12892-05C00-160

$9.69

13-10

SHIM,TAPPET (T:1.65) | T:1.65

12892-05C00-165

$9.69

13-11

SHIM,TAPPET (T:1.70) | T:1.70

12892-05C00-170

$11.60

13-12

SHIM,TAPPET (T:1.75) | T:1.75

12892-05C00-175

$9.87

13-13

SHIM,TAPPET (T:1.80) | T:1.80

12892-05C00-180

$11.38

13-14

SHIM,TAPPET (T:1.85) | T:1.85

12892-05C00-185

$11.83

13-15

SHIM,TAPPET (T:1.90) | T:1.90

12892-05C00-190

$11.83

13-16

SHIM,TAPPET (T:1.95) | T:1.95

12892-05C00-195

$11.83

13-17

SHIM,TAPPET (T:2.00) | T:2.00

12892-05C00-200

$11.60

13-18

SHIM,TAPPET (T:2.05) | T:2.05

12892-05C00-205

$11.83

13-19

SHIM,TAPPET (T:2.10) | T:2.10

12892-05C00-210

$11.83

13-20

SHIM,TAPPET (T:2.15) | T:2.15

12892-05C00-215

$11.83

13-21

SHIM,TAPPET (T:2.20) | T:2.20

12892-05C00-220

$11.83

14

SHIM SET,TAPPET (5PCS.EACH) | OPT

12800-05830

$1,211.58

14

SHIM SET,TAPPET (5PCS.EACH) | NOT ILLUSTRATED

12800-05830

$1,211.58

14

SHIM SET,TAPPET (5PCS.EACH)

12800-05830

$1,211.58

15

.CASE,TAPPET SHIM | OPT

99000-69491

Unavailable

15

.CASE,TAPPET SHIM | NOT ILLUSTRATED

99000-69491

Unavailable
