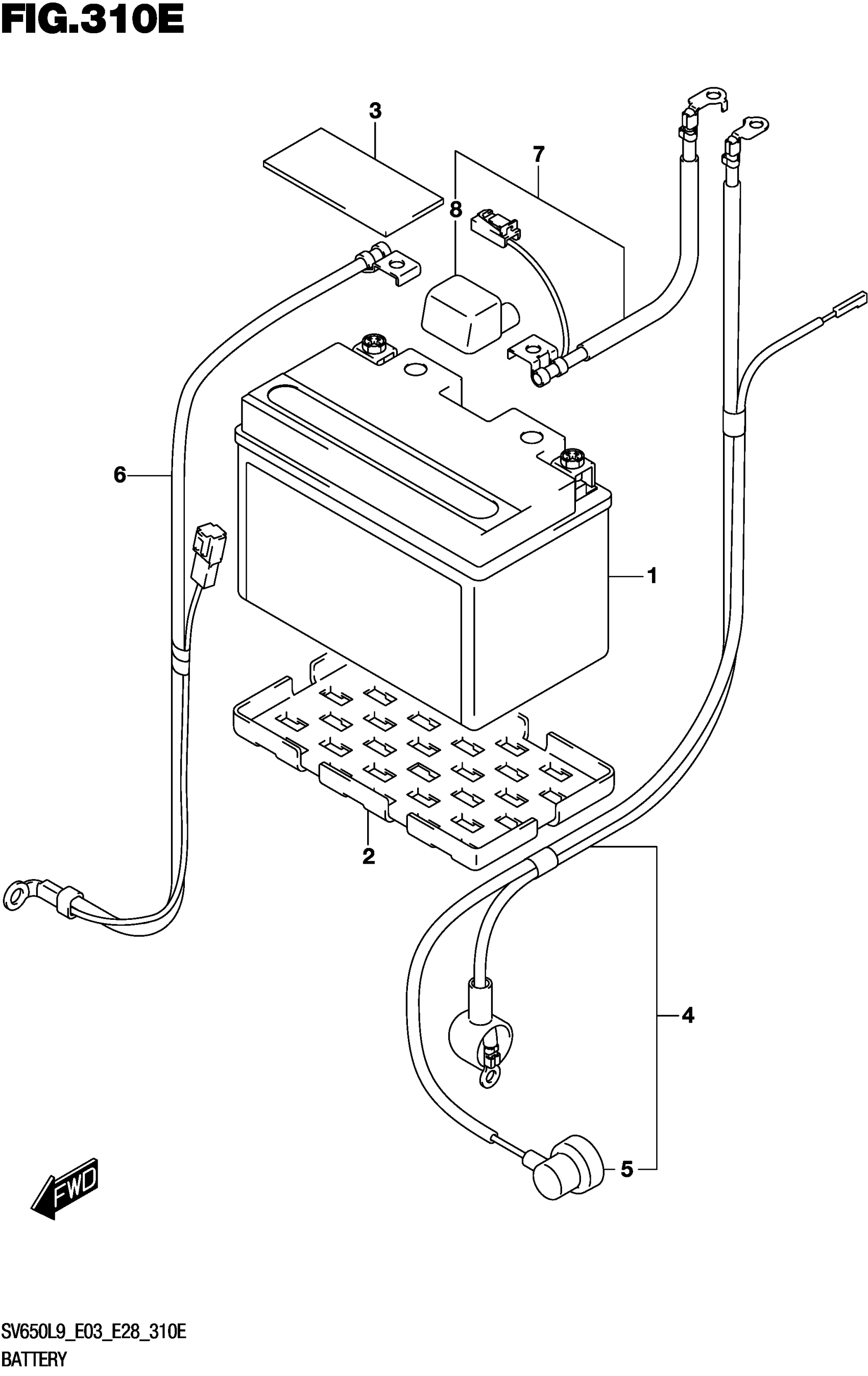

Suzuki SV650AL9 (2019) BATTERY (SV650XAL9 E28) Diagram

#

Description

Price

1

BATTERY ASSY (FT12A-BS,12V10AH) This part replaces 33630-14G02.

33610-14G11

$120.22

1

BATTERY ASSY (FT12A-BS,12V10AH) This part replaces 33630-14G02.

33610-14G11

$120.22

2

PROTECTOR,BATTERY

33652-16G00

$11.95

3

PROTECTOR (40X85X3)

33652-28C00

Unavailable

4

WIRE,STARTER MOTOR LEAD

33810-18K00

Unavailable

5

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable

6

WIRE,BATTERY MINUS LEAD

33860-18K00

$37.20

7

WIRE,BATTERY PLUS LEAD This part replaces 33820-18K10.

33820-18K11

$30.05

8

.CAP,BATTERY PLUS

33624-16G00

$5.78
