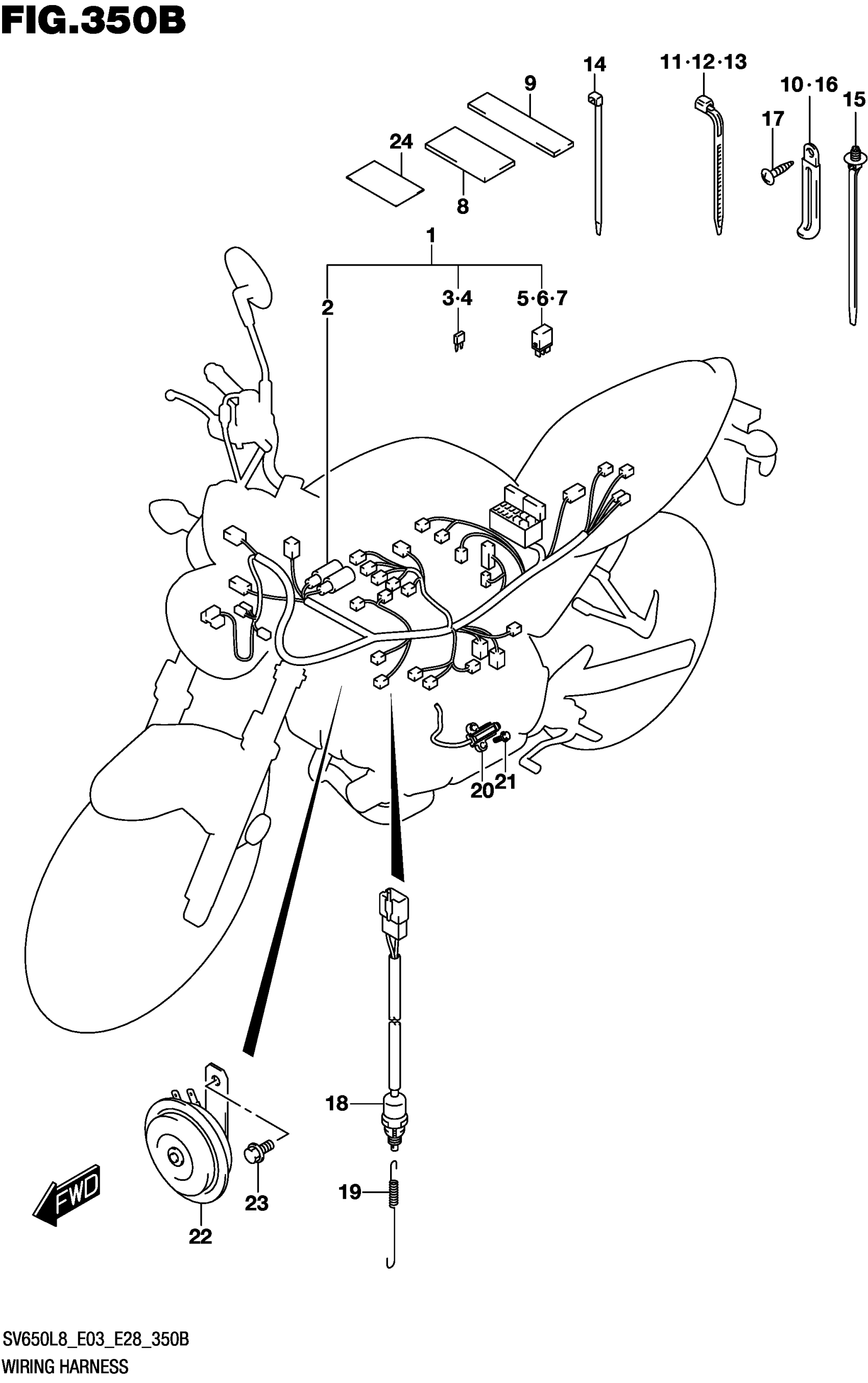

Suzuki SV650AL8 (2018) WIRING HARNESS (SV650L8 E33) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-18K10

Unavailable

2

.COVER,SPEEDOMETER COUPLER

36618-35F00

$11.37

3

.FUSE (10A)

09481-10504

$2.12

4

.FUSE (15A)

09481-15504

$2.57

5

.RELAY ASSY | FOR FUEL PUMP

38860-76F01

$32.41

6

.RELAY ASSY | FOR FAN MOTOR

38860-76F01

$32.41

7

.RELAY ASSY | FOR SIDE STAND

38860-76F01

$32.41

8

PROTECTOR (30X60X3)

36920-08D00

Unavailable

9

PROTECTOR (30X70)

94474-22D00

Unavailable

10

CLAMP (L:45)

09404-06429

$1.88

11

CLAMP (L:125)

09407-14403

$2.31

12

CLAMP (L:165)

09407-18402

$2.29

13

CLAMP (L:190)

09407-19401

$3.32

14

CLAMP (L:145)

09407-14407

$2.84

15

CLAMP (L:170)

09407-17403

$4.79

16

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.81

17

SCREW

03541-0412A

$1.41

18

SWITCH ASSY,STOP LAMP

37740-44H01

$22.47

19

SPRING

09443-06016

$3.58

20

SWITCH ASSY,SIDE STAND This part replaces 37840-25D00.

37840-25D02

$68.13

21

BOLT (6X20)

01550-0620A

$2.01

22

HORN ASSY

38500-18K00

Unavailable

23

BOLT (8X12)

01550-0812A

$2.38

24

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.42
