2018 Suzuki SV650AL8 Battery Diagram

← All diagrams

Find the part on the Battery diagram for your 2018 Suzuki SV650AL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

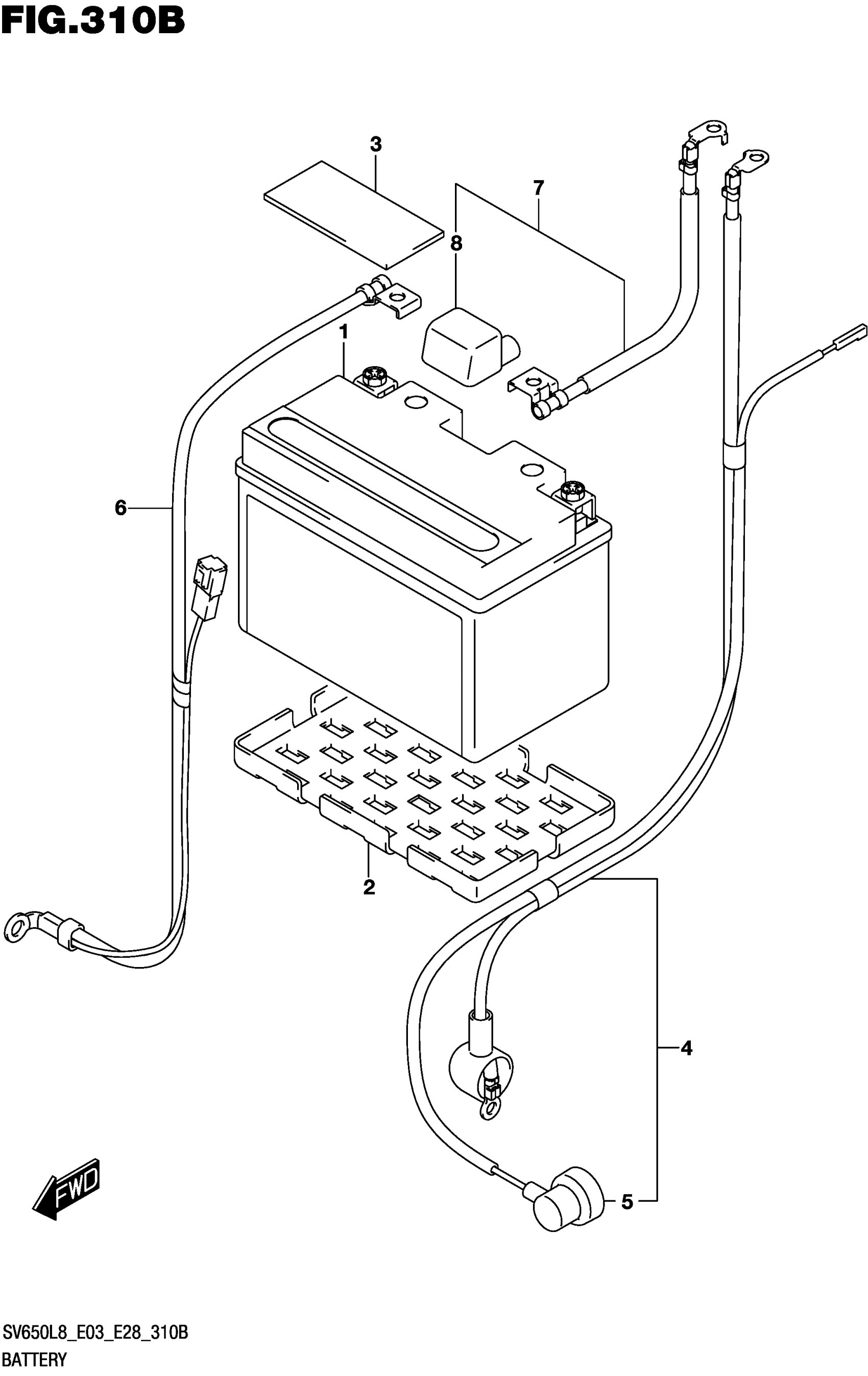

2018 Suzuki SV650AL8 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BATTERY ASSY | (FT12A-BS,12V10AH)

33630-14G01

—
Out of stock

2

PROTECTOR,BATTERY

33652-16G00

1
Out of stock

3

PROTECTOR (40X85X3)

33652-28C00

1
Out of stock

4

WIRE,STARTER MOTOR LEAD

33810-18K00

1
Out of stock

5

.CAP,OIL PRESSURE SWITCH

36618-31J00

1
Out of stock

6

1

$41.98

In stock

7

WIRE,BATTERY PLUS LEAD

33820-18K00

1
Out of stock

8

.CAP,BATTERY PLUS

33624-16G00

1

$7.67

In stock
