2018 Suzuki SV650AL8 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2018 Suzuki SV650AL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

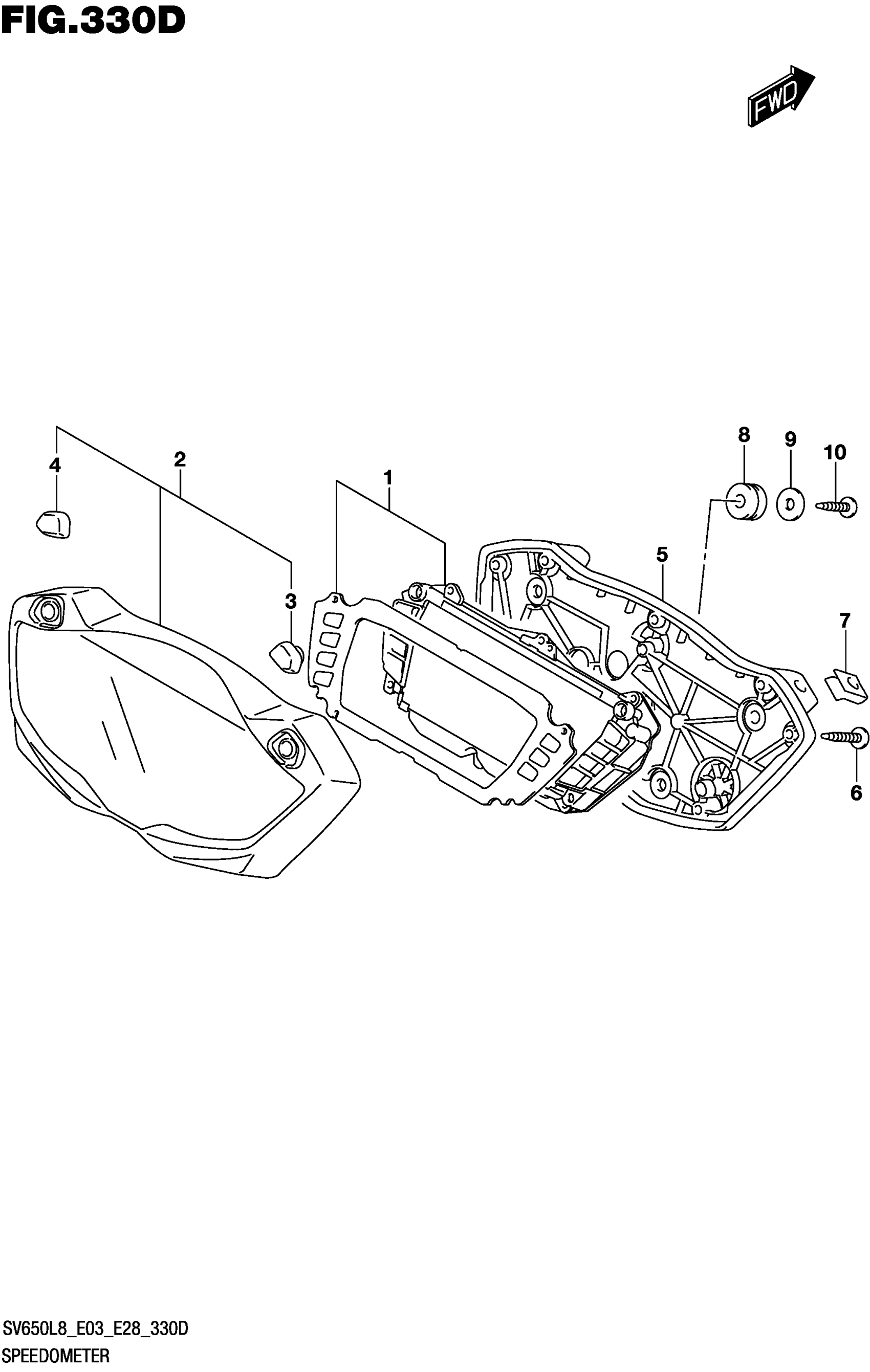

2018 Suzuki SV650AL8 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER

34120-18K11

1
Out of stock

2

CASE ASSY,UPPER

34150-04K01

1
Out of stock

3

.SWITCH RUBBER RH

34124-04K00

1
Out of stock

4

.SWITCH RUBBER LH

34124-04K10

1
Out of stock

5

CASE ASSY,LOWER

34111-04K00

1
Out of stock

6

SCREW

34183-10C00

8
Out of stock

7

NUT (M5)

09148-05052

2
Out of stock

8

CUSHION,SPEEDOMETER This part replaces 34189-08J00.

34189-08J01

3
Out of stock

9

WASHER (4.5X16X1.2)

09160-04026

1
Out of stock

10

SCREW

03541-0416A

1
Out of stock
